Attach Cable Assembly to Platter

The following instructions detail how to attach the bottom of the helix cable assembly to the
platter.

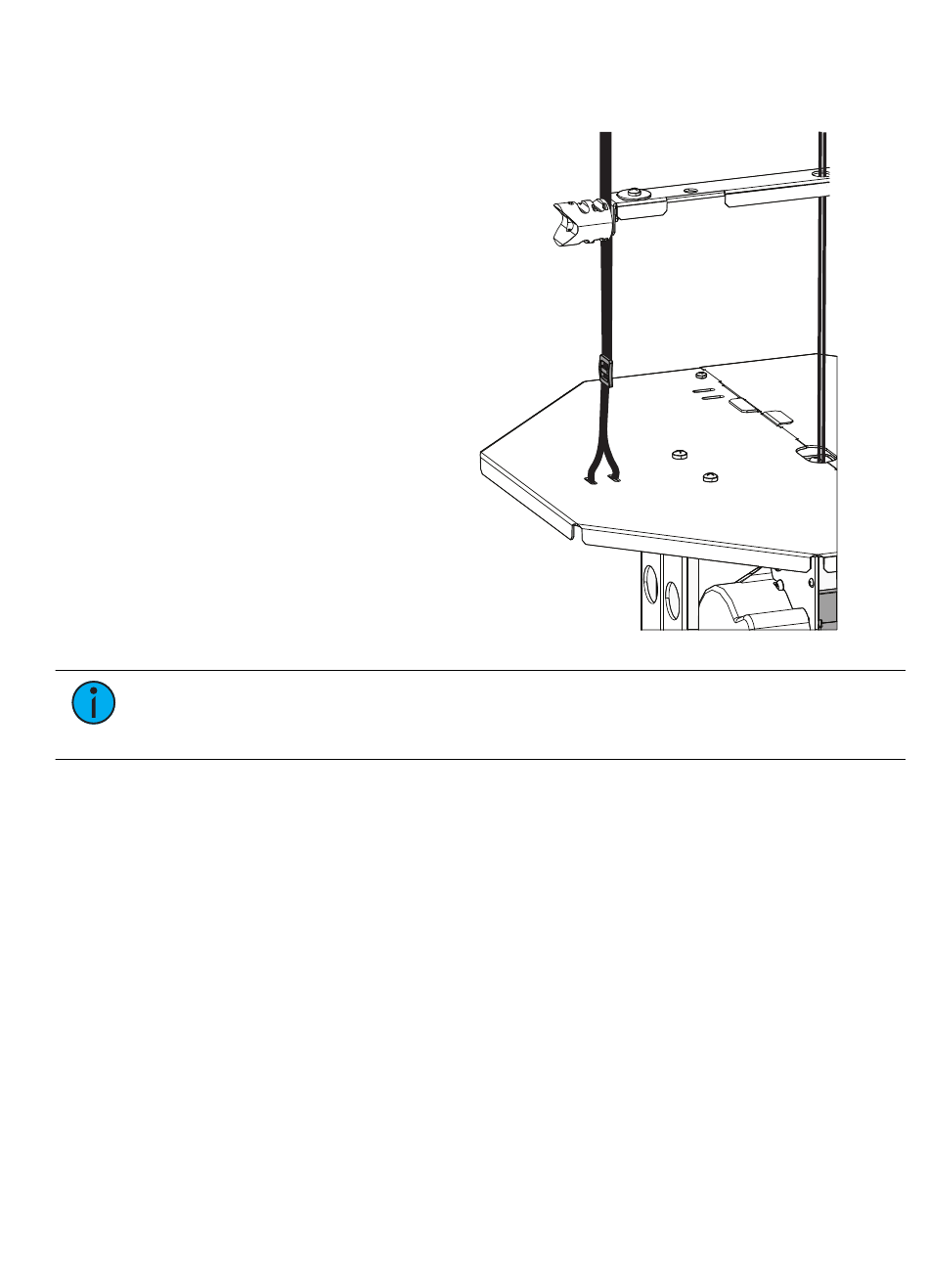

1. Thread the buckles onto
the nylon webbing straps
that extend beyond the
bottommost rib.
2. Loop the nylon webbing
through the slots on the
platter.
3. Terminate the ends of the
loops in the buckles.
Note:
bottommost rib. This mark should be approximately at the point where the webbing
loops through the platter.
Finalize Hoist and Cable Management Installation
There is a mark on the nylon webbing that is 457 mm (18 in) below the
Bottommost rib
Mark on webbing
rests approximately
where webbing loops
through platter
