Setting Of Dipswitch P8 - SMC Networks ITV1000-CC Series Operation Manual

Setting of dipswitch
① Turn off the power supply while setting the switch.
② If there is foreign matter or water droplets around the switch cover, clean it off
before opening the cover.

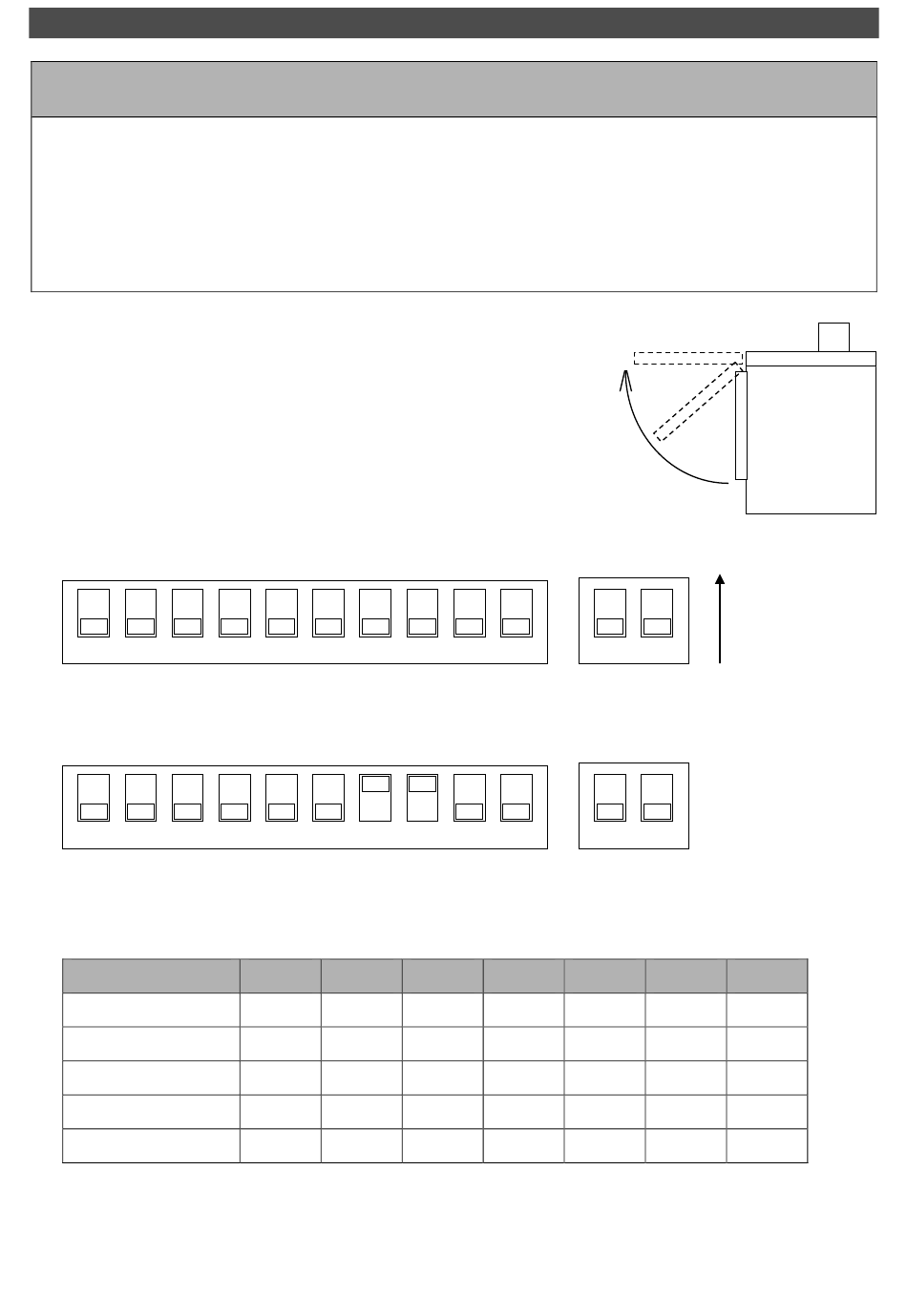

③ Refer to the drawing below for the setting at the time of shipment from the
factory. Confirm the condition of switches before use and reset if necessary.
■Setting procedure
①Loosen the screws of the switch cover.
②Open the cover from the bottom upwards.
(See drawing)
③Set switches according to the following procedure.
④After setting the switch, tighten the switch cover
in the reverse order of the above procedure.
(Tightening torque 0.6 to 0.8Nm)
■Dipswitch
1 2 3
SW40 SW20 SW10 SW08 SW04 SW02 SW01 BS4 BS2 BS1
■Setting at the time of shipment
1 2 3
Node address: 1 Baud rate: 10Mbps
Hold/Clear: Clear Terminating resistor: disable
■Setting of node address
Node address
1
2
3
:
64
△
！
4 5 6 7
4 5 6 7
SW40 SW20 SW10 SW08 SW04 SW02 SW01
OFF OFF
OFF OFF
OFF OFF
: :
ON ON
CAUTION
8 9 10
Hold/Clear Terminating resistor
8 9 10
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
: :
OFF OFF ON
- 8 -
