User's Guide

TPS650320-Q1 EVM User's Guide

Introduction.............................................................................................................................................................................2

2 EVM

Configurations................................................................................................................................................................2

2.1

Requirements.....................................................................................................................................................................2

2.2 Operation Instructions........................................................................................................................................................

2.3 Configuring the USB to I

2.4 Regulator Input Supplies and

2.5 Selecting the Logic Supply

3 Test

Points...............................................................................................................................................................................6

3.1 Voltage Test

Points.............................................................................................................................................................6

4 Graphical User Interface........................................................................................................................................................

4.1 TPS650320-Q1 EVM Debugging.......................................................................................................................................

4.2 Navigating the

GUI...........................................................................................................................................................10

4.3 Re-Program

PMIC............................................................................................................................................................15

4.4 In-Circuit Programming....................................................................................................................................................

5 Typical Performance Plots...................................................................................................................................................

5.1 Power Sequence

Plots.....................................................................................................................................................18

5.2 Load Transient Plots........................................................................................................................................................

5.3 Output Voltage Ripple Plots.............................................................................................................................................

5.4 Efficiency Plots.................................................................................................................................................................

5.5 LDO Output

Noise............................................................................................................................................................21

6 TPS650320-Q1 EVM Schematic...........................................................................................................................................

7 TPS650320-Q1 EVM PCB

8 TPS650320-Q1 EVM Bill of Materials..................................................................................................................................

Trademarks

Windows

are registered trademarks of Microsoft Corporation.

macOS

and Mac

are registered trademarks of Apple Inc.

Linux

are registered trademarks of Linus Torvalds.

Google Chrome

is a registered trademark of Google LLC.

Mozilla Firefox

is a registered trademark of Mozilla Foundation.

All other trademarks are the property of their respective owners.

SLVUC06 - OCTOBER 2020

Submit Document Feedback

Adapter...................................................................................................................................3

Features..............................................................................................................................3

Voltage....................................................................................................................................5

Layers.........................................................................................................................................23

Table of Contents

TPS650320-Q1 EVM User's Guide

Table of Contents

Need help?

Do you have a question about the TPS650320-Q1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TPS650320-Q1

Page 1: Table Of Contents
5.3 Output Voltage Ripple Plots............................. 5.4 Efficiency Plots................................. 5.5 LDO Output Noise................................21 6 TPS650320-Q1 EVM Schematic............................7 TPS650320-Q1 EVM PCB Layers............................23 8 TPS650320-Q1 EVM Bill of Materials..........................Trademarks Windows ® are registered trademarks of Microsoft Corporation. macOS ® and Mac ®...
Page 2: Introduction
1 Introduction The TPS650320-Q1 device is a highly-integrated PMIC for automotive camera modules. This device combines three step down converters and one low-dropout (LDO) regulator. The BUCK1 step-down converter has an input voltage range up to 18.3 V for connections to power over coax. All converters operate in a forced fixed- frequency PWM mode.
Page 3: Operation Instructions
GPIO 2.4 Regulator Input Supplies and Features The four regulators on the TPS650320-Q1 EVM can be supplied with multiple supplies. The following tables show the possible supply configurations in addition to key specifications and programmable features for each regulator.
Page 4 0.9 V to 1.9 V Under-Voltage Flags (UV) VOUT = 94.5%, 95%, 95.5%, and 96% Spread Spectrum Enable or Disable Sequencing Enable, Dependencies, and Fault RST TPS650320-Q1 EVM User's Guide SLVUC06 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 5: Selecting The Logic Supply Voltage
Pin 7 (PMIC LDO Output Rail) Pin 8 (VIO Input Supply Rail) Pin 9 (Dedicated 3.3 V LDO) Pin 10 (VIO Input Supply Rail) SLVUC06 – OCTOBER 2020 TPS650320-Q1 EVM User's Guide Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 6: Test Points

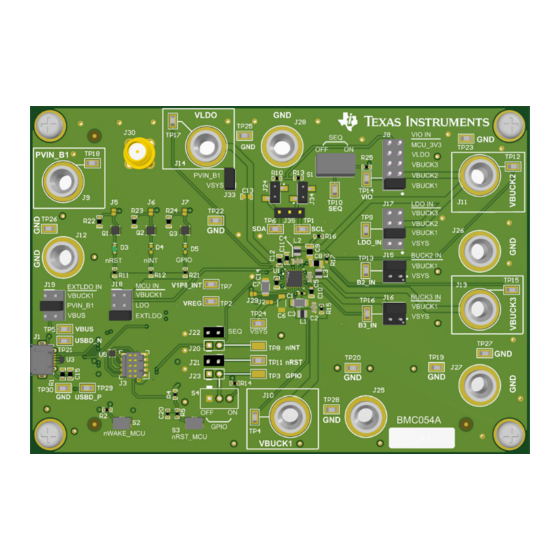

Test Points www.ti.com 3 Test Points 3.1 Voltage Test Points The TPS650320-Q1 EVM contains 30 test points for various measurements. Trace assignments to the test points are shown in Table 3-1. For reference, Figure 3-1 demonstrates the test point locations on the EVM.
Page 7: Graphical User Interface
® , Mac ® , or Linux ® 4.1 TPS650320-Q1 EVM Debugging Refer to to debug potential issues while using the TPS650320-Q1 EVM. SLVUC06 – OCTOBER 2020 TPS650320-Q1 EVM User's Guide Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 8 Graphical User Interface www.ti.com Figure 4-1. TPS650320-Q1 EVM Debugging Flow Chart TPS650320-Q1 EVM User's Guide SLVUC06 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 9 4. Select the Program tab. 5. Browse to the .bin file downloaded from the GUI. 6. Leave all other settings as default. 7. Click Program. SLVUC06 – OCTOBER 2020 TPS650320-Q1 EVM User's Guide Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 10: Navigating The Gui
The Block Diagram section displays the typical components and functional blocks of the PMIC. A block diagram for the Programming BoosterPack is also shown. TPS650320-Q1 EVM User's Guide SLVUC06 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 11 This register page can poll the device periodically using the Auto Read feature in the top right corner, or allow manual read instructions using the Read Register and Read All Registers buttons. SLVUC06 – OCTOBER 2020 TPS650320-Q1 EVM User's Guide Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 12 Since the visual instruments in the Device Configuration page link directly to the corresponding bits and registers in the Register Map page, the Device Configuration page can be used to quickly define desired OTP register settings. TPS650320-Q1 EVM User's Guide SLVUC06 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 13 3. Click File > Save Settings in the top left corner of the GUI. This exports the register settings in a JSON file that is provided to generate the NVM spin. Figure 4-9. Example Settings Output SLVUC06 – OCTOBER 2020 TPS650320-Q1 EVM User's Guide Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 14 For example, if a regulator is enabled but fails to power-up within 200 ms, the sequence settings are not valid. TPS650320-Q1 EVM User's Guide SLVUC06 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 15: Re-Program Pmic
After the EEPROM Program Command is sent, the device will store the existing register configurations permanently and the PMIC will automatically restart with the latest settings. The device can be re-programmed multiple times to evaluate various configurations. SLVUC06 – OCTOBER 2020 TPS650320-Q1 EVM User's Guide Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 16: In-Circuit Programming
2. Validate the settings with the BOOSTXL-TPS65033. This socketed board provides a quicker way to evaluate device settings. 3. Configure the TPS650320-Q1 EVM for a typical camera application once the follwoing settings are verified and validated: a. Ensure the I2C pull-up jumpers (J24 and J34) are populated.
Page 17 Graphical User Interface Figure 4-13. GUI Configuration CRC Script 8. Burn the final PMIC register settings to EEPROM. 9. Validate the settings on subsequent startups. SLVUC06 – OCTOBER 2020 TPS650320-Q1 EVM User's Guide Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 18: Typical Performance Plots
Typical Performance Plots www.ti.com 5 Typical Performance Plots 5.1 Power Sequence Plots Figure 5-1. TPS650320-Q1 Default Power Up Figure 5-2. TPS650320-Q1 Default Power Down Sequence Sequence 5.2 Load Transient Plots VIN = 12 V VOUT = 3.3 V IOUT = 1 mA to 400 mA in 1 µs VIN = 3.3 V...
Page 19: Output Voltage Ripple Plots
VIN =3.3 V VOUT = 1.8 V IOUT = 300 mA Figure 5-7. Buck 1 Output Voltage Ripple Figure 5-8. Buck 2 Output Voltage Ripple SLVUC06 – OCTOBER 2020 TPS650320-Q1 EVM User's Guide Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 20: Efficiency Plots
Figure 5-10. Buck 1 Efficiency Curve VIN = 3.3 V VOUT = 1.8 V Ta = 25°C Figure 5-11. Buck 2 Efficiency Curve TPS650320-Q1 EVM User's Guide SLVUC06 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 21: Ldo Output Noise
Figure 5-12. Buck 3 Efficiency Curve 5.5 LDO Output Noise VIN = 3.3 V VOUT = 2.8 V IOUT = 300 mA Figure 5-13. LDO Output Noise Density SLVUC06 – OCTOBER 2020 TPS650320-Q1 EVM User's Guide Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 22: Tps650320-Q1 Evm Schematic
TPS650320-Q1 EVM Schematic www.ti.com 6 TPS650320-Q1 EVM Schematic Figure 6-1. TPS650320-Q1 Schematic Figure 6-2. MSP432E401Y Schematic TPS650320-Q1 EVM User's Guide SLVUC06 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 23: Tps650320-Q1 Evm Pcb Layers
TPS650320-Q1 EVM PCB Layers 7 TPS650320-Q1 EVM PCB Layers Figure 7-1. Top Layer SLVUC06 – OCTOBER 2020 TPS650320-Q1 EVM User's Guide Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 28 TPS650320-Q1 EVM PCB Layers www.ti.com Figure 7-6. Bottom Layer (Mirrored) TPS650320-Q1 EVM User's Guide SLVUC06 – OCTOBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
Page 29: Tps650320-Q1 Evm Bill Of Materials
TPS650320-Q1 EVM Bill of Materials 8 TPS650320-Q1 EVM Bill of Materials Table 8-1. TPS650320-Q1 EVM Bill of Materials Designator Quantity Value Description Package Part Number Manufacturer Reference !PCB1 Printed Circuit BMC054 Board 0.1 µF CAP, CERM, 0.1 0402 CGA2B3X7R1H10 µF, 50 V, ±...
Page 30 TPS650320-Q1 EVM Bill of Materials www.ti.com Table 8-1. TPS650320-Q1 EVM Bill of Materials (continued) Designator Quantity Value Description Package Part Number Manufacturer Reference Connector, 5.6x2.5x8.2 mm 475890001 Molex Receptacle, Micro- USB Type AB, R/A, Bottom Mount SMT J2, J4, J5, J6, J7,...
Page 31 TPS650320-Q1 EVM Bill of Materials Table 8-1. TPS650320-Q1 EVM Bill of Materials (continued) Designator Quantity Value Description Package Part Number Manufacturer Reference 4.87 k RES, 4.87 k, 1%, 0402 CRCW04024K87F Vishay-Dale 0.063 W, AEC- Q200 Grade 0, 0402 R4, R7, R8...
Page 32 TPS650320-Q1 EVM Bill of Materials www.ti.com Table 8-1. TPS650320-Q1 EVM Bill of Materials (continued) Designator Quantity Value Description Package Part Number Manufacturer Reference TP1, TP2, TP4, Test Point, Testpoint_Keyston 5015 Keystone TP5, TP6, TP7, Miniature, SMT e_Miniature TP9, TP10, TP11,...
Page 33 TPS650320-Q1 EVM Bill of Materials Table 8-1. TPS650320-Q1 EVM Bill of Materials (continued) Designator Quantity Value Description Package Part Number Manufacturer Reference R26, R27 RES, 0, 5%, 0.063 0402 CRCW04020000Z Vishay-Dale W, AEC-Q200 Grade 0, 0402 Switch, Slide, 9.5x5 mm...
Page 34 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
Page 35 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
Page 36 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
Page 37 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
Page 38 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2019, Texas Instruments Incorporated...
Page 39 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products.IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2021, Texas Instruments Incorporated...
