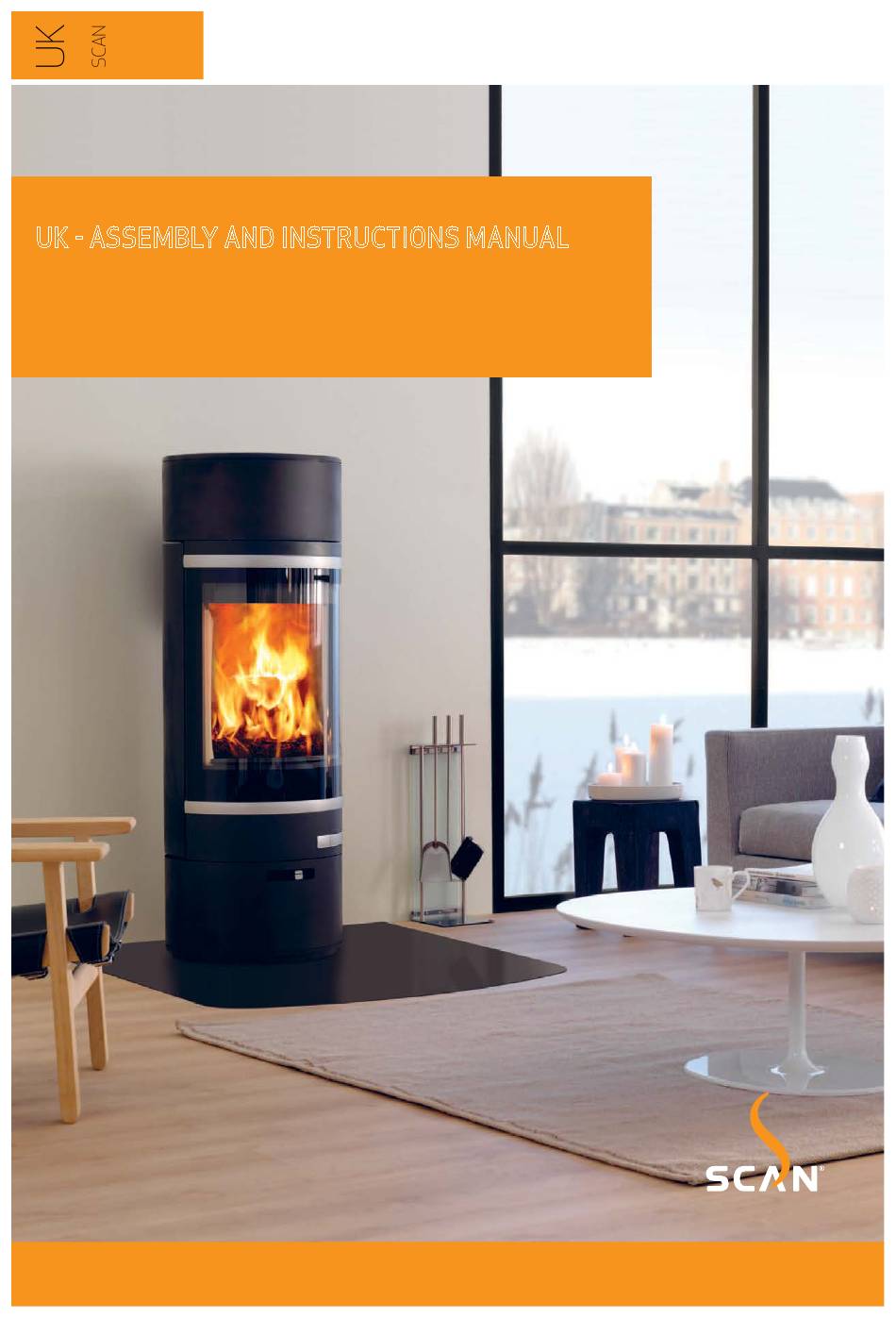

- Page 1 UK - ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 85 ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 85...
- Page 2 CONGRATULATIONS ON YOUR NEW SCAN WOOD-BURNING STOVE You have purchased a product by one of Europe’s leading manufacturers of wood-burning stoves, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
-
Page 3: Table Of Contents
TABLE OF CONTENTS ¬ ¬ TECHNICAL DATA Installation Dimension sketch and minimum distances Safety Type plate Technical data and dimensions Product registration number ¬ ¬ ASSEMBLY Tools needed for mounting of the stove Distance to furniture Loose parts Safety distance Additional accessories Removal of packaging Disposal of packaging... -
Page 4: Technical Data
Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed. -
Page 5: Technical Data And Dimensions
(horizontal position) Efficiency 78 % Max. wood length 50 cm Energy efficiency index (vertical position) Energy efficiency class Weight Scan 85 series ca. 204-220 kg Nominel output 8 kW Connecting piece internal diameter 144 mm Chimney temperature EN 13240 272 °C... -
Page 6: Dimension Sketch And Minimum Distances
DIMENSION SKETCH AND MINIMUM DISTANCES... - Page 7 MINIMUM DISTANCES...
-
Page 8: Type Plate
Product registration number PRODUCT REGISTRATION NUMBER NAVN: EMNE: All Scan wood-burning stoves are provided with a product registration number. Please make a note of this number at the rear 21-10-20 DATO: MATERIALE: VÆGT: page of this manual; you will always need to quote it when contacting your dealer or Scan A/S. -
Page 9: Assembly
(not for corner installation) ¬ Adjustment key for height adjustment DISPOSAL OF PACKAGING Your Scan stove may come supplied with the following packaging: The wood packaging can be reused and after final use can be incinerated as a CO neutral Wood packaging product or sent for recycling. -
Page 10: Closed Combustion System
C:\Working Folder\Designs\Scan85\90585025.idw STI: EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim- Friskluft via gulv eller væg an 85... -
Page 11: Requirements For Chimney
European, national and local regulations concerning safety distances for wood-burning stoves must be complied with. The stove must be set up so that the stove itself, the flue pipe, and the chimney can all be cleaned. Scan 85 Scan 85 med knærør NAVN: EMNE: TG.NR:... -
Page 12: Removal Of Packaging
The stove comes attached to a wooden pallet on delivery. The four screws securing the stove may be removed through the two inspection hatches in the base. Lift the inspection hatches free from their mounts Remove the inspection hatches from the stove Inspection hatches Afmonter inspektionslemme Scan 85 90585 NAVN: EMNE: TG.NR: Remove the screws securing the stove to the pallet... -
Page 13: Height Adjustment Of Stove
OPENING OF THE DOOR To open the door of the Scan 85, press the handle release to the left of the handle. The handle will pop out, ant the door can be pulled to side. The door must roll on the ball bearings. -
Page 14: Fitting The Flue Connection Piece
Cover The connecting piece is placed loosely in the top outlet of the stove. The gasket and screws for the connecting piece can be Afmontage dækplade i varmeskjold, bidetang Scan 85 9058 NAVN: EMNE: TG.NR: found in the stove's combustion chamber. - Page 15 The connecting piece is placed loosely in the top outlet of the stove. The gasket and screws can be found in the stove’s combustion chamber. Lift the top module and flue connection piece from Mount the ceramic gasket on the the stove connecting piece Montage af røgstuds og varmeskjold, bagudgang n 85 EMNE: TG.NR: 90585029 03-11-2010 VÆGT: DATO:...
-
Page 16: Height Adjustment Of The Top Module
HEIGHT ADJUSTMENT OF THE TOP MODULE The height of the stove’s top module can be adjusted. Open the door. Adjust the height with the pointed screw using an Allen key, see illustrations below. Allen key Justering af topmodul Scan 85 NAVN: EMNE: TG.N 26-10-10 MATERIALE: VÆGT:... -
Page 17: Heat-Storage System
HEAT-STORAGE SYSTEM (ACCESSORY) Heat-storage stones are available for Scan 85-3, 85-4, 85-5 and 85-6. Heat-storage stones are made from a special material with a high heating capacity. The stones are heated up during the firing and gives off the heat again after the firing, which means that the stove stays warm for a longer time. -
Page 18: Load-Bearing Foundation
Your local Scan dealer can advise you on regulations concerning protection of flammable materials in the vicinity of your stove. The floor plate’s function is to protect the floor and flammable material against any sparks that may occur. A floor plate can be made of steel or glass, but the stove can also be erected on clinker concrete, natural stone or similar materials. -
Page 19: Instructions For Use
AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 83\90583013.idw STI: If there is insufficient burning material in the fire bed to light a new fuel charge, excessive smoke emission can occur. Refueling must be carried out onto a sufficient quantity of glowing embers and ash that the new fuel charge will ignite in a reasonable... -
Page 20: Ash Container
Never empty ashes into a flammable container. Ashes can contain glowing embers long after you finish operating the stove Ash container in closed position Ash container in open position Removal of the ash container from the stove Askeskuffe løsnes Scan 85 Scan 85 Askeskuffe løsnes NAVN: EMNE: 90585019 TG.NR:... - Page 21 Turn the ash container so that the handle is in the closed position Positioning hole for guide fitting on ash container Guide fitting INSTRUCTIONS FOR USE Positionering af askespand Scan 85 90585034 NAVN: EMNE: TG.NR: 1,56 kg 16-11-10 MATERIALE: VÆGT:...
-
Page 22: Instructions For Heating
LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. See our video about correct firing on www.scan-stoves.com or scan the QR-code. Please note... -
Page 23: Continuous Operation
CONTINUOUS OPERATION It is important to obtain as high a temperature as possible in the combustion chamber. This results in best possible use of the stove and fuel, as well as achieving clean combustion. In this way you will avoid build-up of soot on the combustion chamber lining and glass pane. -
Page 24: General Notes
GENERAL NOTES PLEASE NOTE! Parts of the wood-burning stove, especially the outer surfaces, become hot during use. Due care should be exercised. ¬ Never empty ashes into a flammable container. Ashes can contain glowing embers long after you finish operating the stove. ¬... -
Page 25: Handling Of The Fuel
HANDLING OF THE FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st. -
Page 26: Maintainance
Clean your wood-burning stove by wiping it down with a dry, lint-free cloth. If the paint finish gets damaged, you can purchase repair paint in spray form from your Scan dealer. As slight differences in colour shade are possible, we recommend you spray a larger area to achieve a natural blend. For best results, apply repair spray when the stove is warm enough for you to just keep your hand on it, but no hotter. -
Page 27: Removal Of Baffle Plates And Combustion Chamber Lining
Lower baffle plate Upper Holder for baffle plate baffle plates Lift the lower baffle plate. Turn the baffle plate 90°, and edge it out through the combustion chamber Snit gennem ovn Scan 85 90585037 EMNE: TG.NR: 19-11-10 TERIALE: VÆGT: DATO:... - Page 28 See the illustrations chamber lining out of the stove below for how to fit it Stift for øverste røgvenderplade EMNE: DATO: VÆGT: Udtagning af øverste røgvenderplade Scan 85 90585032 NAVN: EMNE: TG.NR: 15-11-10 MATERIALE: VÆGT:...
-
Page 29: Cleaning The Glass
¬ Please note that the glass cleaner is not to get into contact with the gaskets, as this can discolour the glass permanently Afmontage brændkammerforing nederste rygplade Scan 85 90585041 NAVN: EMNE: TG.NR:... - Page 30 TROUBLESHOOTING SMOKE ESCAPING ¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬ Vacuum in room ¬...
- Page 31 All wood-fired Scan products are made of high-quality materials and subject to strict quality controls before leaving the factory. We give a warranty of 5 years on manufacturing errors or defects. You must quote your stove‘s product registration number when you contact us or your authorized Scan dealer with a warranty claim.
- Page 32 NOTES...
- Page 36 Product registration number Quote this number at all enquiries Edition: UK 90585500 10057005-P02 SCAN A/S Damsbovej 1 DK-5492 Vissenbjerg www.scan-stoves.com 19.11.2021...
