Quectel UC20 Hardware Design page 42

USIM_CLK
USIM_RST
USIM_PRES
ENCE
USIM_GND

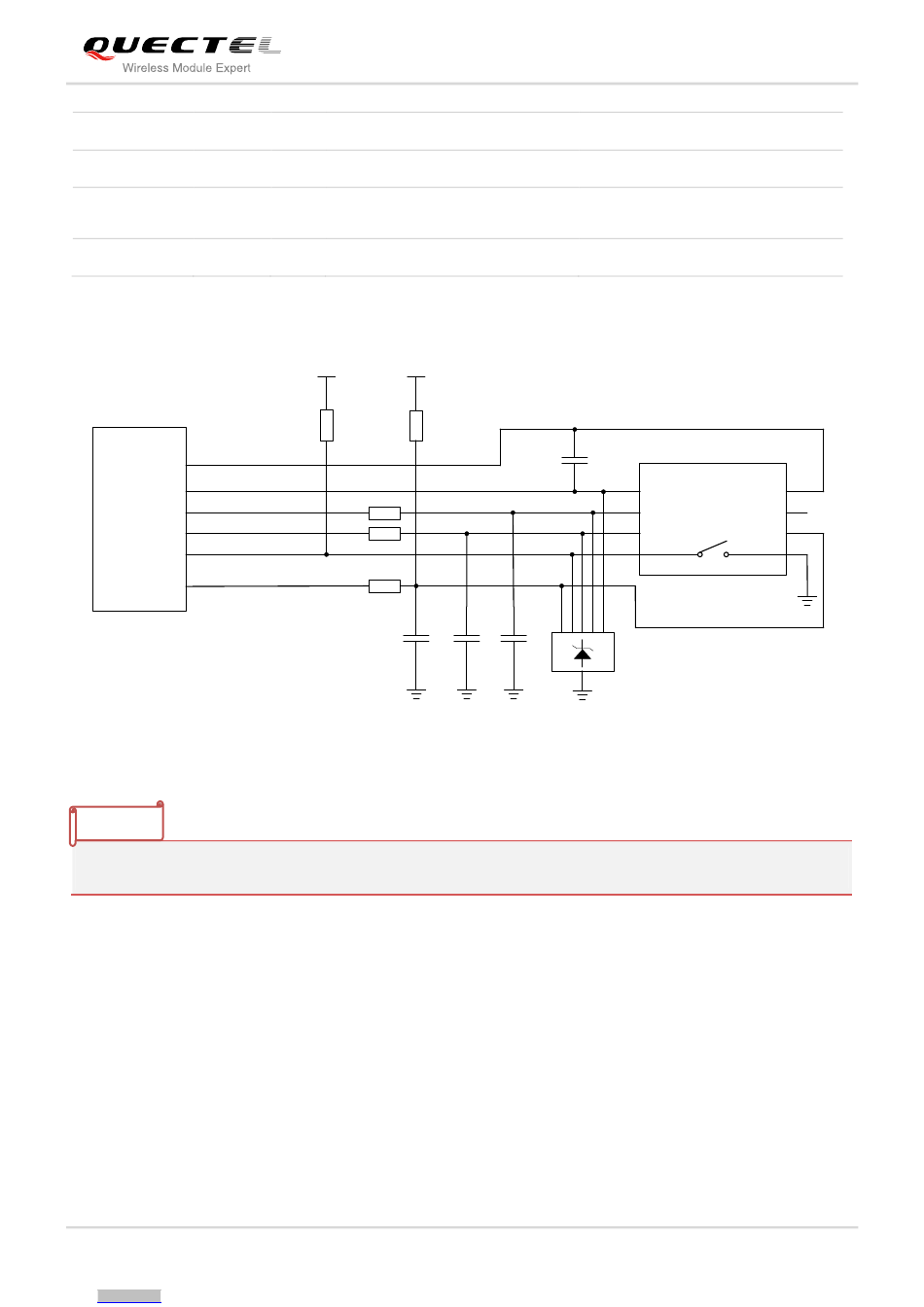

The following figure shows the reference design of the 8-pin USIM card.
Module
NOTE
Some AT commands are invalid when USIM card is not applied.
UC20 supports USIM card hot-plugging via the USIM_PRESENCE pin. For details, refer to document [1]
about the command AT+QSIMDET. If you do not need the USIM card detection function, keep
USIM_PRESENCE unconnected. The reference circuit for using a 6-pin USIM card connector is
illustrated as the following figure.
UC20_Hardware_Design
