Frequently Asked Questions

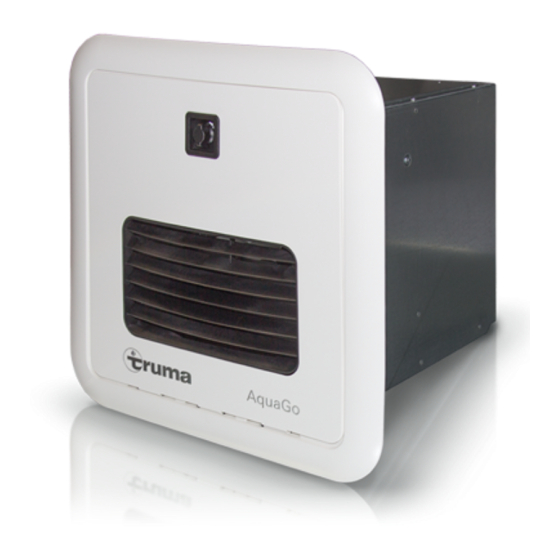

Truma AquaGo
How Does the Truma AquaGo Work?

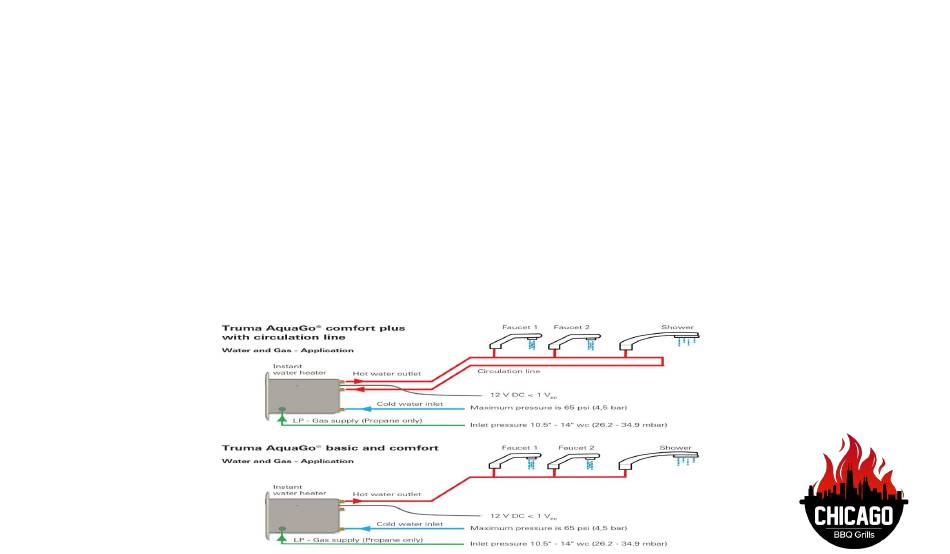

The Truma AquaGo instant water heater is connected between the vehicle's fresh water supply and its hot water system. When the appliance is switched on, the
burner starts automatically as soon as the hot water faucet is opened and the flow of the water is greater than approximately 0.4 gallons per minute (1.5 l/min). The
stepless burner control adjusts heater output based on flow and inlet water temperature, maintaining an outlet temperature of approximately 120 °F (49 °C).
A temperature stabilizer minimizes outlet temperature fluctuations. A comfortable water temperature at the faucet or shower is achieved by mixing with cold water.
The burner switches off automatically when the faucet is closed to conserve LP gas. The Truma AquaGo basic does not have frost protection and should not be
used or filled with water when there is a danger of freezing.

Advertisement

loading
Need help?

Need help?

Do you have a question about the AquaGo and is the answer not in the manual?

Questions and answers

Related Manuals for Truma AquaGo

Summary of Contents for Truma AquaGo

  • Page 1 A temperature stabilizer minimizes outlet temperature fluctuations. A comfortable water temperature at the faucet or shower is achieved by mixing with cold water. The burner switches off automatically when the faucet is closed to conserve LP gas. The Truma AquaGo basic does not have frost protection and should not be...
  • Page 2 1. Power to the unit must be on from the main panel 2. The outside switch on the AquaGo needs to be in the “ON” position either up or down. 3. Turn rotary dial on inside switch to “ECO” or “Comfort” mode (these are the top 2 positions on the switch) 4.
  • Page 3 Remove the filter and let the water drain  Store your filter in a safe place for the winter - DO NOT put it back in the AquaGo Watch Billy demonstrate this simple process in the attached video. How to Operate My AquaGo Control Panel Learn how to: ...
  • Page 4 3. Go outside to the AquaGo unit and listen for the circulation pump to start. It will run for 10 seconds on repeating 30 second intervals. 4. Open all hot water faucets and let the water run until you see the inside rotary dial STOPS flashing yellow, or the AquaGo unit will flash with a red light. This will take a minimum of 15 minutes.
  • Page 5 Truma Combi How Does the Truma Combi Work? 1 Control panel 2 Gas connection 3 Solenoid valve 4 Combined combustion air/exhaust cowl 5 Combustion air fan 6 Gas burner 7 Ignition electrode 8 Combustion chamber 9 Flame tube with baffle...
  • Page 6 18 HDF thermal jacket The furnace is switched on and the required temperature for heating and warm water is set on the Truma Combi LCD control panel (1). The gas supply to the furnace is controlled by the solenoid valve (3). The necessary combustion air flows through the outer pipe of the combined inlet for combustion air/outlet for exhaust (4) into the furnace and is transported into the gas burner (6) with the help of the combustion air motor (5).
  • Page 7 4. open all water release points, e.g. cold and hot water faucets, showers, toilets 5. flip yellow handle to be in line with valve body to drain. For more detailed instructions watch the attached video How to Navigate your Truma Combi CP+ Control Panel Learn how to: ...
  • Page 8 Error code E18 is displayed on my CP+ Air intake is obstructed  Clear air intake  check warm air outlets for blockage or crushed ducting Combi has no error code but will not stay lit Check to make sure the tank has not frozen becoming swollen and restricting the air flow into ducting. This could cause the unit to overheat and cycle off. What to check if your Combi will not operate on gas mode 1.
  • Page 9 9. is the 12V master switch for the vehicle switched on? 10. does the Combi operate properly in 110V mode? 11. Has the high limit reset been tripped? 1. If so, run cold water through the Combi for a few minutes and reset if tripped. What to check if your Combi will not operate on 110V power 1.
  • Page 10 Truma LevelCheck How Does the Truma LevelCheck Work? To measure, place the Truma LevelCheck against the wall of the LPG tank horizontally at a 90° angle. The fill level is determined using an ultrasound signal. If there is LPG at the measured area, the signal is echoed by the opposite wall of the tank.
  • Page 11 Attach Truma LevelCheck horizontally to the wall of the gas cylinder at an angle of 90°. If there is liquefied gas in the measuring range, the result is shown by a green LED. Otherwise, the LED is red. Important In order to obtain a reliable measurement, the measuring head must be cleaned regularly with a wet cloth (do not use any cleaning agents). A soiled measuring head can result in inaccurate measurements.
  • Page 12 Which Truma Heaters can I Retrofit with the Digital CP plus iNet Ready Control Panel? The digital CP plus iNet ready control panel can be retrofitted with all Truma Combi heaters. Truma has been producing Combi heaters since 2007, they can be recognised by the grey cover.
  • Page 13 Vehicle levelling helps you align the vehicle horizontally.  With the App you can quickly access all operating instructions, tips and how-to videos from Truma. The instructions in the App can also be used offline.  With dealer search you can immediately find the nearest Truma dealership or Truma Service Partner.
  • Page 14 What is the Calibration Function in the Truma App Good for while Leveling? The sensors in smartphones and tablets can become unaligned over time. The calibration in the Truma App realigns the sensors. You need a horizontal surface for this.
  • Page 15 If you use the Truma App in combination with the Truma iNet Box to control your appliances, you can use the Truma App via Bluetooth when it is within range at no additional costs.
  • Page 16 Currently this product is not available to the North American RV market. We are working hard to develop an integrated digital solution to support connected systems in the future and will provide additional information once available.
