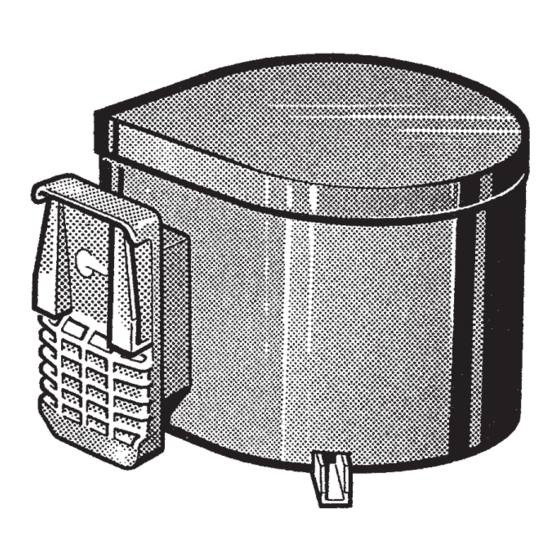

Ultrastore Rapid
Gas and Electric
Storage Water Heater
Operating instructions
Installation instructions
To be kept in the vehicle!
