Truma AquaGo® LP Gas Instant Water Heater
Model:

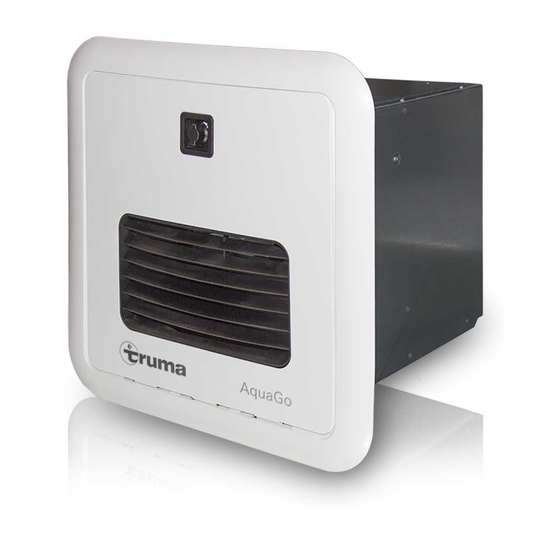

Truma AquaGo® basic (DLE60B) *
Truma AquaGo® comfort (DLE60C) *
Truma AquaGo® comfort plus (DLE60CP) *
If the information in these instructions is not
followed exactly, a fire or explosion may result,
causing property damage, personal injury, or
death.
– Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Evacuate all persons from the vehicle.
• Shut off the gas supply at the gas container
or source.
• Do not touch any electrical switch, or use
any phone or radio in the vehicle.
• Do not start the vehicle's engine or electric
generator.
• Contact the nearest gas supplier or certified
service technician for repairs.
• If you cannot reach a gas supplier or certi-
fied service technician, contact the nearest
fire department.
• Do not turn on the gas supply until gas leaks
have been repaired.
Installation and service must be performed by
a certified service technician, service agency,
or the gas supplier.
US
Operating instructions
Installation instructions
To be kept in the vehicle.
This document is part of the water heater.
Conforms to ANSI Std. Z21.10.3
Certified to CSA Std. 4.3
4010007
Sales and Service
Truma Corp.
825 East Jackson Blvd.
Elkhart, IN 46516
USA
Toll Free
1-855-558-7862
Fax
1-574-538-2426
info@trumacorp.com
www.truma.net
* Patent Pending
