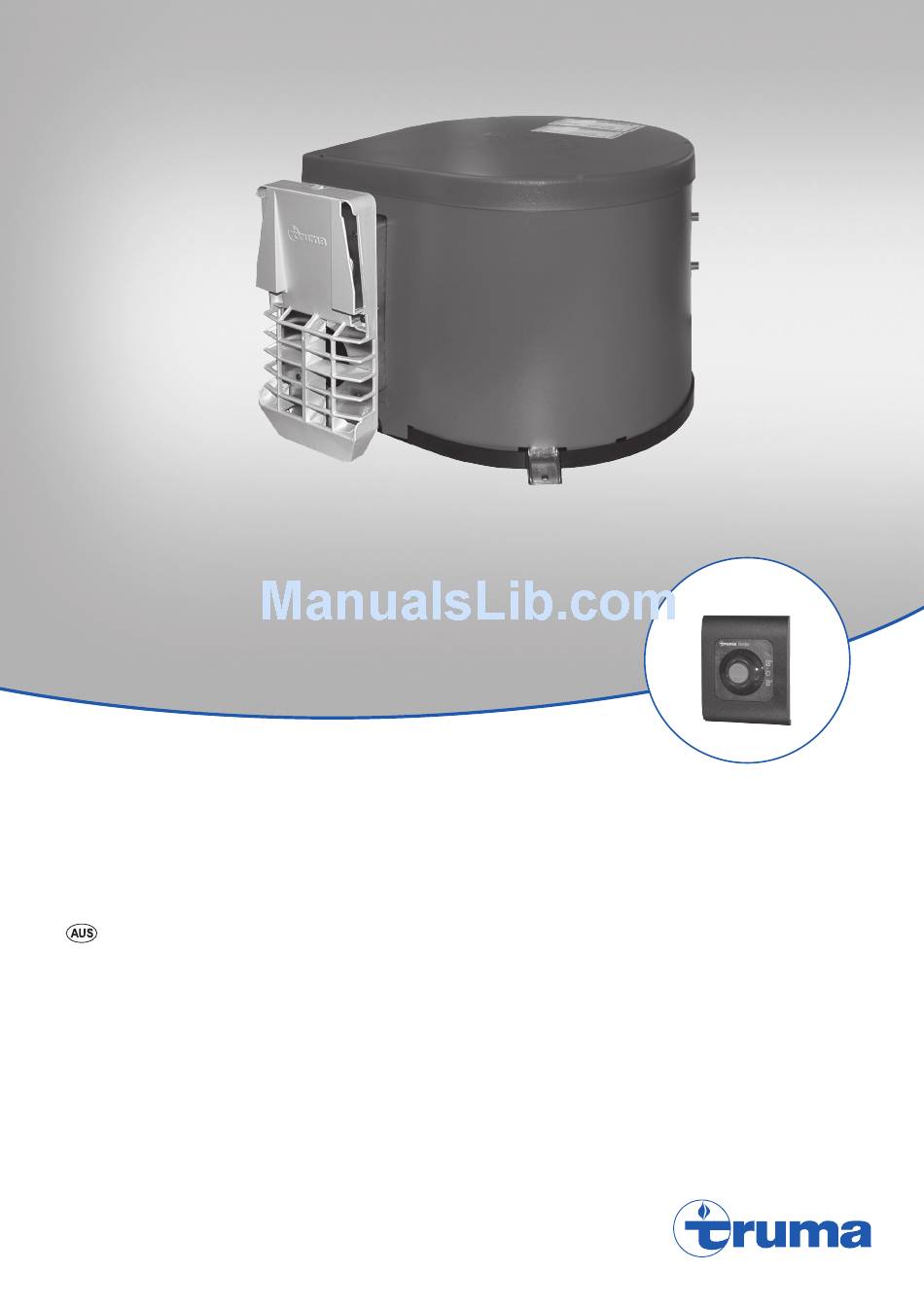

- Page 1 Boiler (Australia) L. P. Gas and 230 / 240 V Electric Storage Water Heater Model B 10 / B 14 from 08/2008 Operating instructions Page 4 Installation instructions Page 8 To be kept in the vehicle!
-
Page 2: Table Of Contents
Boiler L. P. Gas and 230 / 240 V Electric Storage Water Heater Model B 10 / B 14 from 08/2008 Fig. 1 Installation example 1 Truma Boiler 2 Control panel 3 Safety/drain valve 4 Cowl for combustion air intake and exhaust gas discharge... -
Page 3: Symbols Used
Truma parts and failure to follow the installation and oper- ating instructions will cancel the warranty and indemnify Truma from any liability claims. -
Page 4: Operating Instructions
3. Open safety/drain valve: Lever in vertical position, position (f). all users (e. g. on the wardrobe door)! Ask Truma to send you stickers, if necessary. 4. The water heater is now drained directly to the outside via the drain valve. -
Page 5: Red Indicator Lamp "Failure
If you fail to pack it correctly the guarantee shall observed. no longer be valid. Only use original Truma Boiler control p.c.b.'s as spare parts! Red indicator lamp “failure“ Fault finding The red indictor lamp (a) lights up if there is a failure. For possi- ble causes please refer to page 5 –... -
Page 6: Technical Data
Weight (empty) 10 litres / 14 litres approx. 6.4 kg / 6.7 kg Declaration of conformity The Truma Boiler model has been tested and approved through the DVGW and fulfils the EC gas appliance guidelines (90/396/EEC) as well as the associated EC guidelines. -
Page 7: Truma Warranty Policy
– The company will only provide service on presentation – Cleaning of the system or cleaning and adjustment of the of proof of purchase, on either the Truma product, or the gas system. This is considered to be a part of normal prod- Caravan / RV / Pleasure Craft in which the Truma product uct maintenance. -
Page 8: Installation Instructions
Any modifications to the unit, including accessories and cowl, or the use of spare parts and accessories that are important to the operation of the system that are not original Truma parts 1. Position template for cowl opening on the inside of the and failure to follow the installation and operating instructions wall. -
Page 9: Water Connection
(not included in scope of deliv- ery) must be used. As special accessories Truma supplies the water connectors (12 + 13) and safety/drain valve (14) with a 10 mm / 3/8" di- ameter hose nipple (please refer to page 12). -
Page 10: Installation Of The Elbow Water Connectors
(apply splash guard, if necessary). Fig.18 For connection to 8 mm steel piping Truma povides an adapt- er UNF 1/2" x RVS 8, part no. 70020-02700. In industrial bulk packs the test connection is preinstalled and has to be tightened after the gas line has been connected. -
Page 11: Installation Of The Control Panel
It is not sufficient to just must be established in accordance with the Truma interface switch off at the control panel! descriptions (refer to Electrical connection 230 / 240 V). Any... -
Page 12: Electrical Connection 230 / 240 V - Option
Electrical connection 230 / 240 V Accessories – option – Safety/drain valve and water connectors for flexible water hoses The electrical connection is only to be carried out by a licensed electrician. The information given here is not 34150-01 Hot water connector, 10 mm / 3/8" intended as information for the layman, rather it is to for 70150-01 Cold water connector, 10 mm / 3/8"... - Page 13 Boiler L. P. Gas and 230 / 240 V Electric Storage Water Heater Model B 10 / B 14 from 08/2008 When ordering spare parts, please always state the serial number and year of make.
- Page 14 Notes...
- Page 15 Notes...
- Page 16 In Australia, always notify the Dometic Service Centre if problems are encountered; in other countries the relevant service partners should be contacted (www.truma.com). Having the equipment model and the serial number ready (see type plate) will speed up processing. Dometic Pty Ltd...
