Specifications
Model
VLEDB1HG/W
Pick-up Device
1/3" 960H CCD
Effective Pixels (H×V)
NTSC:976×494
Sensing Area
4.9mm×3.7mm
Horizontal Resolution
700 TV Lines
Minimum Illumination
0.01 Lux, 0 Lux at IR on
S/N Ratio
More than 52dB
Scanning System
2:1 Interlace
Synchronous System
Internal
Electronic Shutter
1/50s(1/60s)～1/100,000s
IR Distance
98'
IR Leds
36 pcs Φ5 infrared LED
IR status
IR on: under 10Lux, by CDS auto control
Water Resistance
IP66
Gama Characteristic
0.45
Auto Gain Control
Auto
White Balance
Auto
Video Output
1.0Vp-p composite video, 75Ω
Lens
2.8-12mm Mega pixel Lens
Power/Current
12VDC/ IR on: 400mA, IR off: 80mA
Operating Temperature
14F～122F
Storage Temperature
-4F～140F
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com

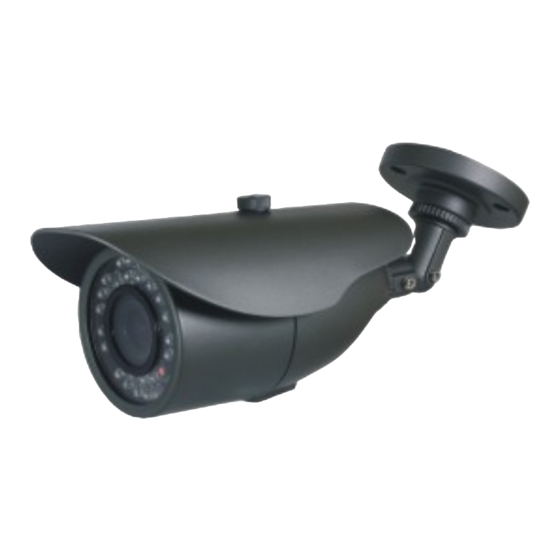

VLEDB1HG/W Series Color
Camera
IR Bullet Camera
Note:
Before applying power to the cam-
era, please read this UserGuide in detail.
Advertisement
Table of Contents
Related Manuals for Speco VLEDB2HW
Summary of Contents for Speco VLEDB2HW
- Page 1 Specifications VLEDB1HG/W Series Color Camera Model VLEDB1HG/W Pick-up Device 1/3" 960H CCD Effective Pixels (H×V) NTSC:976×494 Sensing Area 4.9mm×3.7mm Horizontal Resolution 700 TV Lines IR Bullet Camera Minimum Illumination 0.01 Lux, 0 Lux at IR on S/N Ratio More than 52dB Scanning System 2:1 Interlace Synchronous System...
- Page 2 PRODUCT FEATURES INTRODUCTION CONNECTING Congratulations on your purchase of this Speco product. This camera utilized the latest sensors * Sensor (CCD) and drivers. The most appealing characteristics of 1/3"CCD sensor. Monitor this camera are weather-resistance, day & night Video feature, and indoor & outdoor applications. This * Auto Gain Control (AGC) product is a great addition to your CCTV system.
