Specifications
Model
VLED71B3G
Pick-up Device
1/3" Sony Super HAD CCD
Effective Pixels (H×V)
NTSC:510×492, PAL:500×582
Sensing Area
4.9mm×3.7mm
Horizontal Resolution
480 TV Lines
Minimum Illumination
0.1 Lux, 0 Lux at IR on
S/N Ratio
More than 48dB
Scanning System
2:1 Interlace
Synchronous System
Internal
Electronic Shutter
1/50s(1/60s) 1/100,000s
IR Distance
IR Leds
36 pcs Φ5 infrared LED
IR status
IR on: under 10Lux, by CDS auto control
Water Resistance
IP66
Gama Characteristic
Auto Gain Control
Auto
White Balance
Auto
Video Output
1.0Vp-p composite video, 75
Lens
4-9mm
Power/Current
12VDC/ IR on: 360mA, IR off: 100mA
Operating Temperature
14F 122F
Storage Temperature
-4F 140F
98'
0.45

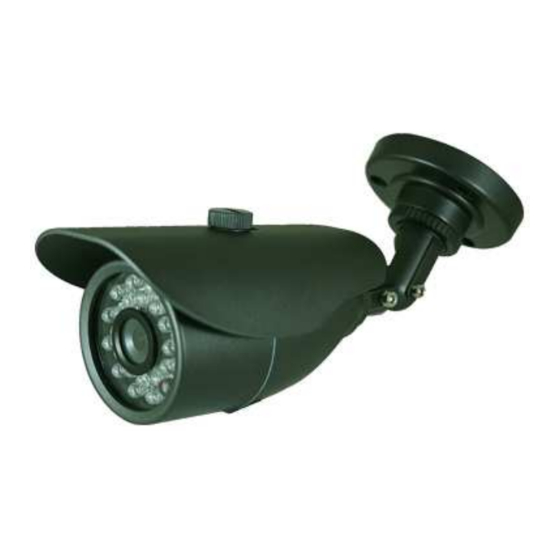

VLED71B3G Series Color
Camera
IR Bullet Camera
IR Bullet Camera
IR Bullet Camera
IR Bullet Camera
Note:
Before applying power to the cam-
era, please read this UserGuide in detail.
