Speco VLEDT2W Series Quick Start Manual

Specifications
Model VLEDT2W
Pick-up Device 1/3" Sony Super HAD CCD
Effective Pixels (H×V) NTSC:510×492, PAL:500×582
Sensing Area 4.9mm×3.7mm
Horizontal Resolution 600 TV Lines
Minimum Illumination 0.1 Lux, 0 Lux at IR on
S/N Ratio More than 48dB
Scanning System 2:1 Interlace
Synchronous System Internal
Electronic Shutter
1/50s(1/60s)～1/100,000s
IR Distance
IR Leds 24 pcs Φ5 infrared LED
IR status IR on: under 10Lux, by CDS auto control
Water Resistance IP66
Gama Characteristic
Auto Gain Control Auto
White Balance Auto
Video Output 1.0Vp-p composite video, 75Ω
Lens 3.6mm
Power/Current 12VDC/ IR on: 300mA, IR off: 100mA
Operating Temperature
14F～122F
Storage Temperature -4F～140F
65'
0.45

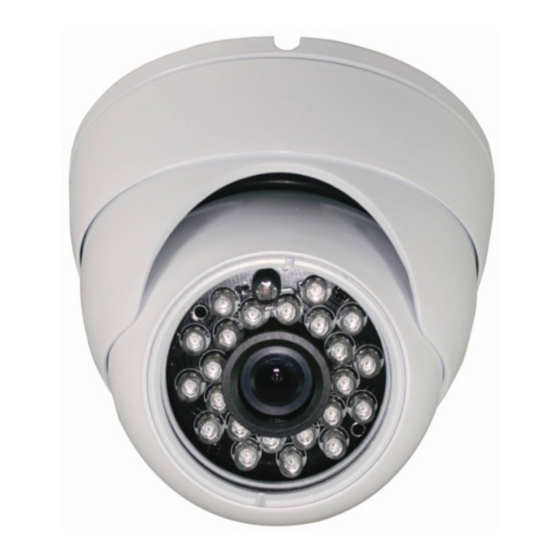

VLEDT2W Series Color
Camera
2.5" IR Turret Camera
Note:
Before applying power to the cam-
era, please read this UserGuide in detail.
