Specifications
Model
VLED24T3W
Pick-up Device
1/3" Sony Super HAD CCD
Effective Pixels (H×V)
NTSC:510×492, PAL:500×582
Sensing Area
4.9mm×3.7mm
Horizontal Resolution
480 TV Lines
Minimum Illumination
0.1 Lux, 0 Lux at IR on
S/N Ratio
More than 48dB
Scanning System
2:1 Interlace
Synchronous System
Internal
Electronic Shutter
1/50s(1/60s)～1/100,000s
IR Distance
IR Leds
36 Pcs 850nm infrared LED
IR status
IR on: under 10Lux, by CDS auto control
Gama Characteristic
Auto Gain Control
White Balance
Video Output
1.0Vp-p composite video, 75Ω
Lens
Power/Current
12VDC/ IR on: 400mA, IR off: 100mA
Operating Temperature
14F～122F
Storage Temperature
-4F～140F
98'
0.45
Auto
Auto
4-9mm

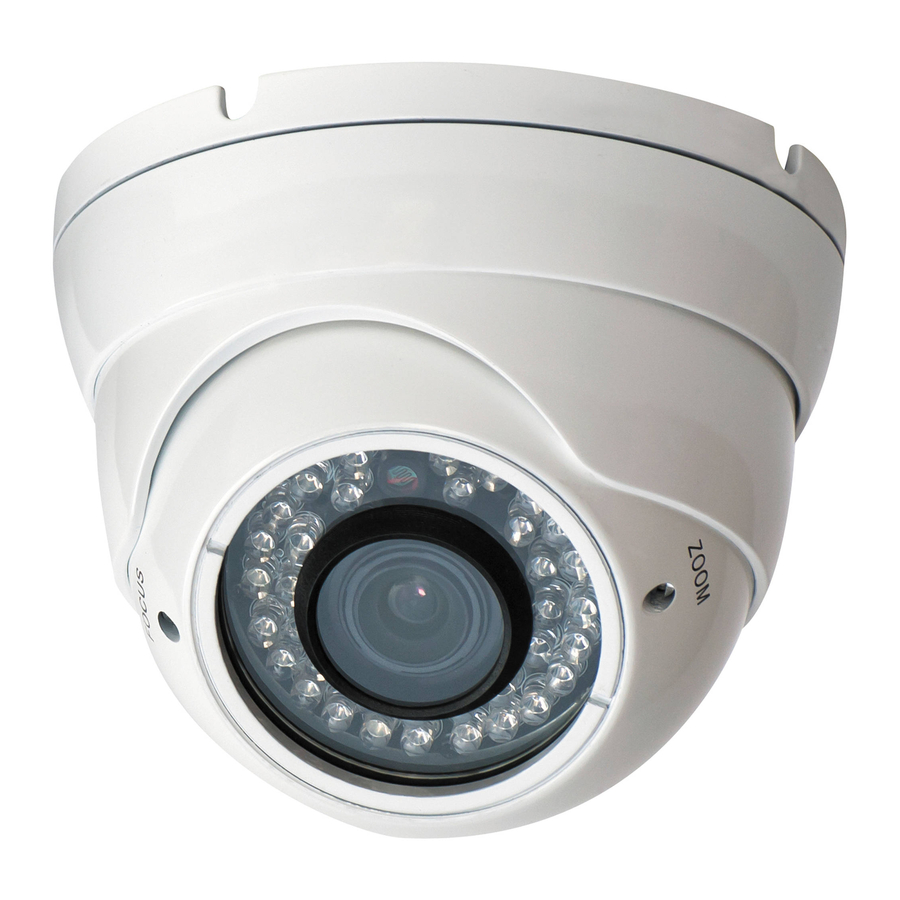

VLED24T3W Series Color
Camera
3.5" External Adjustable Vandal-
proof Eyeball Camera
Note:
Before applying power to the cam-
era, please read this UserGuide in detail.
Advertisement
Table of Contents
Related Manuals for Speco VLED24T3W Series
Summary of Contents for Speco VLED24T3W Series
- Page 1 Specifications VLED24T3W Series Color Camera Model VLED24T3W Pick-up Device 1/3" Sony Super HAD CCD Effective Pixels (H×V) NTSC:510×492, PAL:500×582 Sensing Area 4.9mm×3.7mm Horizontal Resolution 480 TV Lines 3.5" External Adjustable Vandal- proof Eyeball Camera Minimum Illumination 0.1 Lux, 0 Lux at IR on...
- Page 2 PRODUCT FEATURES INTRODUCTION CONNECTING Congratulations on your purchase of this Speco * Sensor (CCD) product. This camera utilized the latest in SONY SONY 1/3" High Resolution CCD sensor. sensors and drivers. The most appealing charac- Monitor teristics of this camera are day & night feature, and Video indoor &...
