Specifications
Model
VLEDT2HG/W
Pick-up Device
1/3" 960H CCD
Effective Pixels (H×V)
NTSC:976×494
Sensing Area
4.9mm×3.7mm
Horizontal Resolution
700 TV Lines
Minimum Illumination
0.01 Lux, 0 Lux at IR on
S/N Ratio
More than 52dB
Scanning System
2:1 Interlace
Synchronous System
Internal
Electronic Shutter
1/50s(1/60s)～1/100,000s
IR Distance
IR Leds
24 pcs Φ5 infrared LED
IR status
IR on: under 10Lux, by CDS auto control
Water Resistance
IP66
Gama Characteristic
Auto Gain Control
Auto
White Balance
Auto
Video Output
1.0Vp-p composite video, 75Ω
Lens
3.6mm
Power/Current
12VDC/ IR on: 300mA, IR off: 80mA
Operating Temperature
14F～122F
Storage Temperature
-4F～140F
65'
0.45

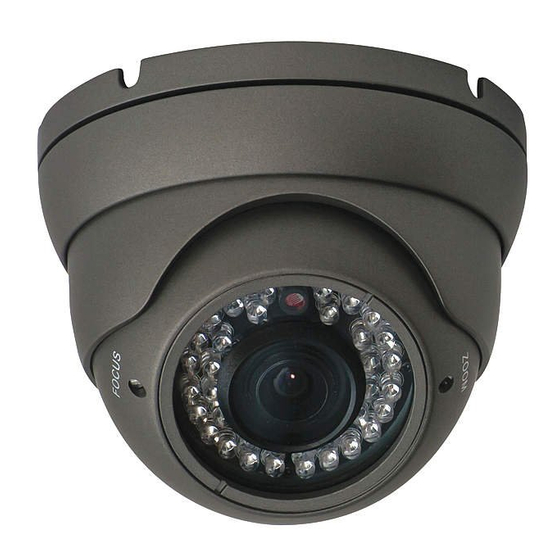

VLEDT2HG/W Series Color
Camera
2.5" IR Turret Camera
Note:
Before applying power to the cam-
era, please read this UserGuide in detail.
Advertisement
Related Manuals for Speco VLEDT2HG
Summary of Contents for Speco VLEDT2HG
- Page 1 Specifications VLEDT2HG/W Series Color Camera Model VLEDT2HG/W Pick-up Device 1/3" 960H CCD Effective Pixels (H×V) NTSC:976×494 Sensing Area 4.9mm×3.7mm Horizontal Resolution 700 TV Lines 2.5" IR Turret Camera Minimum Illumination 0.01 Lux, 0 Lux at IR on S/N Ratio More than 52dB...
- Page 2 PRODUCT FEATURES INTRODUCTION CONNECTING Congratulations on your purchase of this Speco prod- * Sensor (CCD) uct. This camera utilized the latest in sensors and drivers. The most appealing characteristics of this 1/3" 960H CCD sensor. Monitor camera are weather-resistance, day & night feature, Video and indoor &...
