V3-BTZB
V3-BTZB

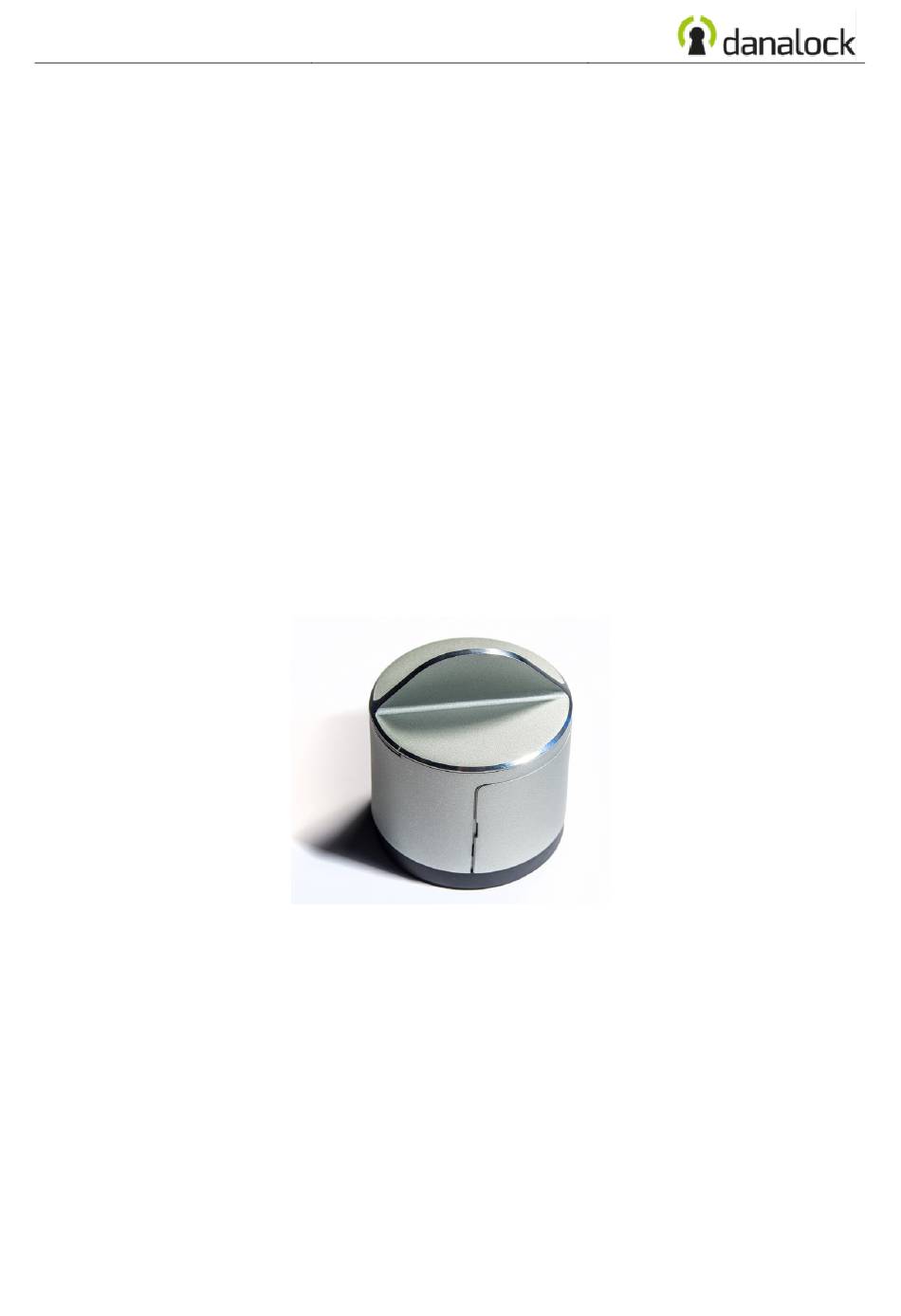

Technical Manual
Version 1.5, May 2017
Danalock V3-BTZB, Technical Manual v.1.5, May 2017
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V3-BTZB and is the answer not in the manual?

Questions and answers

Summary of Contents for danalock V3-BTZB

  • Page 1 V3-BTZB V3-BTZB Technical Manual Version 1.5, May 2017 Danalock V3-BTZB, Technical Manual v.1.5, May 2017 Page 1...
  • Page 2: Table Of Contents

    Minimum Information Required for Technical Assistance ..........16 Return Merchandise Authorization - RMA ..............16 Specifications ....................17 Product specifications ....................17 Connections ........................ 17 Temperature range ..................... 17 Mechanical specifications ................... 17 Approvals and certificates ................18 Danalock V3-BTZB, Technical Manual v.1.5, May 2017 Page 2...
  • Page 3 All other trademarks are the property of their you leave. respective owners. Product installation disclaim: Depending on how your deadbolt Release Notice is installed, to unlock your Danalock you will turn it the This document is release 1.4 of the V3-BTZB, Technical opposite direction that deadbolt turned.
  • Page 4 IN NO EVENT SHALL POLY-CONTROL OR ITS SUPPLIERS 247. BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR The V3-BTZB product complies with Part 15 of the FCC rules CONSEQUENTIAL DAMAGES WHATSOEVER UNDER ANY and with Industry Canada license exempt standard(s). Operation...
  • Page 5 V3-BTZB MIC (Japan) The V3-BTZB product complies with the Japanese Ordinance concerning Technical Regulations Conformity Certification etc. of Specified Radio Equipment Article 2 clause (1) Item (19) for radio terminal equipment supporting Bluetooth Low Energy 2400-2483.5 MHz and Zigbee 2400-2483.5 MHz.
  • Page 6: Related Information

    Avoid Body Contact with Device during Operation Do not operate the V3-BTZB in direct contact with your body. Maintain at least 8 inches (20 cm) separation between the device and any parts of your body. Danalock V3-BTZB, Technical Manual v.1.5, May 2017...
  • Page 7: Electro Mechanical Lock Classification

    V3-BTZB. EN 14846 classifications N/A are used. Fire doors The V3-BTZB series is not approved for use with fire doors. EN 14846 suitability for use on fire/smoke doors classification grade=0. Safety No requirements are defined in the EN 14846 classification scheme.
  • Page 8: Detailed Safety Information

    The following precautions apply: • The V3-BTZB unit is not intended for handheld use or to be worn on the body. • It is recommended that a minimum separation of eight 8” inches (20 cm) is to be maintained between the V3-BTZB unit and any persons’...
  • Page 9 ARE NOT REQUIRED BY EITHER THE IEC 62311 FOR BLUETOOTH LE OR FCC/IEEE/ICNIRP REQUIREMENTS FOR BLUETOOTH LE. The V3-BTZB unit is not intended for handheld use or to be worn on the body. A minimum separation of eight (8”) inches (20 cm) is to be maintained between the V3-BTZB and any persons’...
  • Page 10: Privacy Policy

    This privacy policy governs your use of the software application ”danalock App” for mobile devices that is created by Poly-Control ApS. The Application controls the use of the electronic door locking device Danalock, and only works with iPhone 4s / Android 4,4 or newer smartphones with Bluetooth Smart or Z-wave Technology.
  • Page 11: Delivered Standard Content

    States. Contact us If you have any questions regarding privacy while using the Application, or have questions about our practices, please contact us via email at mail@danalock.com Delivered standard content The delivered standard package content includes the following items: Outside US 1 x Danalock (incl.
  • Page 12: Installing The Unit

    V3-BTZB Installing the unit Practical installation advice • Please follow the installation guide carefully. It is available on the danalock site that is found at https://guide.danalock.com/: • Be aware that multiple installation guides exist. The installation guides are targeted for the specific models.
  • Page 13: Functionality Check

    Constant green till fails Lock failed during unlatch then one red blink Identification of the lock Constant white for 1 sec Red light flashes every Critical battery level 5 minute Danalock V3-BTZB, Technical Manual v.1.5, May 2017 Page 13...
  • Page 14: Electro Mechanical Lock Classification

    Bluetooth devices. Electro mechanical lock classification The V3-BTZB is categorized as an electro mechanical lock for operation on the inside of a door instead of a pure mechanical wring. The lock incorporates an electromechanically operated motor for opening and closing the door based on either a finger press (from the inside) or a secure locking/unlocking command transmitted over a radio communication interface.
  • Page 15: Product Family

    The warranty does not cover misuse, wrong installation or damage due to a faulty installation or wrong maintenance. The invoice act as the proof of warranty, so please keep it as reference for any warranty complaints. Danalock V3-BTZB, Technical Manual v.1.5, May 2017 Page 15...
  • Page 16: Technical Assistance

    Minimum Information Required for Technical Assistance If you or a user reports difficulty with a V3-BTZB unit, it is helpful to retrieve directly from the unit all current configuration settings and the message log data etc., that is accessible by the technical support when they receive the following information about the unit.
  • Page 17: Specifications

    V3-BTZB Specifications Product specifications The V3-BTZB unit is with integrated antennas and battery Connections Operational voltage (supply voltage): 4 x 3V DC (12V DC) Standby time on the battery 450 days for V3-BTZB models Temperature range In active running mode -20ºC to +40ºC...
  • Page 18: Approvals And Certificates

    Notice statements according to CFR 47 Part 15.19 / RSS-GEN: The V3-BTZB product complies with Part 15 of the FCC rules and with Industry Canada license exempt standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 19 Cet émetteur ne doit pas être installé ou utilisé en conjonction avec d'autres antennes ou d'autres émetteurs. AUS/NZ: • The V3-BTZB complies with the AS/NZS 4268 requirements for Bluetooth LE transceiver under the Radiocommunications Act 1992; Radio communications (Low Interference Potential Devices) Class Licence 2015 compilation 2016 May 4 Japan: •...
  • Page 20 V3-BTZB The V3-BTZB product complies with the essential requirements of the RED Directive 2014/53/EU as stated by the EC Declaration of Conformity. Certificates and Declaration of conformity (DOC) statements can be downloaded from the danalock website: https://doc.danalock.com/ Danalock V3-BTZB, Technical Manual v.1.5, May 2017...
