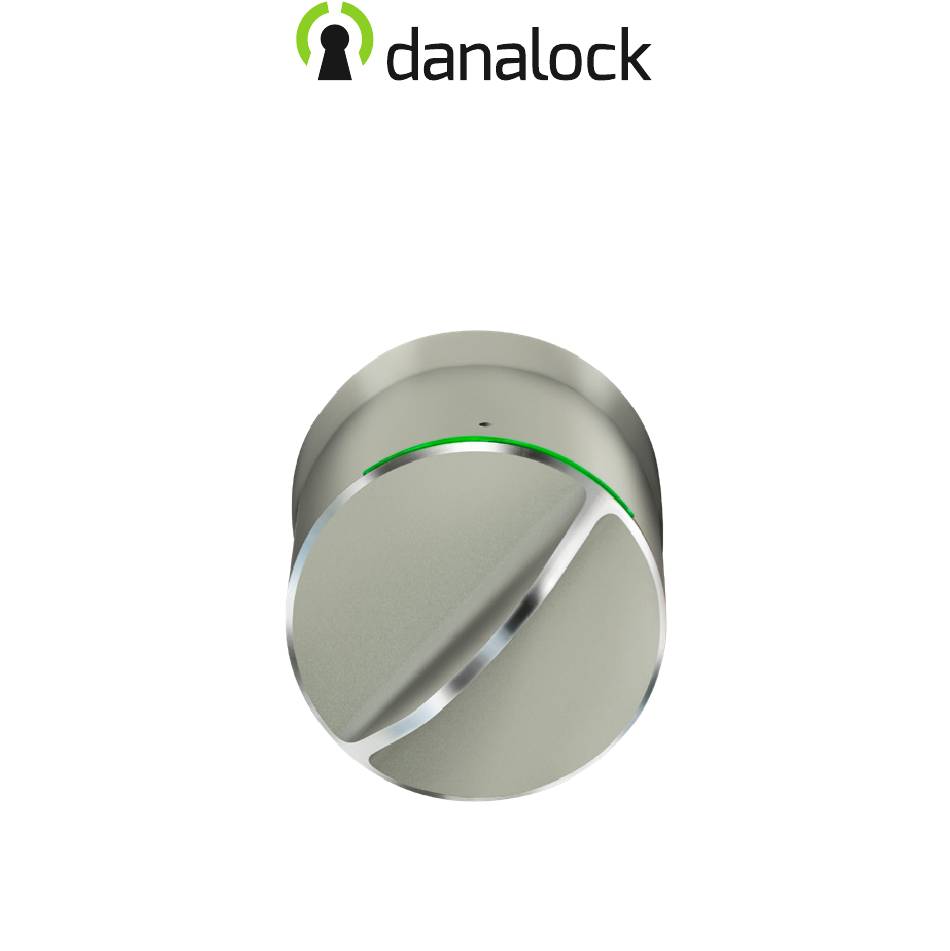

- Page 1 Danalock V3 US Mounting guide www.danalock.com...
-
Page 2: Table Of Contents
Table of contents Parts involved page 1. Download the Danalock app page 2. Get your tools together page 3. Check door alignment page 4. Secure outside keyhole page 5. Remove inside thumb-turn page 6. Select a backplate page 7. Remove the paper from the stickers page 8. - Page 3 13. Fasten the Danalock page 14. Activate batteries page 15. Before completing the setup page 16. Open the Danalock app page 17. Dismount instructions page 18. LED-Signals page 21. How to operate the Danalock V3 with click-commands page Page 3...
-
Page 4: Parts Involved
Parts involved: Page 4... -
Page 5: Download The Danalock App
1. Download the Danalock app Go to Google Play or App Store and download the Danalock app. When the app is installed you create a user profile by pressing the blue ring. You will use this profile each time you sign into the app. -
Page 6: Get Your Tools Together
2. Get your tools together To install the Danalock, you’ll need a Phillips screwdriver and tape, preferably masking tape. Should you need to remove or readjust the lock, a pen tip or paper clip will be needed. Page 6... -
Page 7: Check Door Alignment
3. Check door alignment Ensure that your door is properly aligned before beginning installation. You should be able to lock your door without pushing, Thumb-turn must move and pulling, or lifting lock smoothly. the door. Page 7... -
Page 8: Secure Outside Keyhole
4. Secure outside keyhole Before removing your existing lock, use tape to secure the outside keyhole. This will keep it in place as you remove the screws on the inside. Page 8... -
Page 9: Remove Inside Thumb-Turn
5. Remove inside thumb-turn Remove the inside thumb-turn, leaving just the deadbolt and tailpiece remaining. Set aside the screws. You’ll reinstall them in step 7. Page 9... -
Page 10: Select A Backplate
6. Select a backplate Find the backplate that matches the brand of your existing lock. Page 10... -
Page 11: Remove The Paper From The Stickers
7. Remove the paper from the stickers On the backside of the backplate you’ll find three stickers. Remove the paper from the stickers. Page 11... -
Page 12: Fasten Backplate
8. Fasten backplate Fasten the backplate where the thumb-turn was using the two original screws, with the arrow on the label pointing up. The notches on the backplate must be facing out with the tailpiece centered exactly in the middle hole. Original sc rews Page 12... -
Page 13: Select Tailpiece Adapter
9. Select tailpiece adapter Select the tailpiece adapter that matches the shape of your existing lock’s tailpiece. Baldwin Baldwin Schlage Kwikset Depends on the length of your tailpiece. Emtek Omnia Weiser Weslock Page 13... -
Page 14: Insert Adapter Into Danalock
10. Insert adapter into Danalock Insert the selected tailpiece adapter into your Danalock and press until it clicks in place. Page 14... -
Page 15: Fit And Fasten Danalock
11. Fit and fasten Danalock Fit the Danalock onto the backplate with the battery cover facing down, the tailpiece sliding into the adapter and the backplate notches into the back of the lock. Tailpiece Backplate Battery cover facing dow n... -
Page 16: Align The Platemarks
12. Align the platemarks Find the small marking at the edge of the backplate and align it with the hole in the cover ring surrounding the Danalock. Now you are sure to hit the notches on the backplate with the Danalock. Page 16... -
Page 17: Fasten The Danalock
13. Fasten the Danalock Turn the Danalock clockwise until it clicks to fasten it to the backplate. NOTE: If you need to unfasten and retry, see “Uninstall instructions” on p. 21. Page 17... -
Page 18: Activate Batteries
14. Activate batteries Pull out the plastic tab to activate the batteries. A light will flash to confirm the Danalock is ready. Note: If the batteries are disconnected, you will have to re-calibrate the Danalock. Page 18... -
Page 19: Before Completing The Setup
15. Before completing the setup Your Danalock is now attached to the door. Leave the door open, so the lock isn’t influenced when calibrated. Page 19... -
Page 20: Open The Danalock App
16. Open the Danalock app Open the Danalock app you downloaded at the start. When you have logged in you will see your empty keychain. Press ”Add lock” at the bottom of the screen. A guide will now lead you through... -
Page 21: Dismount Instructions
17. Dismount instructions If at any time you need to dismount the Danalock from your door, insert a pen tip into the hole at the top inner edge of the lock and press while turning the lock counter- clockwise until the lock releases. -
Page 22: Led-Signals
18. LED-Signals A LED light on the Danalock indicates the status of several operations with different colours: LED-Mode LED colour Status indication Constant red till light finishes Lock has successfully locked Constant green till light finishes Lock has successfully unlocked Constant white for 3 seconds Power on. -
Page 23: How To Operate The Danalock V3
Danalock into locked position and click once. White Auto calibration Turn the Danalock manually until the door is unlocked and leave the door open while calibrating. Lift the handle if needed. Now click 3 times, after 5 seconds the Danalock will calibrate. - Page 24 www.danalock.com...
