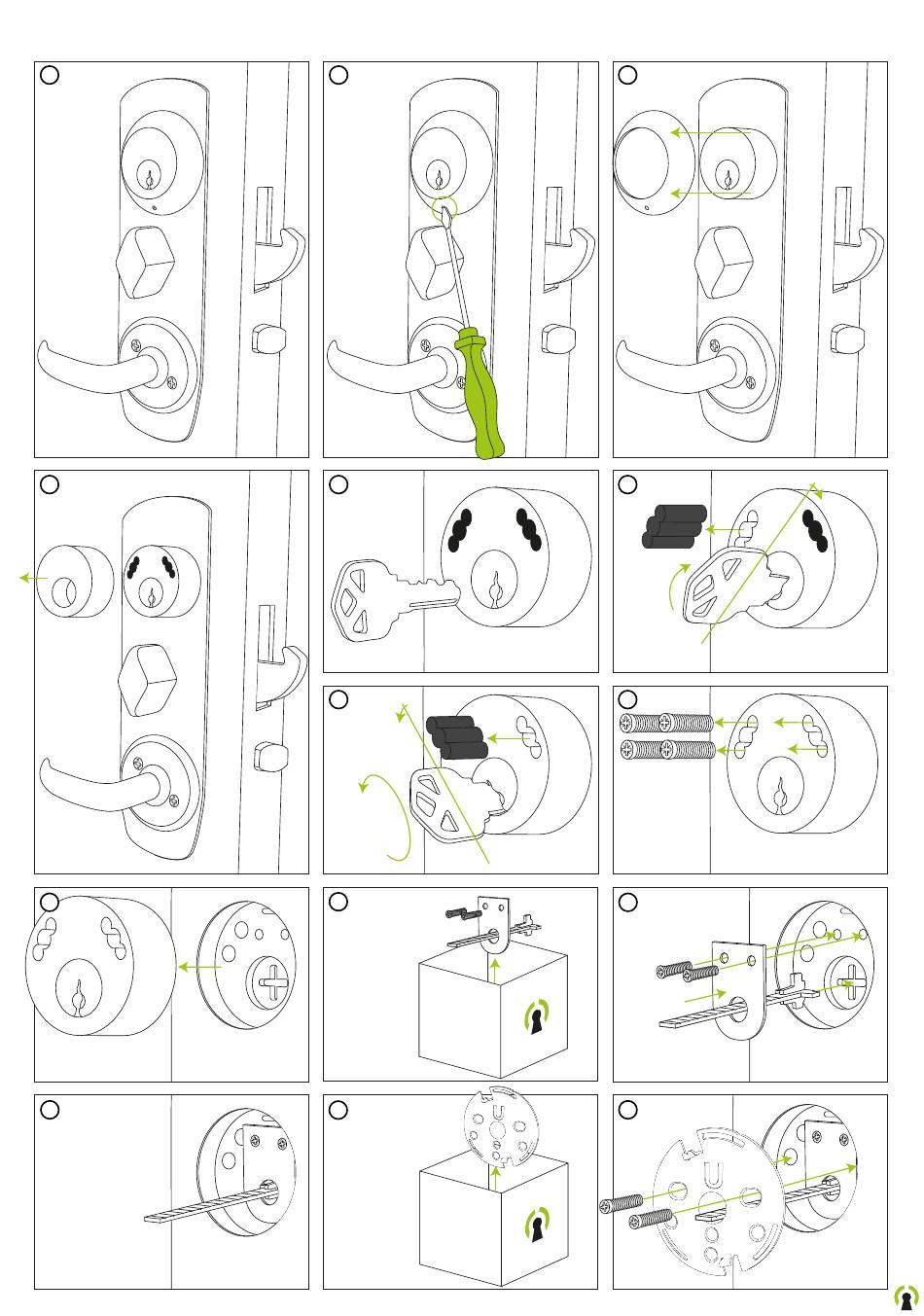

Danalock V3 SCANDI ASSA 2000 install
1
4
9
12
2
5
Insert key.
7
Turn key
in opposite
direction.
10
Find
tailpiece kit
in the box.
13
Find
backplate
in the box.
3
6
Turn key
to pull out
safety plugs.
8
Remove
screws and
save two for
later use.
11
14
Fix the backplate
with the screws
page 1
you saved.
