Summary of Contents for danalock BT100 Circle

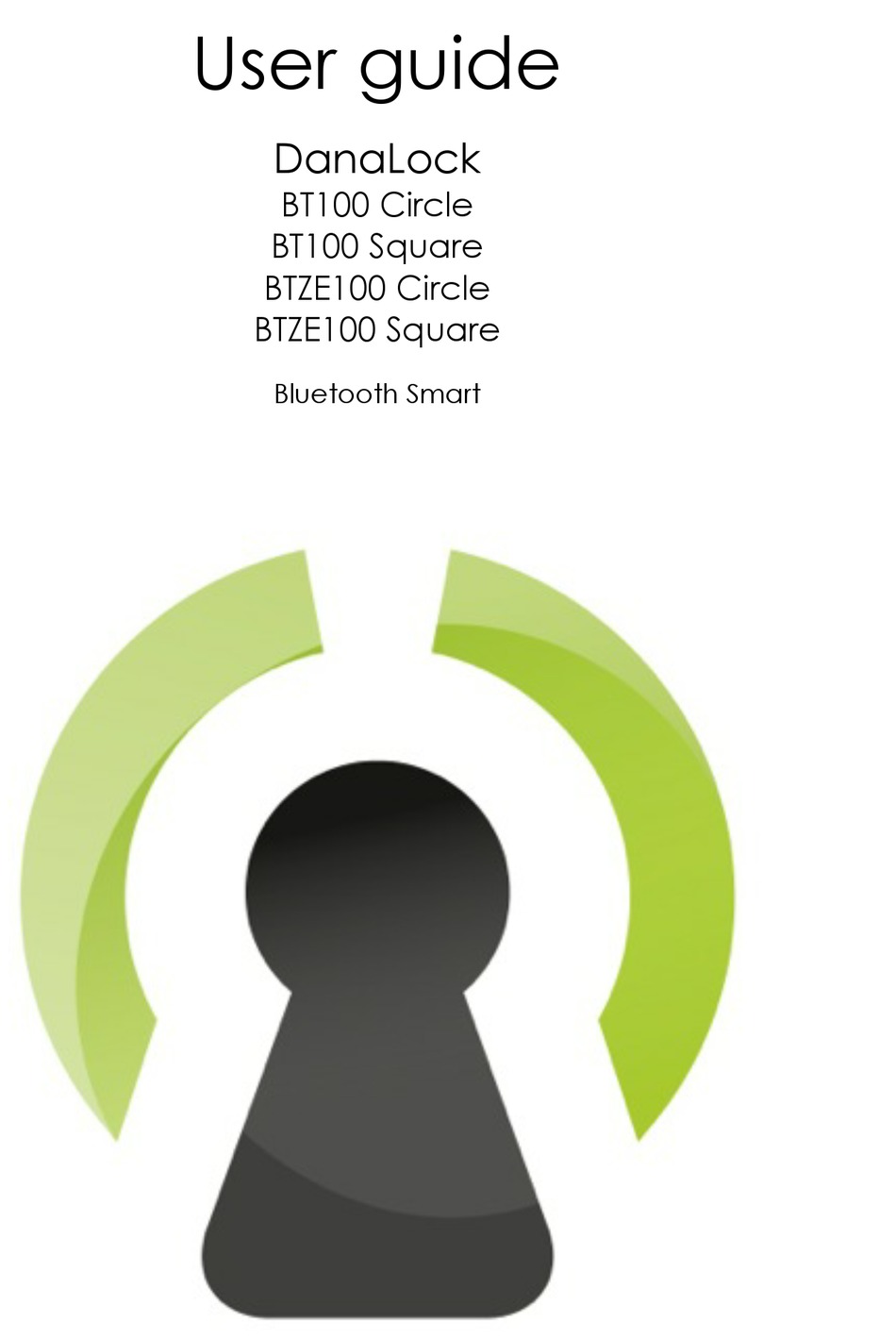

  • Page 1 User guide DanaLock BT100 Circle BT100 Square BTZE100 Circle BTZE100 Square Bluetooth Smart...
  • Page 2 Follow us on Facebook, Twitter, Pinterest and Instagram for more updates on what’s to come and more nice features for your DanaLock. We thrive to have a generic product and to keep you up to date with your DanaLock For guide to the WEB interface please visit our download page.
  • Page 3: Table Of Contents

    Battery settings: Only for DanaLock Circle Bluetooth Smart settings: Z-Wave DanaLock Unpack your DanaLock Activating the batteries Inserting new batteries DanaLock circle DanaLock Square Start operating your DanaLock Including the DanaLock to your Z-Wave network Configuring the DanaLock for your door...
  • Page 4: Unpack Your Danalock

    DanaLock Circle: Remove the folio on top of the batteries. Push the touch button on the face plate, and see the DanaLock operate to make sure you’ve done this correctly. DanaLock Square: insert the pin connector to the plug in the PCB, be sure not to damage the plug in the PCB.
  • Page 5: Inserting New Batteries

    Screw on the battery holder back on, using the included screwdriver. DanaLock Square Remove the faceplate, pushing down the slide on the top of the DanaLock, using the screwdriver included Insert the connector on the battery to the plug as shown below, be care full not to...
  • Page 6: Start Operating Your Danalock

    Start operating your DanaLock Move your smartphone in the nearby of the Danalock, the Bluetooth Smart range should default be approximately 3 meters. Download the DanaLock app: LINK Open your DanaLock App. Push the “Create new user” line...
  • Page 7 Create a new user, with your personal information: Scroll to the button and push “SEND”...
  • Page 8 Now the app will search for DanaLocks in the Bluetooth Smart range of the phone. If you do not have any DanaLock in the proximity it will show a blank key chain. If you do have DanaLocks already connected to your account, these will show up in your keychain.
  • Page 9: For Initial Installation Of Your Danalock

    For initial installation of your Danalock: Iphone: Press the “Menu” button in your top left corner
...
  • Page 10 Press the button “Add new lock” ! 1 0...
  • Page 11 The App will now search for new locks in the nearby, and you will be able to choose the unit you wish to install.
 ! 1 1...
  • Page 12 Press “Install” on the unit you wish to install ! 1 2...
  • Page 13 You will now have to name your unit, you can always change the name in the WEB interface. Type the name in field “Name your lock” and press: The app will tell it is communicating with your DanaLock. You will hear a beeping sound confirming everything went well, and you will get confirmation:...
  • Page 14 If the DanaLock does not show up i your key chain, then go to the menu, in the top left corner and press “refresh keys” Now the your DanaLocks will show up in you key chain and is ready to use, press red and green to lock and unlock.
  • Page 15: Configuring The Danalock For Your Door

    Configuring the Danalock for your door To open setting swipe to the left on the DanaLock you wish to configure. Now you see 3 options: Press the tooth wheel The Smartphone will now communicate with your DanaLock to get the user configuration currently in your DanaLock.
  • Page 16: General Danalock User Settings

    Know you have 3 settings options, push either to enter: General DanaLock user settings: This gives you the possibility to configure: ! 1 6...
  • Page 17 How many degrees shall the DanaLock turn for locking and unlocked, you can put in any number you need. Auto-Lock time: You can make the DanaLock auto lock when you have unlocked it. The number indicates after how many seconds the DanaLock shall lock e.g. 10 seconds.
  • Page 18 Press “SAVE” when finished, make sure communication is ok with the Danalock, you will return to your keychain, and you will get an audio indication that everything went well. ! 1 8...
  • Page 19: Battery Settings: Only For Danalock Circle

    Battery settings: Only for DanaLock Circle This option is to setup the battery being used and how the low the battery shall run before you get an alarm indication: Choose type: “3.6 volt” When using original DanaLock Lithium Chloride CR123 batteries “3.0 Volt”...
  • Page 20 30% to be sure to have the time to switch the batteries. Press “SAVE” when finished, make sure communication is ok with the Danalock, you will return to your keychain, and you will get an audio indication that everything went well.
  • Page 21: Bluetooth Smart Settings

    This can be useful if you have problems connecting to the DanaLock form the outside of your door. Advertising: How often shall the Danalock wake up to look for a open or close command: 1 = 1 time/2 sec 2 = 1 time/1 sec...
  • Page 22 Press “SAVE” when finished, make sure communication is ok with the Danalock, you will return to your keychain, and you will get an audio indication that everything went well. Your DanaLock is now ready for use. To grant other users access and to send ekeys go to Userguide for DanaWEB interface more info.
  • Page 23 The screen shown initially when you log in to the app. The app will show the keys you have connected to your account. If you are out of proximity of a DanaLock for which you have the key, the key will be douched in your key chain.
  • Page 24 User guide DanaLock ZE100 Circle ZE100 Square ZU100 Circle ZU100 Square Z-WAVE
 ! 2 4...
  • Page 25 Follow us on Facebook, Twitter, Pinterest and Instagram for more updates on what’s to come and more nice features for your DanaLock. We thrive to have a generic product and to keep you up to date with your DanaLock For guide to the WEB interface please visit our download page.
  • Page 26: Z-Wave Danalock

    DanaLock Circle: Remove the folio on top of the batteries. Push the touch button on the face plate, and see the DanaLock operate to make sure you’ve done this correctly. DanaLock Square: insert the pin connector to the plug in the PCB, be sure not to damage the plug in the PCB.
  • Page 27: Start Operating Your Danalock

    Put your gateway into inclusion mode. Now include your DanaLock DanaLock Circle: Touch the touch button in the middle of the face plate until you hear 2 beeps. The gateway and the DanaLock will now exchange security keys and set up the default user configuration.
  • Page 28: Configuring The Danalock For Your Door

    Configuring the DanaLock for your door When the DanaLock is installed on your lock you will probably need to adjust the it The main variables to adjust is: The time the lock is turning, Variable 1 and 2, to make sure that it locks the door...
  • Page 29 Set the values to 1 if it should turn the opposite way. Variable 1 = The value indicates the timeframe specified below DanaLock, the time the lock should be turning when you press unlock DanaLock operating a electric door strike or magnetic door: The time the...
  • Page 30 Variable 4 = Indicates what kind of lock you have in your door. The parameter shall only be set if you want the DanaLock to operate a magnetic door lock or door strike, then you have to set this parameter to 3...
