danalock V3 US Manual

Hide thumbs Also See for V3 US:
Table of Contents

Advertisement

Quick Links

Download this manual
Danalock V3 US
www.danalock.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V3 US and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for danalock V3 US

Summary of Contents for danalock V3 US

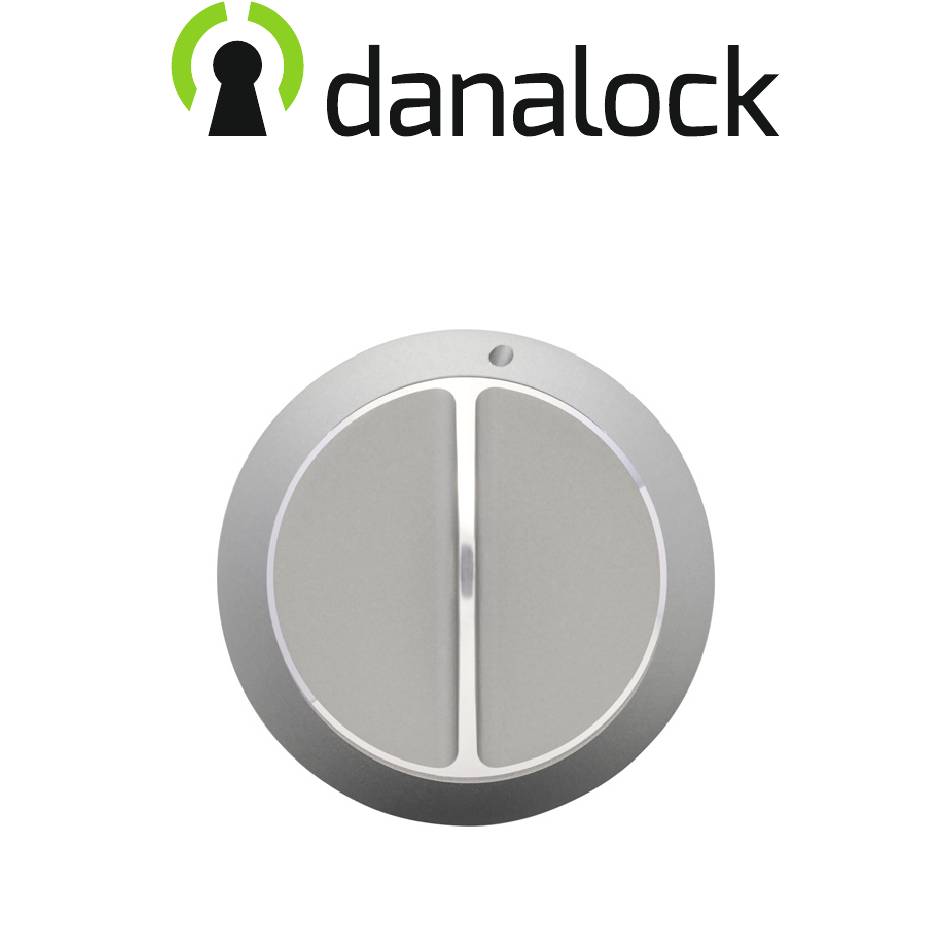

  • Page 1 Danalock V3 US www.danalock.com...

  • Page 2: Table Of Contents

    10. Insert adapter into Danalock 11. Fit and fasten Danalock 12. Align the platemarks 13. Fasten the Danalock 14. Activate batteries 15. Before completing the setup 16. Open the Danalock app 17. Dismount instructions 18. LED-Signals 19. Configuring the Danalock V3 with click-commands...

  • Page 3: Parts Involved

    0. Parts involved...

  • Page 4: Download The Danalock App

    1. Download the Danalock app Go to Google Play or App Store and download the Danalock app. When the app is installed you create a user profile by pressing the blue ring. You will use this profile each time you sign into the app.

  • Page 5: Get Your Tools Together

    2. Get your tools together To install the Danalock, you’ll need a Phillips screw dri ver and tape, preferably masking tape. Should you need to remove or readjust the lock, a pen tip or paper clip will be needed.

  • Page 6: Check Door Alignment

    3. Check door alignment Ensure that your door is properly aligned before beginning instal- lation. You should be able to lock your door without pushing, pulling, or lifting the door. Thumb-turn must move and lock smoothly.

  • Page 7: Secure Outside Keyhole

    4. Secure outside keyhole Before removing your existing lock, use tape to secure the outside keyhole. This will keep it in place as you remove the screws on the inside.

  • Page 8: Remove Inside Thumb-Turn

    5. Remove inside thumb-turn Remove the inside thumb-turn, leaving just the deadbolt and tail- piece remaining. Set aside the screws. You’ll reinstall them in step 8.

  • Page 9: Select A Backplate

    6. Select a backplate Find the backplate that matches the brand of your existing lock.

  • Page 10: Remove The Paper From The Stickers

    7. Remove the paper from the stickers On the backside of the backplate you’ll find three stickers. Remove the paper from the stickers.

  • Page 11: Fasten Backplate

    8. Fasten backplate Fasten the backplate where the thumb-turn was using the two origin al screws, with the arrow on the label pointing up. The notches on the backplate must be facing out with the tailpiece centered exactly in the middle hole. Original sc rews...

  • Page 12: Select Tailpiece Adapter

    9. Select tailpiece adapter Select the tailpiece adapter that matches the shape of your existing lock’s tailpiece. Baldwin Baldwin Schlage Kwikset Depends on the length of your tailpiece. Emtek Omnia Weiser Weslock...

  • Page 13: Insert Adapter Into Danalock

    10. Insert adapter into Danalock Insert the selected tailpiece adapter into your Danalock and press until it clicks in place.

  • Page 14: Fit And Fasten Danalock

    11. Fit and fasten Danalock Fit the Danalock onto the backplate with the battery cover fac- ing down, the tailpiece sliding into the adapter and the backplate notches into the back of the lock. Tailpiece Backplate Battery cover facing down...

  • Page 15: Align The Platemarks

    12. Align the platemarks Find the small marking at the edge of the backplate and align it with the hole in the cover ring surrounding the Danalock. Now you are sure to hit the notches on the backplate with the Danalock.

  • Page 16: Fasten The Danalock

    13. Fasten the Danalock Turn the Danalock clockwise until it clicks to fasten it to the backplate. NOTE: If you need to unfasten and retry, see “Uninstall instructions” on p. 22.

  • Page 17: Activate Batteries

    14. Activate batteries Pull out the plastic tab to activate the batteries. A light will flash to confirm the Danalock is ready. Note: If the batteries are disconnected, you will have to re-calibrate the Danalock.

  • Page 18: Before Completing The Setup

    15. Before completing the setup Your Danalock is now attached to the door. Leave the door open, so the lock isn’t influenced when calibrated.

  • Page 19: Open The Danalock App

    16. Open the Danalock app Open the Danalock app you downloaded at the start. When you have logged in you will see your empty keychain. Press ”Add lock” at the bottom of the screen. A guide will now lead you...

  • Page 20: Dismount Instructions

    17. Dismount instructions If at any time you need to dismount the Danalock from your door, in- sert a pen tip into the hole at the top inner edge of the lock and press while turning the lock counter- clockwise until the lock releases.

  • Page 21: Led-Signals

    18. LED-Signals A LED light on the Danalock indi- cates the status of several opera- tions with different colours: LED-Mode LED color Status indication Constant red till light finishes Lock has successfully locked Constant green till light finishes Lock has successfully unlocked Constant white for 3 seconds Power on.

  • Page 22: Configuring The Danalock V3 With Click-Commands

    When you get to the setting you want to change, wait for 5 seconds and the Danalock will react to your command. If you make a wrong number of clicks, just stop at a number of clicks where the LED doesn’t light up and wait for 5 seconds.
  • Page 23 Green Inclusion mode This mode is used to in- or exclude your Danalock with a Z-Wave or Zigbee gateway. When the Danalock blinks green it is in ex/inclusion mode and you have 30 seconds to pair the Danalock with a gateway.
  • Page 24 Danalock International ApS Gammel Stillingvej 427C 8462 Harlev, DK +45 4242 8122 info@danalock.com www.danalock.com DV3-US-EN-2018/09/13...
