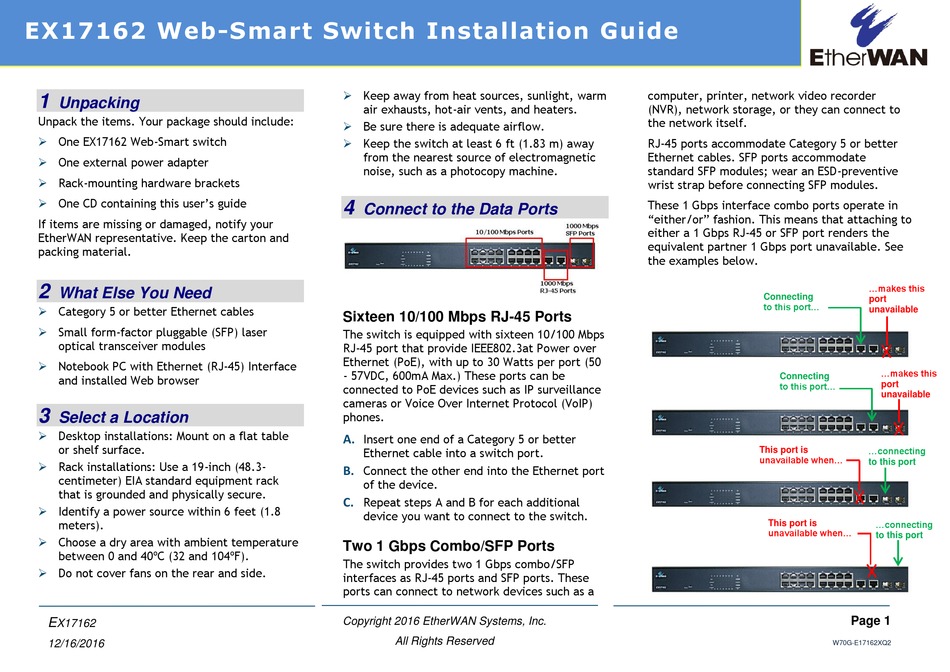

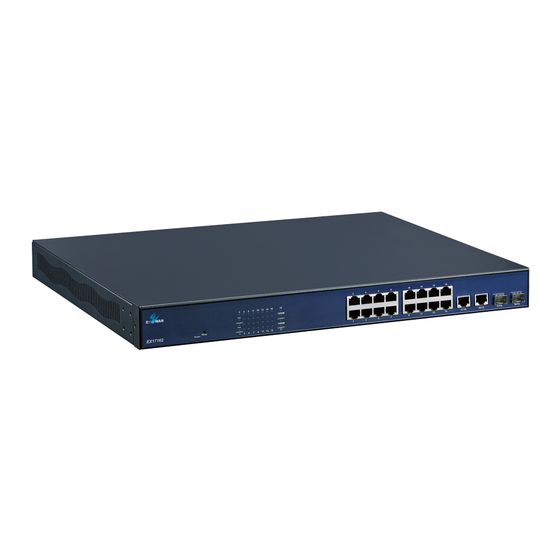

EX17162 Web-Smart Switch Installation Guide
1

Unpacking

Unpack the items. Your package should include:
One EX17162 Web-Smart switch

 One external power adapter
Rack-mounting hardware brackets

One CD containing this user's guide

If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2

What Else You Need

Category 5 or better Ethernet cables

 Small form-factor pluggable (SFP) laser
optical transceiver modules
 Notebook PC with Ethernet (RJ-45) Interface
and installed Web browser
3

Select a Location

Desktop installations: Mount on a flat table

or shelf surface.
Rack installations: Use a 19-inch (48.3-

centimeter) EIA standard equipment rack
that is grounded and physically secure.
 Identify a power source within 6 feet (1.8
meters).
 Choose a dry area with ambient temperature
between 0 and 40ºC (32 and 104ºF).
 Do not cover fans on the rear and side.
E
X17162
12/16/2016
Keep away from heat sources, sunlight, warm

air exhausts, hot-air vents, and heaters.
 Be sure there is adequate airflow.
Keep the switch at least 6 ft (1.83 m) away

from the nearest source of electromagnetic
noise, such as a photocopy machine.
4

Connect to the Data Ports

Sixteen 10/100 Mbps RJ-45 Ports
The switch is equipped with sixteen 10/100 Mbps
RJ-45 port that provide IEEE802.3at Power over
Ethernet (PoE), with up to 30 Watts per port (50
- 57VDC, 600mA Max.) These ports can be
connected to PoE devices such as IP surveillance
cameras or Voice Over Internet Protocol (VoIP)
phones.
Insert one end of a Category 5 or better
A.
Ethernet cable into a switch port.
Connect the other end into the Ethernet port
B.
of the device.
Repeat steps A and B for each additional
C.
device you want to connect to the switch.
Two 1 Gbps Combo/SFP Ports
The switch provides two 1 Gbps combo/SFP
interfaces as RJ-45 ports and SFP ports. These
ports can connect to network devices such as a
Copyright 2016 EtherWAN Systems, Inc.
All Rights Reserved
computer, printer, network video recorder
(NVR), network storage, or they can connect to
the network itself.
RJ-45 ports accommodate Category 5 or better
Ethernet cables. SFP ports accommodate
standard SFP modules; wear an ESD-preventive
wrist strap before connecting SFP modules.
These 1 Gbps interface combo ports operate in
"either/or" fashion. This means that attaching to
either a 1 Gbps RJ-45 or SFP port renders the
equivalent partner 1 Gbps port unavailable. See
the examples below.
Connecting
to this port...
Connecting
to this port...
This port is
unavailable when...
This port is
unavailable when...
...makes this
port
unavailable
...makes this
port
unavailable
...connecting
to this port
...connecting
to this port
