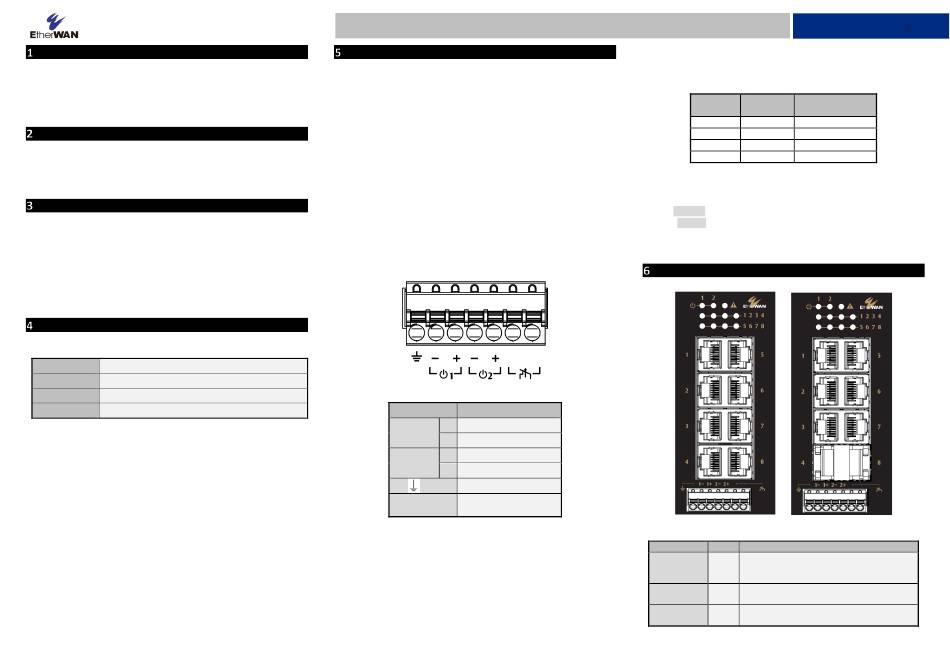

EtherWAN OttoE TF100 Series Installation Manual

Unpacking
Open the carton and unpack the items. Your package should include:
▪

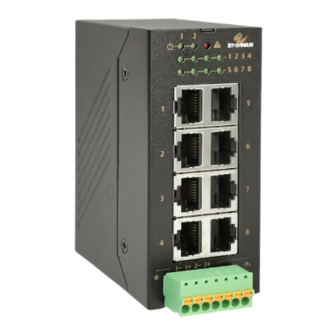

OttoE TF100(H) or TG100(H) series switch. Note that the (H) indicates
hardened models.
If any items are missing or damaged, notify your EtherWAN representative. If
possible, save the carton and packing material in case you need to ship or store the
switch in the future.
What Else You Need
▪
Appropriate cables for data ports. To prevent damage to the switch from
electrical surges, it is recommended to use STP (Shielded twisted pair)
cabling.
▪
Personal computer or laptop
▪
Appropriate SFP modules for SFP ports
Select a Location
▪
Installations: DIN-Rail mount.
▪
Select a power source within 6 feet (1.8 meters).
▪
Choose a dry area with ambient temperature between -10 and 60ºC (-14
and 140ºF) for OttoE TF100 and TG100.
▪
Choose a dry area with ambient temperature between -40 and 75ºC (-40 to
167ºF) for OttoE TF100H and TG100H.
▪
For use at altitudes up to 2000 meters, indoor use only.
▪
Humidity range (Operational): 5% to 95%, non-condensation
▪
For use in Pollution Degree 2 environment.
Connect to the Data Ports
Depending on the model, your switch can have the following ports:
TF100(H)-0800 8 port TX 10/100Mbps
TF100(H)-0602 6 port TX 10/100Mbps & 2port SFP 100Mbps
TG100(H)-0800 8 port TX 10/100/1000Mbps
TG100(H)-0602 6 port TX 10/100/1000Mbps & 2 port SFP 100/1000Mbps
To prevent damage to the switch from electrical surges, it is recommended to use
STP (Shielded twisted pair) cabling.
W70G-TG-TFQIG6 Page 1
OttoE TF100(H)/TG100(H) Series | Unmanaged Ethernet Switch
Connect Power
The switch has two pairs of power inputs. Only one power input is required to
operate the switch. However, redundant power supply functionality is supported.
Power rating:
▪
Model TF100(H)-0800: 9-55 VDC, 0.25-0.05 A
▪
Model TF100(H)-0602: 9-55 VDC, 0.35-0.1 A
▪
Model TG100(H)-0800: 9-55 VDC, 0.5-0.1 A
▪
Model TG100(H)-0602: 9-55 VDC, 0.6-0.15 A
The power input specification complies with the requirements of SELV (Safety
Extra Low Voltage), and the power supply should comply with UL 61010-1 and UL
61010-2-201.
Terminal Block
The switch provides two power inputs on a 9-55 VDC terminal block. The terminal
block has 7 terminal posts.
Pin Description
+
9-55VDC
Power 1
−
Power Ground
+
9-55VDC
Power 2
−
Power Ground
Earth Terminal
Relay Output
0.5A @30VDC
Rating
Copyright 2022 EtherWAN Systems, Inc. All Rights Reserved 06/26/2023
Installation Guide
Relay Output Alarm
The switch provides a relay output contact. The relay is for signaling of a user-
defined power redundancy failure. The current is 0.5A@30VDC at Normal Open
or Normal Close.
POWER1 POWER2 RELAY contact
INPUT INPUT
X X Open, Start alarm
O X Open, Start alarm
X O Open, Start alarm
O O Close, Non-alarm
Power-Up Sequence
When the switch is powered up:
▪
All Link/ACT LEDs blink momentarily.
▪
The Power 1 LED light goes ON.
▪
LEDs for every port connected to a device will flash, as the switch conducts a
brief Power On Self-Test (POST).
Front Panel LEDs
TF100(H)-0800
TG100(H)-0800 TG100(H)-0602
LED Color Status
LED On: Link
L/A
Green LED Off: No Link
(Link/Active)
LED blinking: Data Transmission
LED On: Power On
PWR 1&2 Green
LED Off: Power Off
LED On: Error Power Redundancy Detection
Alarm Red
LED Off: No Power Error Condition
TF100(H)-0602
