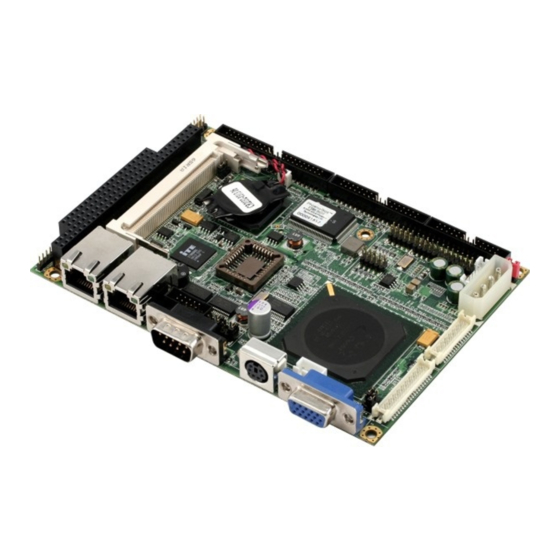

SubCompact Board
GENE -5315
GENE-5315
®
AMD
Geode
LX800/900 series Processors
RTL8139DL for 10/100Mbps
Type II CompactFlash
2 COM (Rev.A), 5 COM (Rev.B)
4 USB2.0, 1 IrDA
Type III Mini PCI
GENE-5315 Manual Rev.A + B 5th Ed.
November 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GENE-5315-A13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aaeon GENE-5315-A13

Summary of Contents for Aaeon GENE-5315-A13

  • Page 1 SubCompact Board GENE -5315 GENE-5315 ® Geode LX800/900 series Processors RTL8139DL for 10/100Mbps Type II CompactFlash 2 COM (Rev.A), 5 COM (Rev.B) 4 USB2.0, 1 IrDA Type III Mini PCI GENE-5315 Manual Rev.A + B 5th Ed. November 2020...
  • Page 2 AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
  • Page 3 SubCompact Board GENE -5315 Acknowledgments All other products’ name or trademarks are properties of their respective owners.  Award is a trademark of Award Software International, Inc.  CompactFlash™ is a trademark of the Compact Flash Association.  AMD, the AMD Arrow logo and combinations thereof are trademarks of Advanced Micro Devices, Inc.
  • Page 4 SubCompact Board GENE -5315 Packing List Before you begin installing your card, please make sure that the following materials have been shipped: • 1 9681531501 Cable Kit for GENE-5315 ➢ 1700060192 Keyboard & Mouse Cable ➢ 1709100201 USB Cable ➢ IDE Cable 3.5”...

  • Page 5: Table Of Contents

    SubCompact Board GENE -5315 Contents Chapter 1 General Information 1.1 Introduction ..............1-2 1.2 Features ..............1-3 1.3 Specifications ............1-4 Chapter 2 Quick Installation Guide 2.1 Safety Precautions ............ 2-2 2.2 Connectors, Jumpers and Mechanical Drawings ..2-3 2.3 List of Jumpers ............2-9 2.4 List of Connectors .............
  • Page 6 SubCompact Board GENE -5315 2.17 USB Port #1 and Port #2 (CN5) ......2-17 2.18 Digital I/O Connector (CN6) ........2-17 2.19 Audio Input/Output/Cdin/MIC (CN7) ......2-18 2.20 ATX External 5VSB (CN8) ........2-18 2.21 4P Power Socket (CN9) .......... 2-19 2.22 LVDS Connector (CN10) .........
  • Page 7 SubCompact Board GENE -5315 2.40 Compact Flash Disk Slot (CFD1) ......2-29 2.41 Mini-PCI Slot (MPCI1) ..........2-30 2.42 DDR SODIMM Slot (DIMM1) ........2-30 Chapter 3 Award BIOS Setup 3.1 System Test and Initialization........3-2 3.2 Award BIOS Setup ............ 3-3 Chapter 4 Driver Installation 4.1 Software Drivers ............
  • Page 8 SubCompact Board GENE -5315 Appendix B Mating Connector B.1 List of Mating Connectors and Cables....B-2...

  • Page 9: Chapter 1 General Information

    SubCompact Board GENE -5315 Chapter General Information 1- 1 Chapter 1 General Information...

  • Page 10: Introduction

    SubCompact Board GENE -5315 1.1 Introduction AAEON, a leading embedded boards manufacturer, is pleased to announce the debut of their new generation 3.5” SubCompact Board—GENE-5315. The GENE-5315 not only completes AAEON’s product line of Subcompact boards, but also balances performance and cost in the embedded market.

  • Page 11: Features

    SubCompact Board GENE -5315 1.2 Features  Onboard AMD Geode LX 800/LX900 processors  SODIMM DDR 333 Max. 1GB, DDR 400 Max. 512MB  Up to 24-bit Single Channel LVDS TFT LCD  Dual 10/100Mbps Ethernet  Type III Mini-PCI and PC/104 (For Rev.A Only) Expansions ...

  • Page 12: Specifications

    SubCompact Board GENE -5315 1.3 Specifications System  Processor Onboard AMD Geode LX800/ LX900 Series Processor  System Memory 200-pin DDR SODIMM x 1, Max. 1GB for DDR333 and 512MB for DDR 400  Chipset AMD LX series + CS5536 ...
  • Page 13 SubCompact Board GENE -5315 Display Supports CRT/LCD simultaneous display  Chipset AMD LX series + TI SN75LVDS83  Memory Shared system memory up to 254 MB  LCD Interface Up to 24-bit TTL/LVDS TFT LCD  Resolution Up to 1920 x 1440 @ 24bpp for CRT Up to 1600 x 1200 @ 24bpp for LCD ...
  • Page 14 SubCompact Board GENE -5315 Chapter Quick Installation Guide Notice: The Quick Installation Guide is derived from Chapter 2 of user manual. For other chapters further installation instructions, please refer to the user manual CD-ROM that came with the product. Part No. 2007531522 Printed in Taiwan November 2008 2 - 1 Chapter 2 Quick Installation Guide...

  • Page 15: Safety Precautions

    SubCompact Board GENE -5315 2.1 Safety Precautions Always completely disconnect the power cord from your board whenever you are working on it. Do not make connections while the power is on, because a sudden rush of power can damage sensitive electronic components. Always ground yourself to remove any static charge before touching the board.
  • Page 16 SubCompact Board GENE -5315 2.2 Jumpers, Connectors, and Mechanical Drawings GENE-5315 Rev.A Component Side CN20 CN14 CN18 CN21 CN19 CN13 BAT1 CN16 CN15 CN11 CN17 2 - 3 Chapter 2 Quick Installation Guide...
  • Page 17 SubCompact Board GENE -5315 Solder Side 132.84 DIMM1 66.04 52.59 CFD1 12.43 0.00 2 - 4 Chapter 2 Quick Installation Guide...
  • Page 18 SubCompact Board GENE -5315 Mechanical Drawings HEATSINK HEIGHT (13.20) (12.55) (1.60) 137.16 133.93 133.93 132.27 132.56 131.95 125.81 125.56 123.73 120.27 119.27 108.27 106.68 97.98 92.07 91.07 87.14 86.17 (13.00) 78.73 61.13 53.95 50.46 50.09 47.18 38.31 38.11 37.73 19.06 17.40 10.77 4.70...
  • Page 19 SubCompact Board GENE -5315 GENE-5315 Rev.B Component Side CN20 CN14 CN21 CN18 CN19 CN13 BAT1 CN16 CN15 2 - 6 Chapter 2 Quick Installation Guide...
  • Page 20 SubCompact Board GENE -5315 Solder Side 132.84 DIMM1 66.04 52.53 CFD1 12.43 0.00 8.89 2 - 7 Chapter 2 Quick Installation Guide...
  • Page 21 SubCompact Board GENE -5315 Mechanical Drawings HEATSINK HEIGHT (13.20) (12.55) 137.16 133.93 133.93 132.22 131.95 125.75 125.56 123.73 120.27 114.94 106.60 96.71 92.07 91.07 85.92 84.27 (13.00) 61.13 59.49 50.46 47.18 37.85 33.66 14.61 10.77 1.02 5.84 0.00 0.00 1.52 5.01 4.56 4.06...

  • Page 22: List Of Jumpers

    SubCompact Board GENE -5315 2.3 List of Jumpers The board has a number of jumpers that allow you to configure your system to suit your application. The table below shows the function of each of the board's jumpers: Label Function AT/ATX Power Type Selection CFD Master/Slave Selection Clear CMOS...

  • Page 23: List Of Connectors

    SubCompact Board GENE -5315 2.4 List of Connectors The board has a number of connectors that allow you to configure your system to suit your application. The table below shows the function of each of the board’s connectors: Note: For further information about mating connectors, please refer to the appendix of the manual.
  • Page 24 SubCompact Board GENE -5315 CN18 Mini-Din PS/2 CN19 Serial Port #1 CN20 CRT Display CN21 USB Port #3 and Port #4 CN22 LCD Inverter Voltage CN23 Serial Port #3 (For Rev. B only) CN24 Serial Port #5 (For Rev. B only) CN25 Serial Port #4 (For Rev.

  • Page 25: Setting Jumpers

    SubCompact Board GENE -5315 2.5 Setting Jumpers You configure your card to match the needs of your application by setting jumpers. A jumper is the simplest kind of electric switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.

  • Page 26: At/Atx Power Type Selection (Jp1)

    SubCompact Board GENE -5315 2.6 AT/ATX Power Type Selection (JP1) Function ATX Power Supply AT Power Supply (Default) 2.7 CFD Master/Slave Selection (JP2) Function Slave Master (Default) 2.8 Clear CMOS (JP3) Function Normal (Default) Clear CMOS 2.9 LCD Clock and LVDS Operating Voltage Selection (JP4) Clock Function Normal (Default)

  • Page 27: Com Ports Ri/+5V/+12V Selection (Jp5)

    SubCompact Board GENE -5315 2.10 COM Ports RI/+5V/+12V Selection (JP5) CO M 1 Function +12V RI (Default) COM 2 Function +12V 9-10 11-12 RI (Default) 2.11 Inverter Voltage Selection (JP6) Function +5V (Default) +12V 2.12 CFD Voltage Selection (JP7) (For Rev. B only) Function +5V (Default) +3.3V...

  • Page 28: Floppy Connector (Cn2)

    SubCompact Board GENE -5315 Ground N.C. DREQ Ground IOW# Ground IOR# Ground IORDY Ground DACK# Ground IRQ14 N.C. PDIAG# CS#1 CS#3 Active LED# Ground +5Volt. +5Volt. Ground N.C. Note: The IDE interface on GENE-5315 supports two IDE devices including CF card. If you use a CF card, GENE-5315 allows one IDE device.

  • Page 29: Parallel Port Connector (Cn3)

    SubCompact Board GENE -5315 Ground INDEX# Ground MTRA# Ground DRVB# Ground DRVA# Ground MTRB# Ground DIR# Ground STEP# Ground WDATA# Ground WGATE# Ground TRK0# Ground WPT# N.C. RDATA# Ground HDSEL# N.C. DSKCHG# 2.15 Parallel Port (CN3) Signal Signal STB# AFD# PTD0 ERR# PTD1...

  • Page 30: Front Panel Connector (Cn4)

    SubCompact Board GENE -5315 SLCT N.C. 2.16 Front Panel Connector (CN4) Signal Signal Power On Button (-) Power On Button (+) IDE LED (-) IDE LED (+) External Buzzer (-) External Buzzer (+) Power LED (-) Power LED (+) Reset Switch (-) Reset Switch (+) 2.17 USB Port #1 and Port #2 (CN5) Signal...

  • Page 31: Audio Input/Output/Cdin/Mic (Cn7)

    SubCompact Board GENE -5315 DIO-2 CN6 Pin 2 Bit 6 U1 Pin 21 (GPIO 26) DIO-3 CN6 Pin 3 Bit 5 U1 Pin 22 (GPIO 25) DIO-4 CN6 Pin 4 Bit 4 U1 Pin 23 (GPIO 24) DIO-5 CN6 Pin 5 Bit 3 U1 Pin 24 (GPIO 23) DIO-6...

  • Page 32: Power Socket (Cn9)

    SubCompact Board GENE -5315 +5 Volt. Standby 2.21 4P Power Socket (CN9) Signal +12 Volt. Ground Ground +5 Volt. 2.22 LVDS LCD Connector (CN10) Signal Signal N.C. N.C. Ground CLK- CLK+ Ground N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C.

  • Page 33: Pc/104 (Cn11) (For Rev.a Only)

    SubCompact Board GENE -5315 2.23 PC/104 (CN11) (For Rev. A only) J1/P1 IOCHCK* RSTDRV IRQ9 DRQ2 -12V ENDXFR* +12V IOCHRDY GND/KEY SMEMW* SMEMR* IOW* IOR* DACK3* DRQ3 DACK1* DRQ1 REFRESH* SYSCLK IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2* BALE 2 - 20 Chapter 2 Quick Installation Guide...
  • Page 34 SubCompact Board GENE -5315 J2/P2 MEMCS16* SBHE* IOCS16* LA23 IRQ10 LA22 IRQ11 LA21 IRQ12 LA20 IRQ15 LA19 IRQ14 LA18 DACK0* LA17 DRQ0 MEMR* DACK5* MEMW* DRQ5 DACK6* DRQ6 SD10 DACK7* SD11 DRQ7 SD12 SD13 MASTER* SD14 SD15 GND/KEY Note 1: GENE-5315 does not support PC/104 way legacy ISA-DMA mode caused by AMD architecture.

  • Page 35: Ttl Lcd (Cn12)

    SubCompact Board GENE -5315 Geode’s architecture limitation. The following steps for setup the resources manually for your reference. Retrieve the resource of the PC/104 card. The information is typically contained in the manual of the PC/104 card. Push a function key “Delete” to get into the BIOS. Enable the resource of the device in BIOS setup.
  • Page 36 SubCompact Board GENE -5315 Ground Ground Clock VSYNC HSYNC N.C. N.C. For 18-bit TFT LCD Signal Signal +5Volt. +5Volt. Ground Ground +3.3Volt. +3.3Volt. N.C. Ground N.C. N.C. N.C. N.C. Ground Ground Clock VSYNC 2 - 23 Chapter 2 Quick Installation Guide...

  • Page 37: Serial Port #2 (Cn13)

    SubCompact Board GENE -5315 HSYNC N.C. N.C. 2.25 Serial Port #2 (CN13) COM2/ RS-232 Mode Signal Signal DCDB DTRB Ground DSRB RTSB CTSB RIB (+5V/ +12V) N.C. COM2/ RS-422 Mode Signal Signal TXD- RXD+ TXD+ RXD- Ground N.C. N.C. N.C. N.C.

  • Page 38: Ethernet 10/100Base-Tx Rj-45 Phone Jack #1 (Cn15)

    SubCompact Board GENE -5315 +5 Volt. Ground 2.27 Ethernet 10/100 Base-TX RJ-45 Phone Jack #1 (CN15) Signal Signal RXD- RXD+ N.C. N.C. TXD- TXD+ ACT_LED LINK_LED +3.3 Volt. SPD_LED Ground Ground 2.28 Ethernet 10/100 Base-TX RJ-45 Phone Jack #2 (CN16) Signal Signal RXD-...

  • Page 39: Mini-Din Ps/2 Keyboard/Mouse Connector (Cn18)2-26

    SubCompact Board GENE -5315 Ground CIR_RX (Option) 2.30 Mini-DIN PS/2 Keyboard/ Mouse Connector (CN18) Signal Signal Keyboard Data Keyboard Data Ground Ground +5 Volt. +5 Volt. Shield Shield 2.31 Serial Port #1 Connector (CN19) COM 1 Signal Signal DCDA DTRA Ground DSRA RTSA...

  • Page 40: Usb Port #3 And Port #4 (Cn21)

    SubCompact Board GENE -5315 Ground 2.33 USB Port #3 and Port #4 (CN21) Signal Signal Ground Ground Ground Ground 2.34 LCD Inverter Voltage (CN22) Signal Backlight Control Ground Ground Enable 2.35 Serial Port #3 (CN23) (For Rev.B only) COM 3 Signal Signal DCD3...

  • Page 41: Serial Port #5 (Cn24)(For Rev.b Only)

    SubCompact Board GENE -5315 2.36 Serial Port #5 (CN24) (For Rev.B only) COM 5 Signal Signal DCD5 DTR5 Ground DSR5 RTS5 CTS5 N.C. Note: An APM Mode limitation, OS (Operating System) recognizes serial port 5 & 6 of GENE-5315 Rev.B but is reverse. OS will reassign IRQ and give sequence of serial port 5 &...

  • Page 42: External Battery (Bat1)

    SubCompact Board GENE -5315 Note: An APM Mode limitation, OS (Operating System) recognizes serial port 5 & 6 of GENE-5315 Rev.B but is reverse. OS will reassign IRQ and give sequence of serial port 5 & 6 after uninstalling all of serial ports and second time boots in OS.

  • Page 43: Mini-Pci Slot (Mpci1)

    SubCompact Board GENE -5315 DACK# DASP# PDIAG# IO16# Ground Ground 2.41 Mini-PCI Slot (MPCI1) Standard Specification 2.42 DDR SODIMM Slot (DIMM1) Standard SODIMM Slot Note from AMD: Memory configurations supported. Only one DIMM or SODIMM is supported as long as the configuration requirements are met. Devices Max Max GLIU GLCP 4C00000Fh...
  • Page 44 SubCompact Board GENE -5315 Below Table for China RoHS Requirements 产品中有毒有害物质或元素名称及含量 AAEON Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 镉 汞 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 × ○ ○ ○ ○ ○ 及其电子组件 外部信号...

  • Page 45: Chapter 3 Award Bios Setup

    SubCompact Board GENE -5315 Chapter Award BIOS Setup Chapter 3 Award BIOS Setup 3-1...
  • Page 46 SubCompact Board GENE -5315 3.1 System Test and Initialization These routines test and initialize board hardware. If the routines encounter an error during the tests, you will either hear a few short beeps or see an error message on the screen.
  • Page 47 SubCompact Board GENE -5315 3.2 Award BIOS Setup Awards BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off. Entering Setup Power on the computer and press <Del>...
  • Page 48 SubCompact Board GENE -5315 Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize your system performance. Integrated Peripherals Use this menu to specify your settings for integrated peripherals. (Primary slave, secondary slave, keyboard, mouse etc.) Power Management Setup Use this menu to specify your settings for power...
  • Page 49 Save CMOS value changes to CMOS and exit setup. Exit Without Saving Abandon all CMOS value changes and exit setup. You can refer to the “ AAEON BIOS Item Description.pdf” file in the CD for the meaning of each setting in this chapter.

  • Page 50: Chapter 4 Driver Installation

    SubCompact Board GENE -5315 Chapter Driver Installation 4 - 1 Chapter 4 Driver Installation...

  • Page 51: Software Drivers

    SubCompact Board GENE -5315 4.1 Software Drivers This chapter describes the operation and installation of the display drivers supplied on the Supporting CD-ROM that are shipped with your product. The onboard VGA adapter is based on the AMD LX VGA Flat Panel/CRT controller. This controller offers a large set of extended functions and higher resolutions.

  • Page 52: Necessary To Know

    SubCompact Board GENE -5315 4.2 Necessary to Know The instructions in this manual assume that you understand elementary concepts of MS-DOS and the IBM Personal Computer. Before you attempt to install any driver from the Supporting CD-ROM, you should:  Know how to copy files from a CD-ROM to a directory on the hard disk ...

  • Page 53: Installing Vga Driver

    SubCompact Board GENE -5315 4.3 Installing VGA Driver Win XP / Win XPe VGA Place the Driver CD-ROM into your CD-ROM drive and follow the steps below to install. 1. Click on Start button. 2. Click on Settings button. 3. Click on Control Panel button. 4.

  • Page 54: Installing Aes Driver

    SubCompact Board GENE -5315 4.4 Installing AES Driver Win XP / Win XPe AES Place the Driver CD-ROM into your CD-ROM drive and follow the steps below to install. 1. Click on Start button. 2. Click on Settings button. 3. Click on Control Panel button. 4.

  • Page 55: Installing Pci To Isa Bridge Driver

    SubCompact Board GENE -5315 4.5 Installing PCI to ISA Bridge Driver (For Rev.A only) Win XP / Win XPe System Place the Driver CD-ROM into your CD-ROM drive and follow the following steps to install. 1. Click on Start button. 2.

  • Page 56: Installing Ethernet Driver

    SubCompact Board GENE -5315 4.6 Installing Ethernet Driver 1. Click on the Step 4 – Lan folder. 2. Double click on the Setup file located in the folder. 3. Follow the instructions that the window shows. 4. The system will help you install the driver automatically. 4.7 Ethernet Software Configuration The onboard Ethernet interface supports all major network operating systems.

  • Page 57: Installing Audio Driver

    SubCompact Board GENE -5315 information. After you have made your selections and the configuration is what you want, press <ESC>. A prompt will appear asking if you want to save the configuration. Press "Y" if you want to save. There are three very useful diagnostic functions offered in the Ethernet Setup Menu as follows: 1.
  • Page 58 SubCompact Board GENE -5315 8. Click on Next. 9. Select Search for a suitable driver…, then click on Next. 10. Select Specify a location, then click on Next. 11. Click on Browse. 12. Select “LXWDMAu” file from CD-ROM (Drivers/Step 5 – Audio) then click on Open.
  • Page 59 SubCompact Board GENE -5315...

  • Page 60: Appendix A I/O Information

    SubCompact Board GENE -5315 Appendix I/O Information A - 1 Appendix A I/O Information...

  • Page 61: I/O Address Map

    SubCompact Board GENE -5315 A.1 I/O Address Map Address Description User Address 000-01F DMA Controller #1 000-000F 020-03F Interrupt Controller #1, Master 020-021 040-05F System Time 040-043 060-06F 8042 (Keyboard Controller) 060-064 Real time Clock, NMI (non-maskable 070-07F 070-073 Interrupt) Mask 080-09F DMA Page Register 080-08F...

  • Page 62: Irq Mapping Chart For Rev.a

    SubCompact Board GENE -5315 A.3 IRQ Mapping Chart for Rev.A IRQ0 System Timer IRQ8 System CMOS / Real time clock IRQ9 Microsoft ACPI – IRQ1 Keyboard Compliant system IRQ2 Cascade to IRQ Controller IRQ10 Unused IRQ3 COM2 IRQ11 Unused IRQ4 COM1 IRQ12 PS/2 mouse IRQ5 Unused IRQ13 FPU...
  • Page 63 SubCompact Board GENE -5315 Appendix Mating Connector B - 1 Appendix B Mating Connector...
  • Page 64 SubCompact Board GENE -5315 B.1 List of Mating Connectors and Cables The table notes mating connectors and available cables. Function Mating Connector Cable P/N Connector Available Label Cable Vendor Model no MOLEX 87568-4463 1701440500 Connector Cable 1701340600 Floppy A2016H-N-2X Floppy Connector 17P-A Disk...
  • Page 65 SubCompact Board GENE -5315 CN14 System FAN Hobase 2503-H-3 Connector Technology CN15 Ethernet Neltron 7001-8P8C Connector CN16 Ethernet Neltron 7001-8P8C Connector CN17 IrDA Neltron 2026A-06 Connector CN18 1700060192 Mini-Din Catch MD06F011 Keyboar PS/2 Electronics d & Connector Mouse Cable CN19 Serial Port 1 707-09F Connector...
