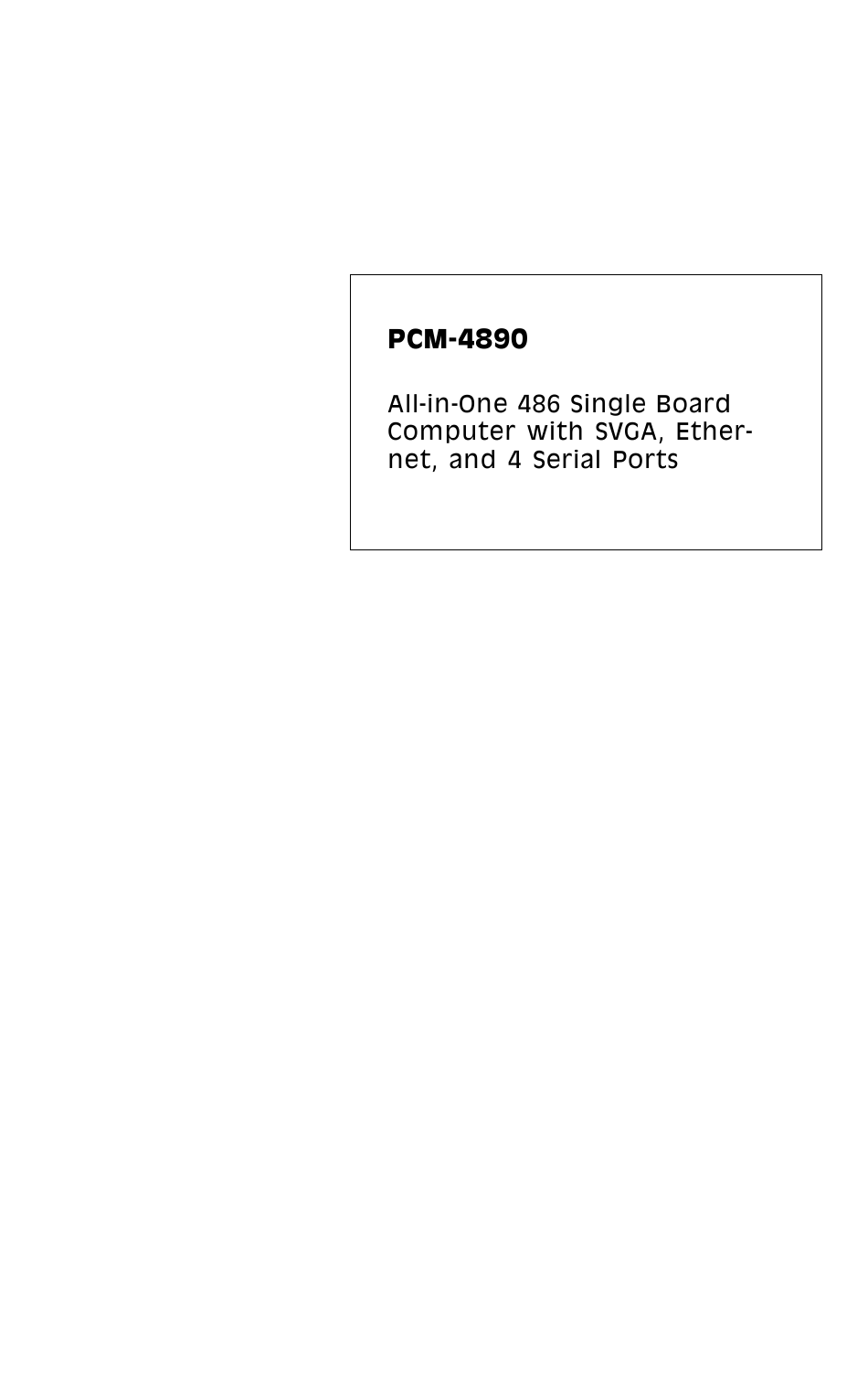

Aaeon PCM-4890 Manual

All-in-one 486 single board computer with svga, ethernet, and 4 serial ports
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM-4890 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aaeon PCM-4890

Summary of Contents for Aaeon PCM-4890

  • Page 2 This document is copyrighted, 1997. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of the original manufacturer.
  • Page 3 Before you begin installing your card, please make sure that the following materials have been shipped: • 1 PCM-4890 All-in-One Single Board Computer • 1 utility disk with system BIOS, VGA BIOS, and Ethernet utility programs • 1 utility disk with SVGA utility programs and drivers for Win- dows 3.1 and Windows 95...
  • Page 4 Introduction ................2 Features ................3 Specifications ................ 3 Standard SBC functions ............3 Local-bus flat panel/VGA interface ........4 Ethernet controller function ..........5 Solid state disk function ............5 PC/104 bus expansion ............5 Mechanical and environmental ..........5 Board layout and dimensions ..........
  • Page 5 Floppy drive connector (CN15) ........19 Connecting the floppy drive ..........19 Parallel port connector (CN12) ......... 20 Parallel port IRQ ..............20 Keyboard and PS/2 connector (CN8) ....... 20 Front panel connector (CN5) ..........21 Power connectors (CN7, CN10, CN3) ......21 Peripheral power connector, -5V, -12V (CN7) ....

  • Page 6: Table Of Contents

    Connections to NEC NL8060AC26 (800 x 600 TFT Color LCD) ..........36 Connections to Sharp LM64C142 (640 x 480 DSTN Color LCD) ..........37 Ethernet software configuration ........38 System test and initialization ..........40 System configuration verification ........40 AWARD BIOS setup ............
  • Page 7 IDE hard drive connector (CN9) ........76 Fan power connector (CN3) ..........77 Floppy drive connector (CN15) ........... 78 Parallel port connector (CN12) ........... 79 PCM-10489-1 Cable kit for PCM-4890/5890 ..... 82 PCM-20486-1 Boot ROM binary files for ......82 PCM-4890 ................82...
  • Page 9 This chapter gives background informa- tion on the PCM-4890. Sections include: • Card specifications • Card layout and dimensions Chapter 1 General Information...
  • Page 10 5¼" floppy drive (only 5.75" x 8"). For maximum performance, the PCM-4890 also supports 2nd level cache sizes from 128 KB to 512 KB (32 KB x 8, 64 KB x 8, or 128 KB x 8).
  • Page 11 • Accepts DX2/DX4 and 5x86 CPUs • Award Flash BIOS, Flat-panel configured by programming Flash chip • 2nd level cache: supports up to 512 KB cache memory • 32-bit VL-bus SVGA controller, display both CRT and LCD simulta- neously • 16-bit Ethernet interface, Novell NE2000 compatible •...
  • Page 12 Time interval is 1.6 seconds • DMA channels: 7 • Interrupt levels:15 • Keyboard/mouse connector: 8-pin connector supports standard PC/AT keyboard and a PS/2 mouse • Power management: I/O peripheral devices support power saving and doze/standby/suspend modes. AMP 1.1 compliant PCM-4890 User's Manual...
  • Page 13 • Chipset: C&T 65545 • Display memory: 512 KB DRAM (standard), 1 MB DRAM (optional) • Display type: Supports CRT and flat panel (EL, LCD and gas plasma flat panel) display. Can display CRT and flat panel simultaneously • CRT display mode: Supports resolutions up to 1024 x 768. Non-inter- laced CRT monitors resolutions up to 1024 x 768 @ 256 colors.
  • Page 14 PCM-4890 User's Manual...
  • Page 15 This chapter tells how to set up the PCM-4890 hardware, including instructions on setting jumpers and connecting peripherals, switches and indicators. Be sure to read all the safety precautions before you begin the installation procedure. Chapter 2 Installation...
  • Page 16 Watchdog timer reset Enable/Disable Clock Selection Clock Selection Clock Selection Watchdog timer interrupt setting Watchdog timer Enable/Disable Buzzer control ECP control Printer port interrupt channel selection COM3 IRQ channel control COM4 IRQ channel control Ethernet LED (CRSL) PCM-4890 User's Manual...
  • Page 17 COM2 RS-232/422/485 selection Ethernet LED (BNCL) RS-232/485 setting RS-232/485 setting RS-232/485 setting RS-232/485 setting COM 4 Voltage Selection COM 3 Voltage Selection VGA connector Flat panel display connector Fan power PC/104 connector (AT) Front panel connector PC/104 (XT) Peripheral power control Keyboard and mouse connector IDE connector CN10...
  • Page 18 VT82C496G I N T E L D X 4 - 1 0 0 ( 3 V ) A N D C Y R I X 5 8 X 6 - 1 0 0 CHIPS F65545 B2 PCM-4890 User's Manual...
  • Page 19 You configure your card to match the needs of your application by setting jumpers. A jumper is the simplest kind of electric switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To “close”...
  • Page 20 The PCM-4890 all-in-one CPU module supports most 486 CPUs. The system's performance depends on the CPU you choose. You can install or upgrade the CPU in the board's PGA socket by following the procedures outlined below.
  • Page 21 To install the CPU, follow the instructions that came with it. If no documentation was provided, the general procedures for installing a CPU are outlined below: 1. Lubricate the pins on the CPU with lubricant for PGA devices. This makes the CPU slide in much easier and greatly reduces the chance of damaging the pins and other components.
  • Page 22 Cyrix DX2-66 and DX2-80 Cyrix DX2-66 (clock 33MHz) Cyrix DX2-80 (clock 40MHz) Cyrix 5x86-120GP and Intel DX2-66 Cyrix 5x86-120GP (clock 40MHz) Intel DX2-66 (clock P33Mhz) Intel DX4-100 and Cyrix DX4-100 Intel DX4-100 (clock 33MHz) Cyrix DX4-100 (clock 33Mhz) PCM-4890 User's Manual...
  • Page 23 J1 and J2 must be set to match the CPU type. The chart below shows the proper jumper settings for their respective V J16, J17, and J18 are used to synchronize the CPU clock with the CPU type. Set the CPU clock according to the base CPU speed. Chapter 2 Installation...
  • Page 24 2x system frequency 1x system frequency Enable Disable PCM-4890 User's Manual...
  • Page 25 You can install anywhere from 1 MB to 32 MB of on-board DRAM memory using 1, 2, 4, 8 or 16 MB 72-pin SIMMs (Single In-Line Memory Modules). Access time should be 70 nsec. or less. Memory installs in two banks composed of one SIMM socket each. The banks are designated as Bank0 and Bank1.
  • Page 26 If you install two drives, you will need to set one as the master and one as the slave by using jumpers on the drives. If you install just one drive, set it as the master. PCM-4890 User's Manual...
  • Page 27 You can attach up to two floppy disks to the PCM-4890's on-board controller. You can use any combination of 5¼" (360 KB and 1.2 MB) and/or 3½" (720 KB, 1.44 MB, and 2.88 MB) drives. A 34-pin daisy-chain drive connector cable is required for a dual- drive system.
  • Page 28 DB-25 connector. The cable has a 26-pin connector on one end and a DB-25 connector on the other. The PCM-4890 supports one parallel port. The port is designated as LPT1 and can be disabled or changed to LPT2 or LPT3 in the system BIOS setup.
  • Page 29 The PCM-4890 can drive an 8 W speaker at 0.5 watts. Ensure that alternatives to this specification do not overload the card. The front panel LED indicator for hard disk access is an active low signal (24 mA sink rate).
  • Page 30 The PCM-4890 offers four serial ports: three RS-232 and one RS- 232/422/485. These ports let you connect to serial devices (a mouse, printers, etc.) or a communication network. The serial port connectors are mounted on the right hand side of the card.
  • Page 31 IRQ5/10 COM4 IRQ5/10 The PCM-4890's SVGA interface can drive conventional CRT displays and is capable of driving a wide range of flat panel displays, including electroluminescent (EL), gas plasma, passive LCD and active LCD displays. The card has two connectors to support these displays, one for standard CRT VGA monitors and one for flat panel displays.
  • Page 32 The PCM-4890 provides a bias control signal on CN2 which can be used to control the LCD bias voltage. It is recommended that the LCD bias voltage not be applied to the panel until the logic supply voltage (+5 V) and panel video signals are stable. Under normal operation the control signal (ENAVEE) is active high.
  • Page 33 The PCM-4890 is equipped with a high performance 16-bit Ethernet interface which is fully compliant with IEEE 802.3 10Mbps CSMA/ CD standards. It is supported by all major network operating systems and is 100% Novell NE-2000 compatible. Configuration of the Ethernet is very easy and can be done via the RSET8019.EXE program included on the utility disk.
  • Page 34 10BASE-T connects to the PCM-4890 via an adapter cable to a 10- pin polarized header (CN13). For 10BASE-T RJ-45 operation, an adapter cable converting CN13 into a standard RJ-45 jack is required. The Network Boot feature can be utilized by incorporating the Boot ROM image files for the appropriate network operating system.
  • Page 35 An on-board watchdog timer reduces the chance of disruptions which EMP (electro-magnetic pulse) interference can cause. This is an invaluable protective device for standalone or unmanned applications. Setup involves two jumpers and running the control software (refer to Appendix A). You can enable or disable the watchdog timer by reading the I/O ports with your program.
  • Page 36 PCM-4890 User's Manual...
  • Page 37 This chapter details the software configu- ration information. It shows you how to configure the card to match your applica- tion requirements. AWARD System BIOS is covered in Chapter 4. Sections include: • LCD display configuration • Connections for four standard LCDs •...
  • Page 38 The PCM-4890 system BIOS and custom drivers are located in a 128 Kbyte, 32-pin (JEDEC spec.) Flash ROM device, designated U27. A single Flash chip holds the system BIOS, VGA BIOS, and network Boot ROM image. The display can be configured via software.
  • Page 39 PG8019.EXE The PCM-4890 is initially setup at the factory using this program. When you receive your card, use RSET8019.EXE to configure for the working environment. If by chance the EEPROM is corrupted, the PG8019.EXE program allows you to reconfigure the card.
  • Page 40 Configure the VGA display as follows: 1. Apply power to the PCM-4890 with a color TFT display attached. This is the default setting for the PCM-4890. Ensure that the AWDFLASH.EXE and *.BIN files are located in the working drive.
  • Page 41 2. At the prompt, type AWDFLASH.EXE and press <Enter>. The VGA configuration program will then display the following: 3. At the prompt, type in the BIN file which supports your display. When you are sure that you have entered the file name correctly press <Enter>.
  • Page 46 PNP mode). To execute the configuration, to view the current configuration, or to run diagnostics, do the following: 1. Power the PCM-4890 on. Ensure that the RSET8019.EXE file is located in the working drive. 2. At the prompt type RSET8019.EXE and press <Enter>. The Ethernet configuration program will then be displayed.
  • Page 47 This chapter describes how to set BIOS configuration data.
  • Page 48 3. The CMOS memory has lost power and the configuration information has been erased. The PCM-4890’s CMOS memory has an integral lithium battery backup. The battery backup should last ten years in normal service, but when it finally runs down, you will need to replace the...

  • Page 49: Standard Cmos Setup

    STANDARD CMOS SETUP PASSWORD SETTING BIOS FEATURES SETUP IDE HDD AUTO DETECTION CHIPSET FEATURES SETUP HDD LOW LEVEL FORMAT POWER MANAGEMENT SETUP SAVE & EXIT SETUP LOAD BIOS DEFAULTS EXIT WITHOUT SAVINGL LOAD SETUP DEFAULTS ESC: QUIT : SELECT ITEM F10: Save &...
  • Page 50 When you choose the STANDARD CMOS SETUP option from the INITIAL SETUP SCREEN menu, the screen shown below is displayed. This standard Setup Menu allows users to configure system components such as date, time, hard disk drive, floppy drive, display, and memory. Once a field is highlighted, on-line help information is displayed in the left bottom of the Menu screen.
  • Page 51 By choosing the BIOS FEATURES SETUP option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the system configurations based on BIOS DEFAULT settings for the PCM-4890. Virus Warning : Disabled Video BIOS Shadow...
  • Page 52 By choosing the CHIPSET FEATURES SETUP option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the system configurations based on BIOS DEFAULT settings for the PCM-4890. Esc : Quit : Select Item F1 : Help...
  • Page 53 By choosing the POWER MANAGEMENT SETUP option from the INITIAL SETUP SCREEN menu, the screen below is dis- played. This sample screen contains the system configurations based on BIOS DEFAULT settings for the PCM-4890. : Quit : Select Item F1 : Help...

  • Page 54: Exit Without Saving

    SETUP DEFAULTS, on the other hand, provides for maximum system performance. If the stored record created by the Setup program becomes corrupted (and therefore unusable), BIOS defaults will load automatically when you turn the PCM-4890 on. STANDARD CMOS SETUP PASSWORD SETTING...
  • Page 55 To change the password, choose the PASSWORD SETTING option form the Setup main menu and press <Enter>. 1. If the CMOS is bad or this option has never been used, there is default password which is stored in the ROM. The screen will display the following messages: Enter Password: Press <Enter>.
  • Page 56 The IDE HDD AUTO DETECTION utility can automatically detect the IDE hard disk installed in your system. You can use it to self-detect and/or correct the hard disk type configuration. SIZE CYLS. HEADS PRECOMP LANDZONE SECTORS MODE Drive C : (Mb) 65535 Select Drive C Option (N=Skip) : N ESC = SKIP...
  • Page 57 The PCM-4890 features an on-board flat panel/VGA interface. This chapter provides instructions for installing and operating the software drivers on the included display driver diskette.

  • Page 58: Sleep Mode

    Both CRT and panel displays can be used simultaneously. The PCM-4890 can be set in one of three configurations: on a CRT, on a flat panel display, or on both simultaneously. The system is initially set to simultaneous display mode.

  • Page 59: Autocad R12

    The drivers support the following applications using the filena- mes and resolutions listed: Application Filename Resolution Colors Windows 3.1 LINEAR4.DRV 640x480 800x600 1024x768 LINEAR8.DRV 640x480 800x600 1024x768 LINEAR16.DRV 640x480 LINEAR24.DRV 640x480 AutoCAD R12 RCTURBOC.EXP 640x480 800x600 1024x768 640x480 800x600 1024x768 640x480 640x480 640x480...
  • Page 60 Word 5.0 VGA600.VID 800x600 VGA768.VID 1024x768 Word 5.5 VGA55600.VID 800x600 VGA55768.VID 1024x768 WordPerfect 5.0 CHIPS600.WPD 800x600 CHIPS768.WPD 1024x768 WordPerfect 5.1 VGA600.VRS 800x600 VGA768.VRS 1024x768 The instructions in this manual assume that you understand elementary concepts of MS-DOS and the IBM Personal Computer. Before you attempt to install any driver or utility you should: know how to copy files from a floppy disk to a directory on the hard disk, understand the MS-DOS directory structure, and know...
  • Page 61 These drivers are designed to work with Microsoft Windows 3.1. You may install these drivers through Windows or in DOS. Step 1: Install Windows as you normally would for a VGA display. Run Windows to make sure that it is working correctly. Step 2: Place the display driver diskette in drive A.
  • Page 62 Step 1: Install Windows as you normally would for a VGA display. Run Windows to make sure that it is working correctly. Then exit Windows. Step 2: Place the display driver diskette in drive A. Type A: <ENTER> to make this the default drive. Type SETUP <ENTER> to run the driver SETUP program.
  • Page 63 Special panning drivers are provided to allow high-resolution modes to be displayed on a flat panel or CRT. These drivers will show a section of a larger screen and will automatically pan, or scroll, the screen horizontally and vertically when the mouse reaches the edge of the display.
  • Page 64 These drivers are designed to work with Autodesk AutoCAD R12. They conform to the Autodesk Device Interface (ADI) for Rendering drivers and Display drivers. These display list drivers accelerate redraw, pan, and zoom functions. Step 1: Place the display driver diskette in drive A. Type A: <ENTER>...
  • Page 65 This menu allows you to modify: Number of AutoCAD Command Lines Font Size 6x8/8x8/8x14/8x16/12x20/12x24 Dual Screen Enable/Disable User Interface Configuration Double Click Interval Time BP Button BP Highlight Patt Line/Xor Rect/Both BP Refresh Enable/Disable BP Cache Enable/Disable This menu allows you to modify: Display List Enable/Disable Drawing Cache...
  • Page 66 These drivers are designed to work with Lotus 1-2-3 versions 2.0, 2.01 and 2.2, and with Lotus Symphony versions 1.0 and 1.1. Step 1: Place the display driver diskette into drive A. Make A the default drive by typing A: <ENTER>. Run the SETUP program by typing SETUP <ENTER>.
  • Page 67 Step 6: At this point the Installation Menu will prompt you for the name of your new Lotus configuration file. The Lotus system will prompt you with the default value — 123.SET, but you may want to use a filename that indicates the resolution of its driver. For example, if you installed the 132 column by 25 line driver, you could name this driver 132X25.SET, or if you installed the 80 by 50 driver, you may want to call the file 80X50.SET.
  • Page 68 The Video Electronics Standards Association (VESA) has created a standard for a Super VGA BIOS Extension (VBE). This defines a standard software interface to allow application programs to set and control extended video modes, such as 800x600 graphics, on video adapters from different manufacturers. The VESA driver adds this Super VGA BIOS Extension to the VGA BIOS.
  • Page 69 These drivers are designed to work with Microsoft Word 5.0 and 5.5. If you have already installed Word on your computer, go to Step 2 to install the new video driver. Step 1: Install Word as normal. Step 2: After you complete the Word installation, place the display driver diskette into drive A.
  • Page 70 These drivers are designed to work with WordPerfect 5.0 or 5.1. They support 132-column display in editing mode, and high- resolution graphics display in PreView mode. Step 1: Place the display driver diskette into drive A. Make A the default drive by typing A: <ENTER>. Run the SETUP program by typing SETUP <ENTER>.
  • Page 71 Follow these instructions to configure WordPerfect 5.0 for 132 column text mode: Step 1: To use the SETCOL program to set 132 columns and 25 rows, type the following command: SETCOL 132, 25 <ENTER> Step 2: Start WordPerfect. The program will detect the number of rows and columns automatically.
  • Page 73 The PCM-4890 is equipped with a watchdog timer that resets the CPU or generates an interrupt if processing comes to a standstill for whatever reason. This feature ensures system reliability in industrial standalone, or unmanned, environments.
  • Page 74 Jumpers J19 and J20 control the watchdog settings. The default configuration of the timer is enabled with system reset. To enable the watchdog timer, you must write a program which reads I/O port address 443 (hex) at regular intervals. The first time your program reads the port, it enables the watchdog timer.

  • Page 75: Installing Pc/104 Modules

    This appendix gives instructions for installing PC/104 modules. Appendix B Installing PC/104 Modules...
  • Page 76 4-Port RS-232 Module • PCM-3680 Dual Port CAN Module Installing these modules on the PCM-4890 is quick and simple. The following steps show how to mount the PC/104 modules: 1. Remove the PCM-4890 from your system paying particular attention to the safety instructions already mentioned above.
  • Page 77 PC/104 Mounting Support Female Module PC-104 Module Mainboard PC/104 Module Mounting Diagram 0.300 3.250 3.775 3.575 3.575 0.200 0.200 3.350 0.200 3.550 PC/104 module dimensions (inches ±5 %) Appendix B Installing PC/104 Modules...
  • Page 78 PCM-4890 User's Manual...

  • Page 79: Crt Display Connector (Cn1)

    This appendix contains information of a detailed or specialized nature. It includes: • CRT display connector • Flat panel display connector • PC/104 connector • Front panel connector • Main power connector • 10BASE-2/10BASE-5 AUI connector • Keyboard and mouse connector •...
  • Page 80 SIGNAL GND H-SYNC GREEN CHASSIS GND SIGNAL GND V-SYNC BLUE CHASSIS GND CHASSIS GND +12 V +12 V ENAV E E • SHFCLK ENABKL ASHFCLK...
  • Page 81 — — IOCHCHK SBHE MEMCS16 RESETDRV LA23 IOCS16 LA22 IRQ10 IRQ9 LA21 IRQ11 LA20 IRQ12 DRQ2 LA19 IRQ15 -12V LA18 IRQ14 ENDXFR LA17 DACK0 MEMR DRQ0 IOCHRDY (KEY) MEMW DACK5 SMEMW DRQ5 SA19 SMEMR DACK6 SA18 SD10 DRQ6 SA17 SD11 DACK7 SA16 DACK3...
  • Page 82 HDD LED- (HARD DISK ACTIVE) HDD LED+ (V SPEAKER+ SPEAKER- (GND) WATCHDOG TIMER OUT RESET SWITCH- (GND) RESET SWITCH+ -5 V -12 V +12 V...
  • Page 83 +5 V COM1 DCDA DSRA RXDA RTSA TXDA CTSA DTRA N.C. COM2 DCDB DSRB(422RXD+) (422TXD-/485DATA-) RXDB RTSB(422RXD-) (422TXD+/485DATA+) TXDB CTSB DTRB N.C. COM3 DCDC DSRC RXDC RTSC TXDC CTSC DTRC RIC/+5V/+12V N.C. COM4 DCDD RSRD RXDD RTSD TXDD CTSD DTRD RID/+5V/+12V...
  • Page 84 MS V MS DATA MS CLOCK KB V KB DATA KB CLOCK CRS LED RCV+ RCV- BNC LED XMT+ XMT- +12 V +5 V...
  • Page 85 IDE RESET DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15 SIGNAL GND IO WRITE IO READ IO CHANNEL READY 28 IRQ14 IOCS16...
  • Page 86 +12 V DENSITY SELECT DRIVE TYPE INDEX MOTOR 0 DRIVE SELECT 1 DRIVE SELECT 2 MOTOR 1 DIRECTION STEP WRITE DATA WRITE GATE TRACK 0 WRITE PROTECT READ DATA...
  • Page 87 HEAD SELECT DISK CHANGE \STROBE \AUTOFD \INIT \SLCTINI \ACK BUSY SLCT...
  • Page 90 The PCM-4890 requires several cables for normal operation. You can make them yourself or purchase an optional cable kit assem- bly which includes the following: , n i " 5 " 8 , n i " 5 " 5 " 5...
