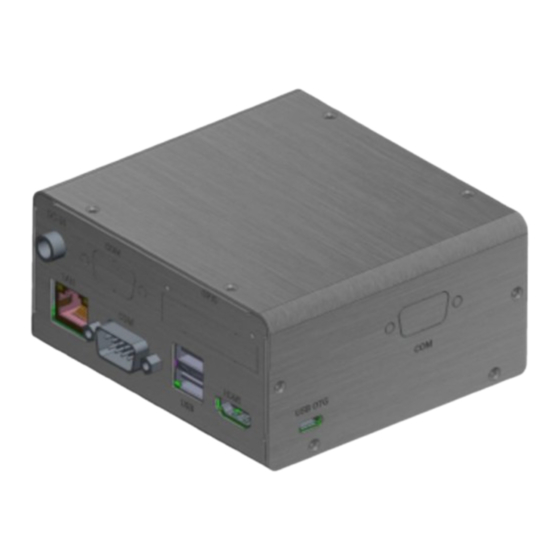

- Page 1 BOXER-RK88-0001 Rockchip RK3288 Platform User’s Manual 1 Last Updated: February 27, 2018...
- Page 2 AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
- Page 3 Acknowledgement All other products’ name or trademarks are properties of their respective owners. Microsoft Windows is a registered trademark of Microsoft Corp. ® ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines ...
- Page 4 Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity RICO-3288 RTC Battery DC Power Cable If any of these items are missing or damaged, please contact your distributor or sales representative immediately.
- Page 5 (if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the AAEON.com for the latest version of this document. Preface...
- Page 6 Safety Precautions Please read the following safety instructions carefully. It is advised that you keep this manual for future references All cautions and warnings on the device should be noted. Make sure the power source matches the power rating of the device. Position the power cord so that people cannot step on it.
- Page 7 If any of the following situations arises, please the contact our service personnel: Damaged power cord or plug Liquid intrusion to the device iii. Exposure to moisture Device is not working as expected or in a manner as described in this manual The device is dropped or damaged Any obvious signs of damage displayed on the device...
- Page 8 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
- Page 9 Preface...
- Page 10 China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 AAEON Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 ○ ○ ○ ○ ○ ○ 及其电子组件 外部信号 ○ ○ ○ ○ ○ ○...
- Page 11 China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products AAEON Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Hexavalent Polybrominated Polybrominated Component Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &...
-
Page 12: Table Of Contents
Table of Contents Chapter 1 - Product Specifications ..................1 Specifications ........................2 Chapter 2 – Hardware Information ..................4 Dimensions ........................5 Jumpers and Connectors .................... 6 List of Jumpers ........................ 7 2.3.1 JP1: LVDS power ....................7 2.3.2 JP2: Backlight power ................ - Page 13 2.4.14 CN31: GPIO (220-97-05GB01) ............. 15 2.4.15 CN34: Backlight (721-81-05TW00) ............. 16 2.4.16 CN35: Speaker(712-H71-105W01) ............16 2.4.17 CN37: MIPI (AYF333135).................17 2.4.18 CN38: HDMI type A(QJ51191-LFB4-7F) ..........17 2.4.19 CN40: RS232 (712-71-09TW01) ............18 2.5 Function Block ........................19 Preface XIII...
-
Page 14: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications... -
Page 15: Specifications
Specifications System 2.5” Board (PICO ITX) Form Factor Rockchip RK3288 (ARM Cortex™ A17 Processor Quad-core 1.6GHz) Onboard DDR3L 2GB RAM System Memory 16GB eMMC and Micro SD card Storage Power Requirement DC 12 V Power Consumption 0.6A@12V, full load, Quad CPU ... - Page 16 Network (LAN) 1 x RJ45, Giga Ethernet 1 x RS232/422/485 D-SUB9 connector Serial Port 1 x RS232 connector 2 x USB2.0 Type A USB(2.0) 1 x Micro USB(OTG) Video 1 x Audio connector Support 2.5W(by 4Ω) L/R Speaker Audio ...
-
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information... -
Page 18: Dimensions
Dimensions Chapter 2 – Hardware Information... -
Page 19: Jumpers And Connectors
Jumpers and Connectors Chapter 2 – Hardware Information... -
Page 20: List Of Jumpers
List of Jumpers Please refer to the table below for all of the board’s jumpers that you can configure for your application Label Function JP1(1,3,5) Clear CMOS Jumper JP1(2,4,6) Auto Power Button Enable/Disable Selection JP2(1,3,5) LVDS Port Operating Voltage Selection JP2(2,4,6) LVDS Port Backlight Inverter Voltage Selection LVDS Port Backlight Lightness Control Mode Selection... -
Page 21: Jp4: Update Image
2.3.4 JP4: Update image Mode Normal mode Open Update image Short 2.3.5 JP5: Integrated3 (220-97-05GB01) Definition Definition +3.3V I2C1_CLK GPIO0 UART4_TX I2C1_DATA GPIO1 GPIO2 UART4_RX GPIO3 2.3.6 JP6: Power button (220-96-02GB01) Definition +12V 2.3.7 JP7/JP8: COM port setting Chapter 2 – Hardware Information... -
Page 22: Jp7/Jp8: Com Port Setting
Mode RS422 Open Open RS232 Open Short RS485 Short Short 2.3.8 JP7/JP8: COM port setting Mode RS422 Open Open RS232 Open Short RS485 Short Short Chapter 2 – Hardware Information... -
Page 23: List Of Connectors
List of Connectors Please refer to the table below for all of the board’s connectors that you can configure for your application Label Function Digital IO Port LVDS Port Inverter / Backlight Connector Front Panel Mini-Card Slot (Half-Mini Card) SPI Programming Header Mini-Card Slot (Full-Mini Card)/mSATA (By BOM) BIO connector SATA Port... -
Page 24: Cn4: Lvds (712-76-30Gwe0)
2.4.2 CN4: LVDS (712-76-30GWE0) Definition Definition Definition BKL_ENABLE LVDS_DA1- LVDS_DA6- BKL_CONTROL LVDS_DA1+ LVDS_DA6+ LCD_PWR LVDS_DA2- LVDS_DA7- LVDS_DA2+ LVDS_DA7+ LVDS_A_CLK- LVDS_DA3- LVDS_DA8- LVDS_A_CLK+ LVDS_DA3+ LVDS_DA8+ LCD_PWR DDC_DATA LCD_PWR DDC_CLK LVDS_DA0- LVDS_DA5- LVDS_B_CLK- 2.4.3 CN7: Debug port (712-71-09TW01) Definition Definition 2.4.4 CN8: Giga LAN (RJJL4A-4WH1-FP0-0R 90D(F)) Chapter 2 –... -
Page 25: Cn9: Usb (1201-700-08S)
Definition Definition TX+_D1 BI-_D3 TX-_D1 RX-_D2 RX+_D2 BI+_D4 BI+_D3 BI-_D4 2.4.5 CN9: USB (1201-700-08S) Definition Definition USB2_D- USB3_D- USB2_D+ USB3_D+ 2.4.6 CN11: Integrated 1 (710-73-09TW01) Chapter 2 – Hardware Information... -
Page 26: Cn12: Rs232 (220-97-05Gb01)
Definition Definition I2C4_CLK USB1_D- I2C4_DATA I2C3_CLK I2C3_DATA NFC_DFU USB1_D+ 2.4.7 CN12: RS232 (220-97-05GB01) Definition Definition Vout(refer to JP3) 2.4.8 CN14: eDP (20455-030E-12) Definition Definition Definition eDP_HPD eDP_TX0- LCD_PWR BKL_ENABLE eDP_TX0+ LCD_PWR BKL_CONTROL eDP_TX3- eDP_TX1- eDP_TX3+ Chapter 2 – Hardware Information... -
Page 27: Cn18: Usd (112J-Tdar-R)
Definition Definition Definition eDP_TX1+ BKL_PWR eDP_AUX- BKL_PWR eDP_TX2- eDP_AUX+ BKL_PWR eDP_TX2+ BKL_PWR 2.4.9 CN18: uSD (112J-TDAR-R) Definition Definition DAT2 DAT3 DAT0 DAT1 +3.3V 2.4.10 CN21: USB OTG(TMC106-USBD05-835) Definition OTG_USB_D- OTG_USB_D+ OTG_ID 2.4.12 CN25: DC 12V Power Definition Chapter 2 – Hardware Information... -
Page 28: Cn30: Mpcie (As0B22X-S56Q-7H)
+12V 2.4.13 CN30: mPCIe (AS0B22x-S56Q-7H) Definition Definition Definition Definition WAKE_UP USIM_RESET +3.3V +3.3V WAKE_UP_OUT DISABLE USIM_PWR RESET USIM_DATA USB1_D- +3.3V USIM_CLK USB1_D+ +3.3V +3.3V 2.4.14 CN31: GPIO (220-97-05GB01) Definition Definition Chapter 2 – Hardware Information... -
Page 29: Cn34: Backlight (721-81-05Tw00)
GPO0 GPI2 GPI0 GPO3 GPO1 GPI3 GPI1 +3.3V GPO2 2.4.15 CN34: Backlight (721-81-05TW00) Definition BKL_PWR BKL_CONTROL BKL_ENABLE 2.4.16 CN35: Speaker(712-H71-105W01) Definition HP_DET LEFT_OUT RIGHT_OUT Spk_L_P Spk_L_N Spk_R_P Chapter 2 – Hardware Information... -
Page 30: Cn37: Mipi (Ayf333135)
Spk_R_N 2.4.17 CN37: MIPI (AYF333135) Definition Definition Definition Definition LED+ CCM_RESET LED+ DSI_CLK+ LED- CCM_PWDN DSI_CLK- LED- CCM_MCLK LCD_ID DSI_D2+ DOVDD_1.8V DSI_D0- DSI_D2- DSI_TE DSI_D0+ AVDD_2.8V DSI_D3+ I2C_DATA DSI_D1+ DSI_D3- I2C_CLK DSI_D1- 2.4.18 CN38: HDMI type A(QJ51191-LFB4-7F) Definition Definition HDMI_TX2P HDMI_CLKN HDMI_TX2N HDMI_CEC... -
Page 31: Cn40: Rs232 (712-71-09Tw01)
HDMI_TX1N DDC_SDA HDMI_TX0P HDMI_TX0N HDMI_HPD HDMI_CLKP 2.4.19 CN40: RS232 (712-71-09TW01) Definition Definition Chapter 2 – Hardware Information... -
Page 32: Function Block
2.5 Turning on/off your BOXER-RK88 1. Connect your BOXER-RK88 to other devices before you connect power. 2. Turning On the Device: Plug the power adapter to the power source, and then connect the power adapter to the power socket of your BOXER-RK88. The system runs automatically.
