1
ACCESSORIES

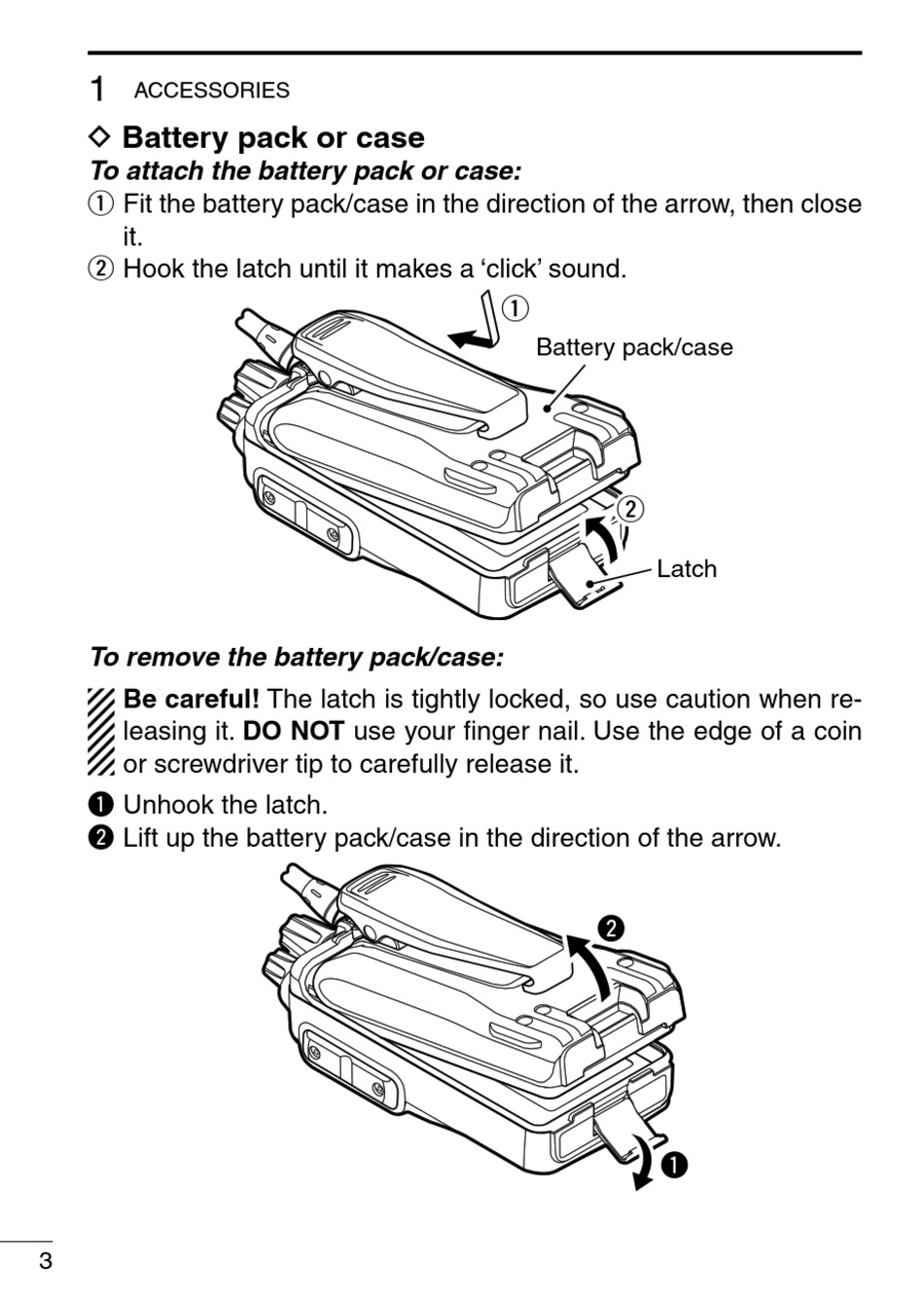

D Battery pack or case
To attach the battery pack or case:
q Fit the battery pack/case in the direction of the arrow, then close
it.
w Hook the latch until it makes a 'click' sound.
To remove the battery pack/case:
Be careful! The latch is tightly locked, so use caution when re-
leasing it. DO NOT use your finger nail. Use the edge of a coin
or screwdriver tip to carefully release it.
q Unhook the latch.
w Lift up the battery pack/case in the direction of the arrow.
3
q
Battery pack/case
w
Latch
w
q
