Optional: ConEx Sensor Monitoring continued
Digital Output
ConEx Digital Out 1&2 can be configured as an output thru DIRECTOR. This output will pull low with a
maximum current of 250mA when activated. Relay is required for most applications. It has an over
current tripped protection. If tripped, the output must be changed to OFF or have a power cycle to reset
the current trip. Access to this feature is available thru DIRECTOR.
Dig Out
Dig Out
87
85
87A
86
30
+12V
87
85
87A
+12V
86
30

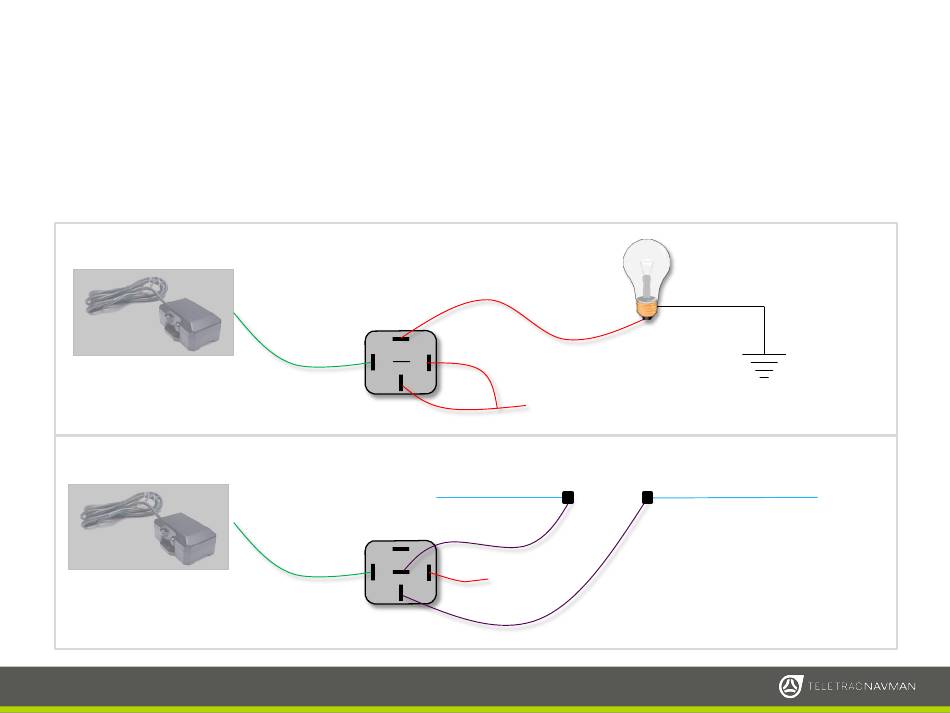

*Activate a light or buzzer
x
*Disconnect a circuit
