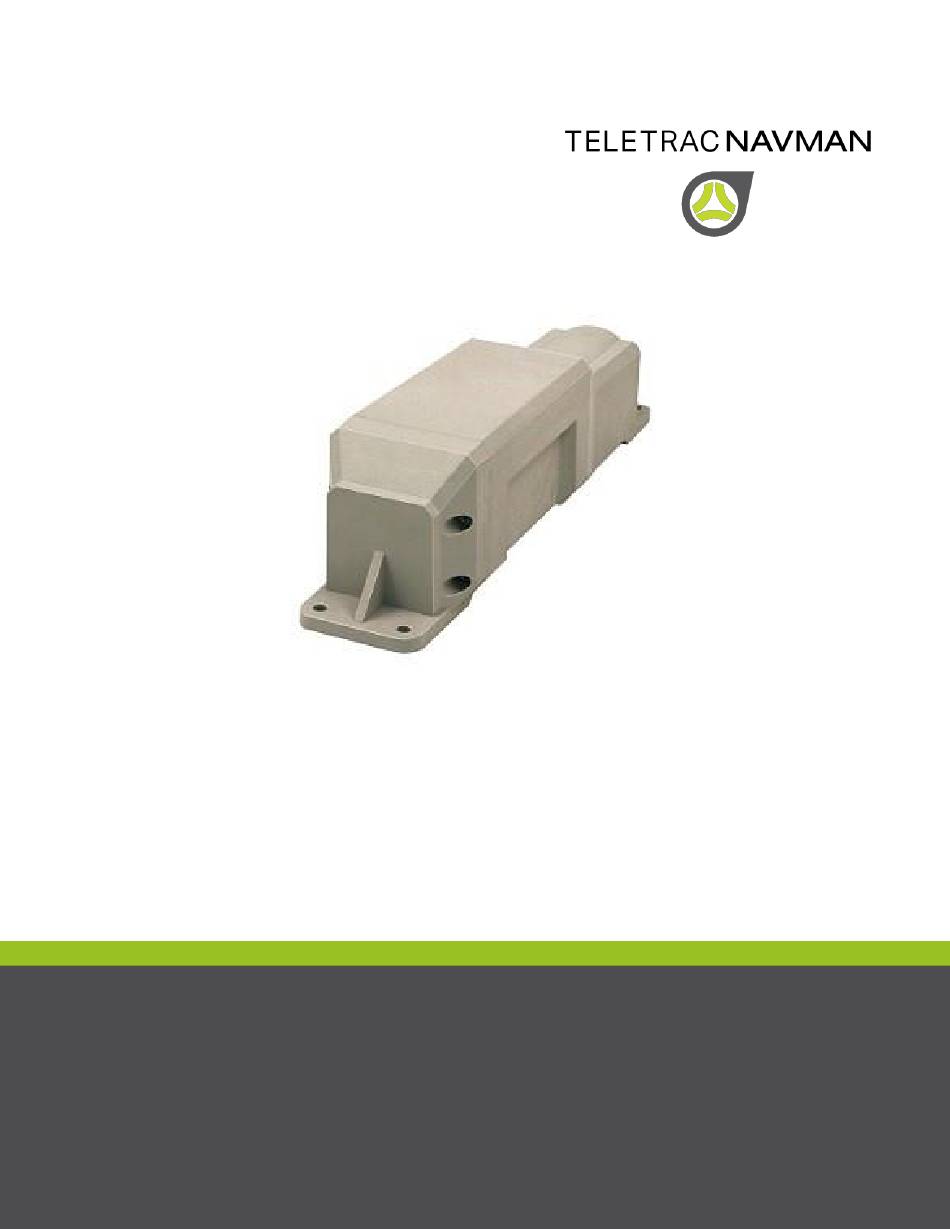

- Page 1 Qtanium 100 INSTALLATION MANUAL...
-
Page 2: Table Of Contents
Qtanium 100 | Installation Manual Contents OVERVIEW ......................... 4 HARDWARE ....................... 5 MOUNTING LOCATIONS ..................... 6 INSTALLATION ......................7 BATTERY REPLACEMENT .................... 8 SPECIFICATIONS ....................... 10... - Page 3 Qtanium 100 | Installation Manual Disclaimer It is the Owner’s sole responsibility to install and use the Qtanium 100 (the Product) in a manner that will not cause accidents, personal injury or property damage. For the purpose of this notice, “Owner”, “you”...
-
Page 4: Overview
(such as a trailer) and transmits this data to the DIRECTOR software. The Qtanium 100 can be installed on an asset using screws, bolts, or magnets. The choice of mounting location and the mounting method depends upon the type of asset. If the Qtanium100 is likely to be moved between different assets over time, magnets are the best option. -
Page 5: Hardware
Qtanium 100 | Installation Manual Hardware The box contains: 1 Qtanium 100 (with the internal battery in place) 8 flat washers 4 self-tapping mounting screws (Hex washer head) 4 nuts (with Nylock insert) 4 bolts An optional Magnetic Mounting Kit is available, which contains: ... -
Page 6: Mounting Locations
Optimal GPS performance will be achieved if the mounting location provides the Qtanium 100 with a clear view of the sky. If the mounting location is on a HORIZONTAL surface, the Qtanium 100 must face UP or DOWN. ... -
Page 7: Installation
If in doubt, consult the manufacturer. 1. Record the MSN (Module Serial Number) shown on the Qtanium 100 label, and the asset number. 2. Select a mounting location. -
Page 8: Battery Replacement
Qtanium 100 | Installation Manual Battery Replacement... - Page 9 Qtanium 100 | Installation Manual...
-
Page 10: Specifications
Qtanium 100 | Installation Manual Specifications PHYSICAL Weight 907g (32 oz) Dimensions 55 x 55 x 260 mm (2.25 x 2.25 x 10.5”) GENERAL Communication modes GPRS/EDGE/HSPA and CDMA 1xRTT packet data, UDP and SMS Location technology 50 channel GPS Operating voltage 3.6 V...
