Debug and Trace Configuration
STMicroelectronics 32F401C Discovery Board

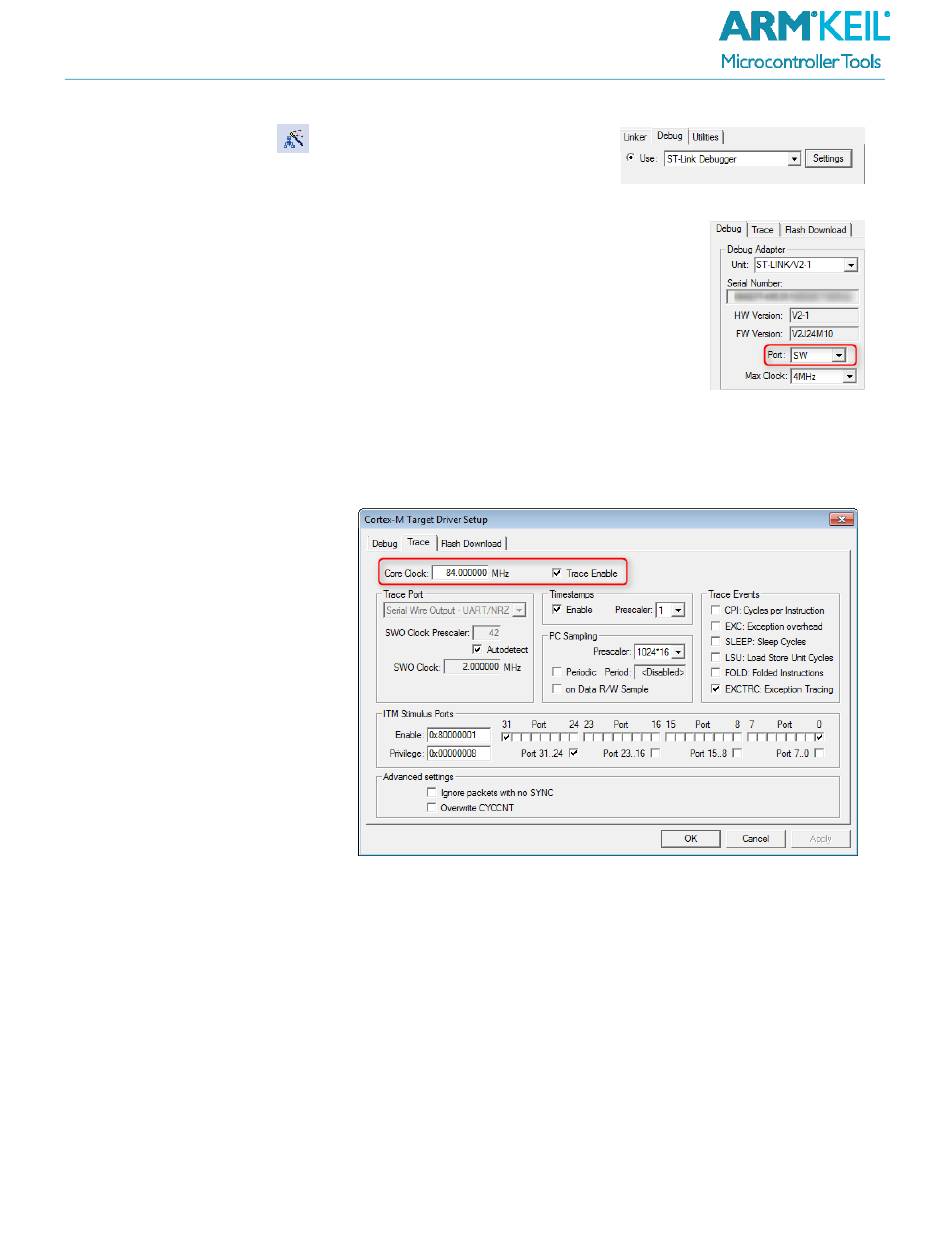

Enable ST-Link Debugger
Select Options for Target
or press ALT+F7.
Go to the Debug tab and select the ST-Link Debugger.
Connect Using SWD
Click on the Settings button. On the Debug tab select the Port SW. This board
does not support JTAG.
Configure Trace using Serial Wire Viewer
Go to the Trace tab and enter the correct CPU Core Clock speed as specified in your project. Check the
Trace Enable box.
Note:
To use SWO trace, you have to close
the solder bridge SB15 on the board.
Refer to the documentation on the
STMicroelectronics webpage for
further instructions.
When debugging, the Status bar
shows information about the Trace
connection.
Copyright © 2015 ARM Ltd. All rights reserved.
