Debug and Trace Configuration

STMicroelectronics 32F429I Discovery Board

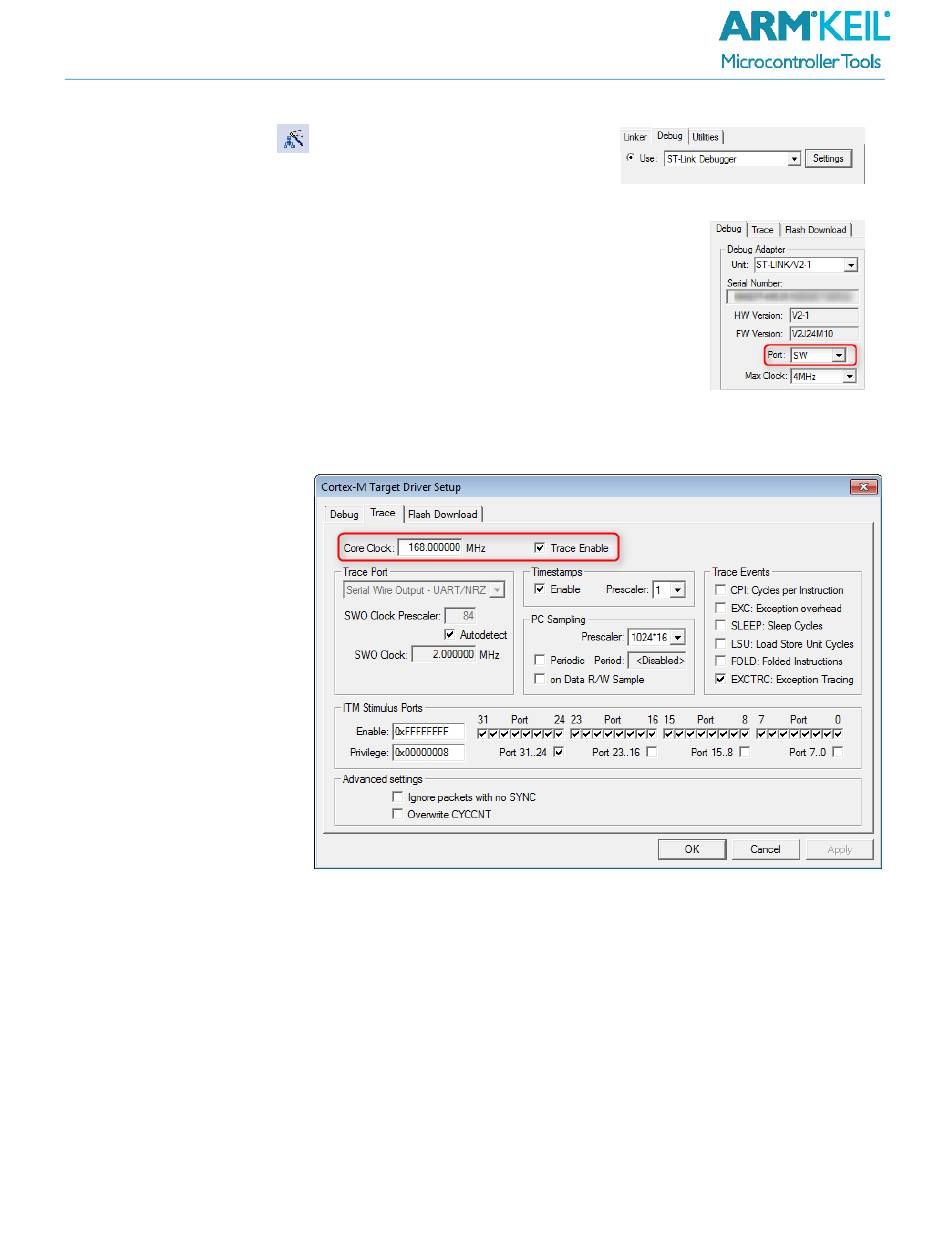

Enable ST-Link Debugger

Select Options for Target or press ALT+F7.
Go to the Debug tab and select the ST-Link Debugger.

Connect Using SWD

Click on the Settings button. On the Debug tab select the Port SW. This board
does not support JTAG.

Configure Trace using Serial Wire Viewer

Go to the Trace tab and enter the correct CPU Core Clock speed as specified in your project. Check the
Trace Enable box.
Note:
To use trace, you have to close
the solder bridge SB9 on the
board. Refer to the
documentation on the
STMicroelectronics webpage
for further instructions.
When debugging, the Status bar
shows information about the
Trace connection.
