BKI Hoodini CLBKI-6E-H Installation Operation & Maintenance

Combi oven with hoodini ventless hood
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CLBKI-6E-H, CLBKI-10H,
CLBKI-61E-H, CLBKI-62E-H,
CLBKI-101E-H & CLBKI-102E-H

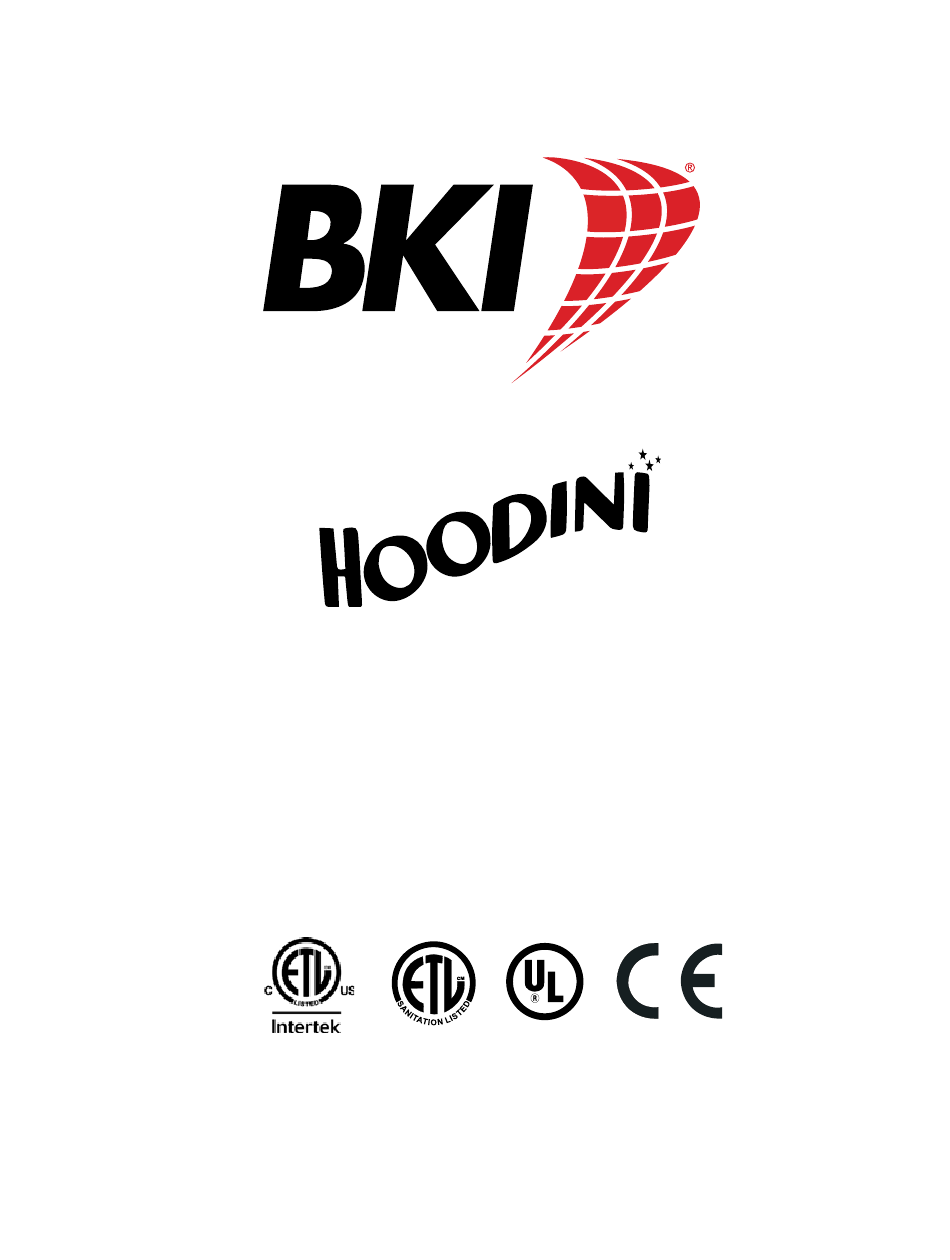

COMBI OVEN WITH HOODINI VENTLESS HOOD
INSTALLATION - OPERATION - MAINTENANCE
BKI
www.bkideas.com
42 Allen Martin Drive, Essex Junction, VT 05452 USA Telephone: (802) 658-6600 Fax: (802)864-0183
PN 63256 Rev C (3/21)
© 2021 - BKI
