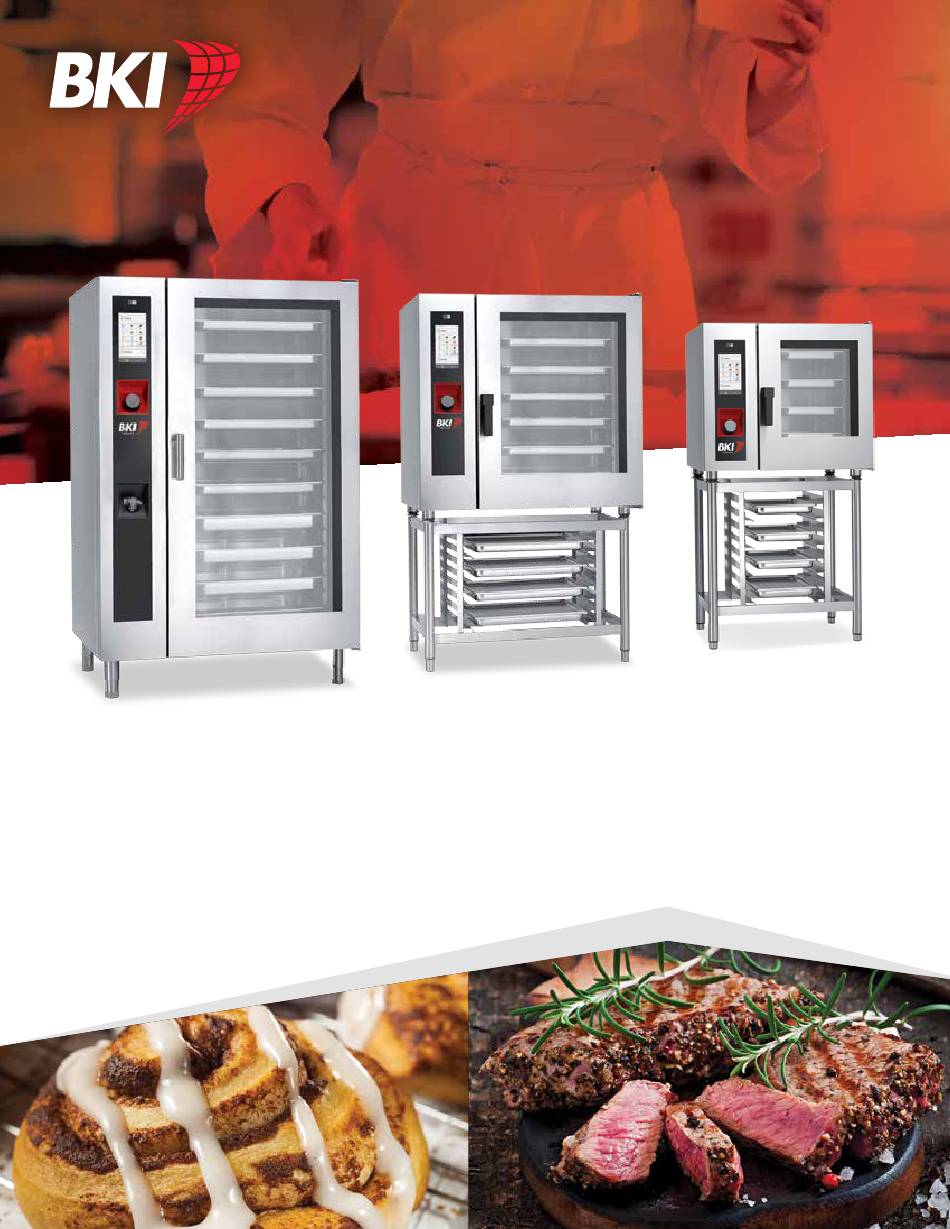

- Page 1 Combi-King® Combination Oven Series SERIES: TE, TG Operation Manual...
- Page 2 Dear Customer Congratulations on the purchase of your new Combi-King Plus combination oven. By purchasing your new oven, you have entered into a new era of cooking. With the new technology and simplicity built into your new Combi-King combination oven, you will receive excellent results in no time at all. This ease of use will add up in training dollars saved by the simplicity of operation.
- Page 3 (90) days of installation will be replaced without charge F.O.B. Factory Simpsonville SC or F.O.B. authorized BKI Distributor. The user shall have the responsibility and expense of removing and returning the defective part to the...
-
Page 4: Table Of Contents
Touch Control Combi Oven Table of Contents Table of Contents ....................1 Introduction ....................2 Intended Use ..................2 Safety Precautions ................3 Safety Signs and Messages ..............3 Safe Work Practices ................4 Specific Precautions ................5 General Safety Guidelines for Installers, Users, and Service Technicians ................... -
Page 5: Introduction
Touch Control Combi Oven 1.0 Introduction 1.1 Intended Use BKI Combi-King Plus combination oven are solely intended for use in commercial applications, especially in commercial kitchens. The units may only be used for cooking food using the correct racks, containers, baking sheets, and slide in pans. -
Page 6: Safety Precautions
Touch Control Combi Oven Safety Precautions 1.2 Safety Precautions Always follow recommended safety precautions listed in this manual. Below is the safety alert symbol. When you see this symbol on your equipment, be alert to the potential for personal injury or property damage. -
Page 7: Safe Work Practices
Touch Control Combi Oven 1.4 Safe Work Practices Beware of High Voltage This equipment uses high voltage. Serious injury can occur if you or any untrained or unauthorized person installs, services, or repairs this equipment. Always Use an Authorized Service agent to Service Your Equipment Beware of Hot Surfaces. -
Page 8: Specific Precautions
These sparks could cause serious injury, damage, or fire. BKI provides an Equipotential ground terminal for the connection of a bonding conductor after the installation of the appliance per lEC60417-1. This terminal is located on the inside of the Power Entry Supply box near the Earth connection and is marked with this symbol. -
Page 9: General Safety Guidelines For Installers, Users, And Service Technicians
OR outside the cooking compartment. Cleaning Agents – Use only BKI approved cleaning and descaling products. Follow the • instructions and heed and obey the warnings on the labels. Other products can damage the Combi, cause injury, or present heath hazards. -
Page 10: Health And Sanitation Practices
Touch Control Combi Oven 1.7 Health and Sanitation Practices BKI Combi Ovens are manufactured to comply with health regulations and are tested and certified to UL , cUL , and NSF standards. You must operate the equipment properly using only quality products and use meat thermometers to insure meats are thoroughly cooked. -
Page 11: Water Quality
BKI Minimum Water Quality Requirements Hardness (CaCO3) = Less than 7.5 GPG (Grains per Gallon) TDS (Total Dissolved Solids) = Less than 100.0 mg/L (Milligrams per Liter) -
Page 12: Product Overview
Touch Control Combi Oven Product Overview 3.0 Product Overview 1. Control Panel 2. Door Handle • Left to vent position • Right to open 3. Oven Lights • On the door 4. Hose Reel • Behind the door on table top units 5. -
Page 13: Control Panel
Touch Control Combi Oven Control Panel 4.0 Control Panel ON/ OFF button Manual cooking and menu building section (touch to open) Pre-planned recipes (touch to open) Service/cleaning section (touch to open) Start/Stop Button Return Button Menu Button Light Button Master Knob... - Page 14 Touch Control Combi Oven Control Panel Control Panel ON/OFF Button: Turns the unit on/off. Press and hold for 3 seconds. On steam generator units, it fills and drains the steam generator. Light Button: Toggles cavity light on and off. The light will automatically switch off after 45 seconds.
-
Page 15: Manual Cooking
Touch Control Combi Oven Manual Cooking 5.0 Manual Cooking From initial Menu, push “Manual cooking” which will bring you to the manual screen. Push the fan icon on the screen that opens a selection with the four cooking mode choices: = Convection, = Combination Convection/Steam, = Steam,... -
Page 16: Setting The Temperature
Touch Control Combi Oven Setting the Temperature: Setting the Temperature: Select the temperature setting on display by pushing the temperature screen. choose the temperature by turning the Master Knob. Confirm by pressing Master Knob or the display. Setting the Time: The oven can be programmed for cooking cycles that vary from 1 minute to 120 minutes. -
Page 17: Power Vent (Convection Mode Only)
Touch Control Combi Oven Power Vent (Convection Mode Only) Power Vent (Convection Mode Only) The power vent is used for evacuating humidity during cooking cycles and cooling in between cooking steps. The butterfly valve will open or close as programmed. The vent is always in the closed position unless activated and opened. -
Page 18: Probe Cooking
Touch Control Combi Oven Probe Cooking Probe Cooking To select Core Probe or ∆T cooking press Core/∆T box That opens a selection window with two options: = Core, = ∆t. Select the wanted mode by pressing the display. Core Temperature Probe For core probe cooking, the core temperature determines the cooking time based on the temperature measured by the core probe. - Page 19 Touch Control Combi Oven Delta T Delta T For ∆t cooking, the temperature in the cooking chamber is based on the temperature measured by the core temperature probe. Setting a ∆t value equal to 100°F for example, the temperature in the chamber will be maintained constantly 100°F above what is detected at the core of the product.
-
Page 20: Humidity Level (Combination Mode Only)
Touch Control Combi Oven Humidity Level (Combination Mode Only) Humidity Level (Combination Mode Only) In combination convection-steam cooking mode it is possible to set the percentage of humidity present in the cooking chamber by pressing the humidity percentage box and rotating the Master Knob to increase or decrease moisture by 5 % form 5% to 100%. -
Page 21: Pre-Heat
Touch Control Combi Oven Pre-Heat 5.11 Pre-Heat Once the oven has been set, the oven pre-heating function can be selected by pressing the pre-heat button. In pre-heating phase, the pre-heat button becomes red colored. The oven automatically determines the pre-heating temperature. When the oven reaches pre-heat temperature, it will signal with an audible warning tone. -
Page 22: Rack Control
Touch Control Combi Oven Rack Control 5.13 Rack Control The Rack Control program is for when it is desired to cook different foods in the same cooking mode and temperature or the same foods in a la carte style, such as au gratin, grilled meat, baked fish, etc. -
Page 23: Cleaning
Touch Control Combi Oven Cleaning 6.0 Cleaning 6.1 Wash Program The wash programs are accessed through the SERVICE menu, accessible from the Main menu. Selection of the pre-chosen function is made by turning the Master Knob then pressing it for confirmation or touching the desired selection on the screen. -
Page 24: Cleaning Chemicals
Cleaning Chemicals 6.2 Cleaning Chemicals Use only BKI approved cleaning agents to clean the oven interior. Unauthorized cleaning agents may discolor or harm interior surfaces of the oven. Read and understand label and material safety data sheet before using the oven cleaner and rinse aid. -
Page 25: Daily
Touch Control Combi Oven Daily 6.3 Daily • At the end of a working day, clean the equipment, both for hygienic reasons and to avoid malfunctioning. • The oven must never be cleaned using direct or high pressure water jets. •... -
Page 26: Weekly
Touch Control Combi Oven Weekly 6.4 Weekly The filter under the control panel that filters the air that cools the boards must be cleaned weekly. It is found under the edge of the control panel see below . Pull down on the bent metal handle to remove grate and remove filter, wash in warm soapy water and let dry. - Page 27 Touch Control Combi Oven SS-0M-009.02 Revised 07/12/13...
- Page 28 Touch Control Combi Oven 2812 Grandview Drive, Simpsonville, SC 29680, USA http://www.bkideas.com Made and printed in the U.S.A SS-0M-009.02 Revised 07/12/13...
