Software Description

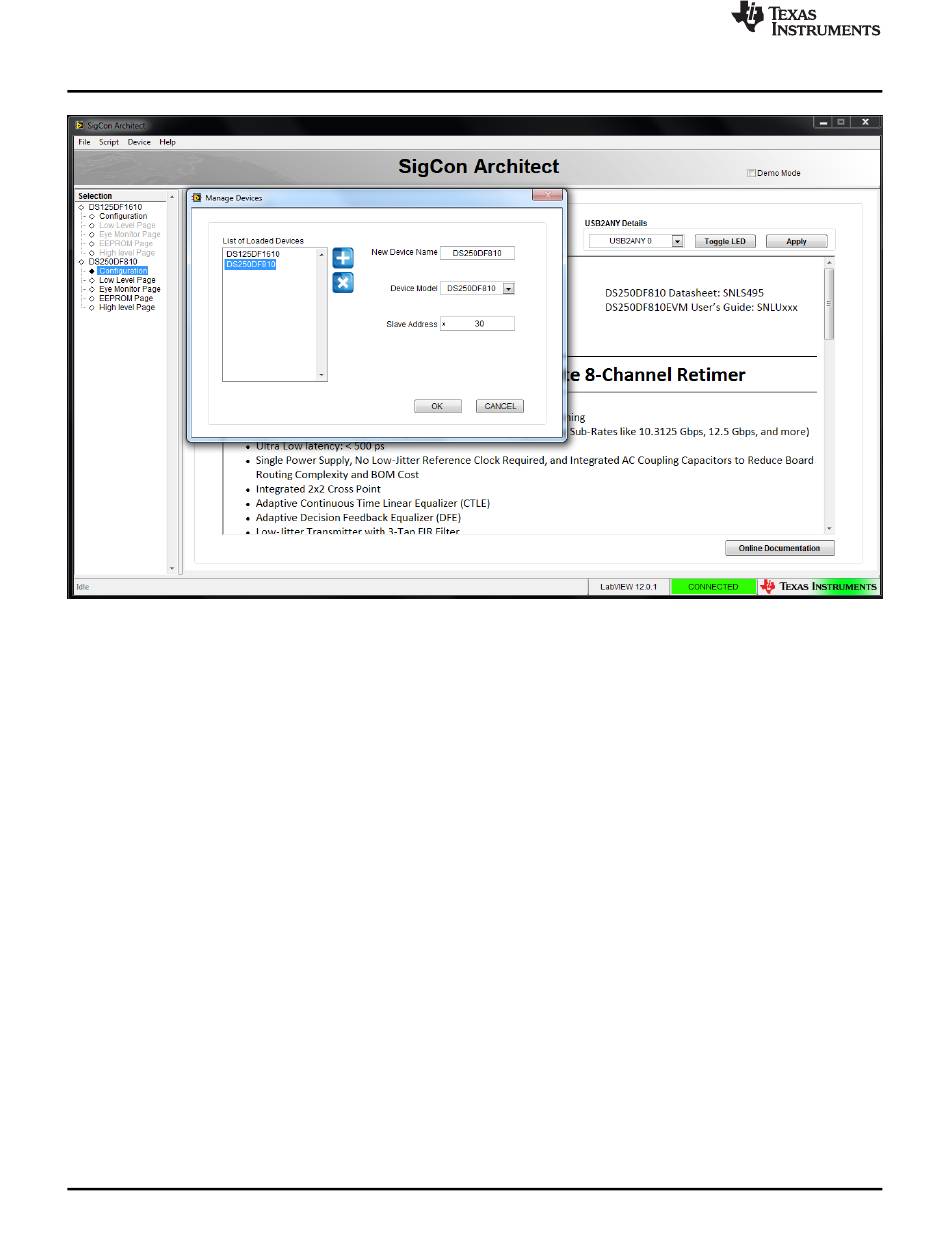

Figure 4. Capture Illustrating the Manage Devices Pop-Up Window for Adding New Part Numbers to the
3. Once connection is successfully established, users can read and write various settings to the device in
real-time, using the functional pages.
2.2 Functional Pages
2.2.1 Low-Level Page
The low-level page allows the user to read and write to all registers on the DS280DF810. To access it,
navigate to the Low Level Page, as shown below.
• The user may click Read All to load the data in each register from the device to the Register Map.
• The user may access the Shared, Global or Channel registers via Block Select.
• To Read a register:
– Type the readable address in the Current Address text box or select a register from the Register
Map.
– Click Read Register. The data in this register will appear in the Data text box.
• To Write a register:
– Type the writeable address in the Current Address text box or select a register from the Register
Map.
– The user may either type the data value (in HEX) to write to this address in the Data text box, or
check/uncheck boxes as desired for individual bits within the register. Then click Write Register.
– If Broadcast is selected for channel register writes, the specified write will be performed to all
channels in the device.
