Summary of Contents for Avlite AV-HLI2

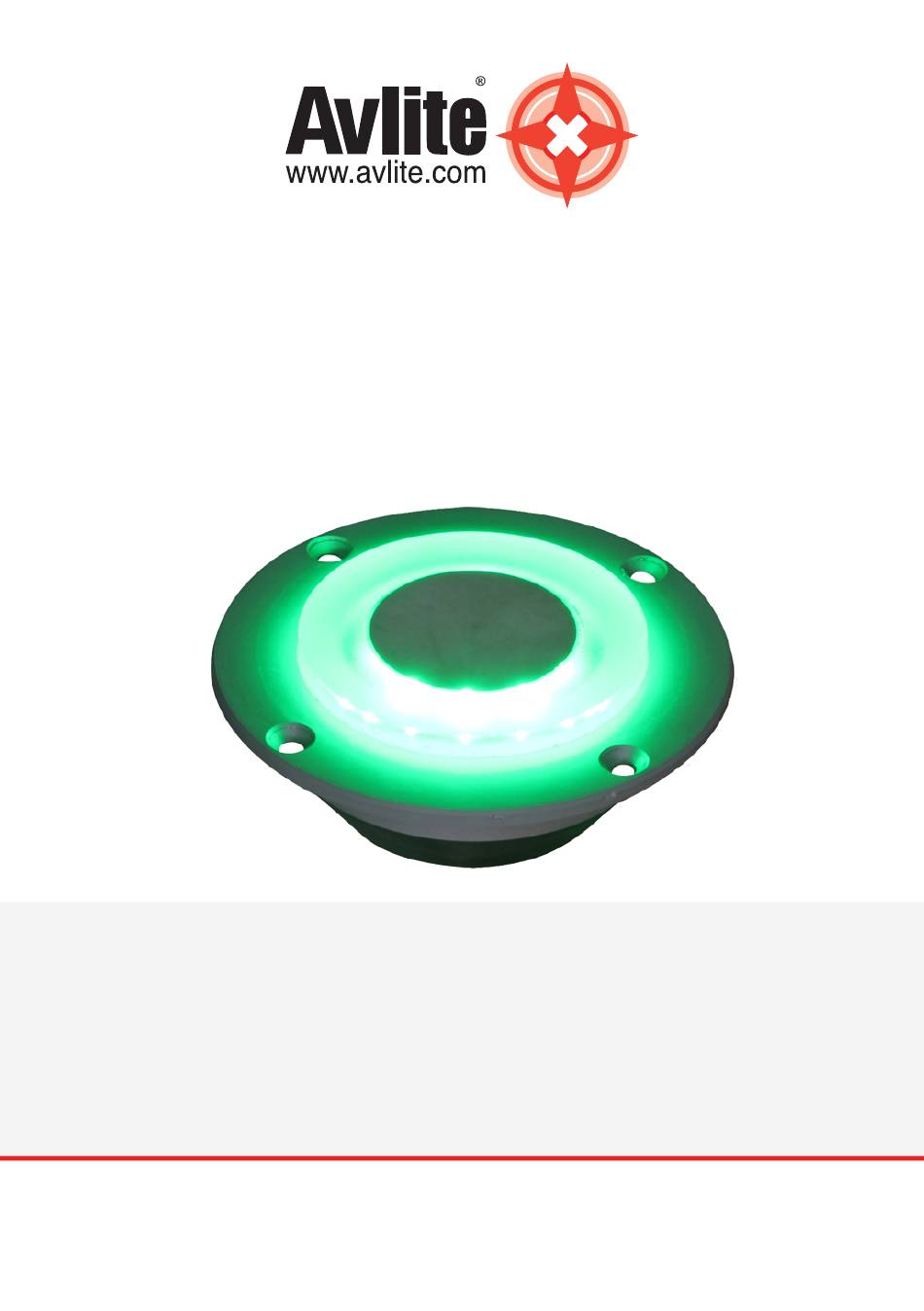

- Page 1 AV-HLI2 Inset Heliport Light INSTALLATION & SERVICE MANUAL V2.0...
- Page 2 Version No. Description Date Reviewed Approved Design AV-HLI2 Manual Launch Dec 2016 W. Evans General Update Feb 2017 W. Evans Drawing Update Feb 2017 W. Evans General Update Feb 2017 W. Evans AV-HLI2 Manual Overhaul July 2020 P. Naidu W. Evans...
-
Page 3: Table Of Contents
Safety Information ....................8 Operation and Setup ....................9 Unpacking, Installation, Wiring and Setup ............10 7.1 Unpacking ..............................10 7.2 Installation ..............................10 Maintenance and Servicing .................. 14 Replacement Parts ....................14 10.0 Troubleshooting ....................... 15 Latest products and information available at www.avlite.com... -
Page 4: Introduction
Avlite Systems draws on more than 25 years of experience in the design and manufacture of navigation aids, and particular care has been taken to ensure your product gives years of trouble-free service. -
Page 5: Technology
LED Technology All Avlite lights use the latest advancements in LED (Light Emitting Diode) technology as a light source. The major advantage of LED’s over traditional light sources is well established in that they typically have an operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing costs. -
Page 6: Av-Hli2 Models

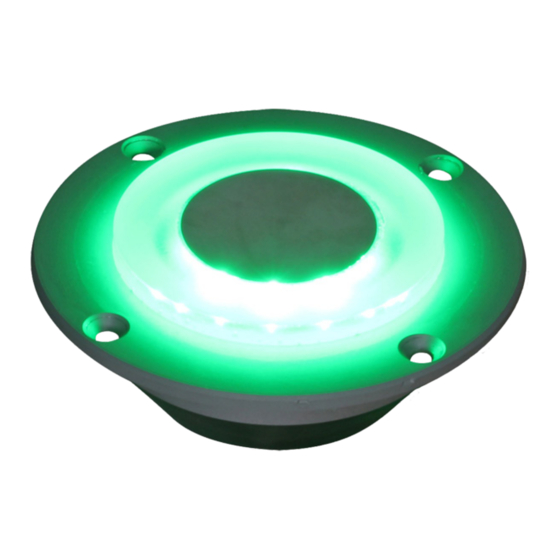

3.0 AV-HLI2 The AV-HLI2 is an inset helipad light designed to comply with ICAO Annex 14, Volume II and FAA EB67D requirements in a compact and low profile fixture. The fixture is available in TLOF, FATO, ADI & API configurations to fulfil all surface level and elevated helipad lighting needs. -
Page 7: Av-Hli2 Data Sheet
Certifications and Compliance EN61000-6-3:2007, EN61000-6-1:2007 Quality Assurance ISO9001:2015 Protection Rating IP68 Intellectual Property Trademarks AVLITE is a registered trademark of Avlite Systems ® Warranty 2 year warranty Options Available • AC/DC converter for AC/DC • Variety of solar/battery configurations •... -
Page 8: Safety Information
5.0 Safety Information Before proceeding with installation or service, make sure the following conditions are met: • Ensure power lines are not ‘live’ (NO ELECTRICAL HAZARD) • Avoid touching live circuits! • Avoid touching any component or any part of the circuitry while the unit is operating. Do not change components or make adjustments inside the unit with power on. -
Page 9: Operation And Setup
TLOF circuits are based on a daisy chained architecture (with or without the aid of junction boxes). Each light circuit is connected to the Primary Controller individually. 6.1 Product Overview External [3.15in] Power 80mm Positive (+24 VDC) Ground Blue Blue Dimming (0-10 VDC) White White [4.72in] 120mm Latest products and information available at www.avlite.com... -
Page 10: Unpacking, Installation, Wiring And Setup
7.0 Unpacking, Installation, Wiring and Setup 7.1 Unpacking Unpack all hardware and inspect for damage. If there is any damage, please contact your Avlite Office. Retain original packing material for possible future use in shipping. 7.2 Installation WARNING: DO NOT connect directly to the DC output of a generator, or any other unregulated power source. - Page 11 0% (Off) >9.5V Preparation of installation location The AV-HLI2 can be installed in either a 5” (inch), 8” (inch) or direct mounting configuration. 5” Configuration: For installation in tarmac or concrete helipads it is recommended to use the Avlite 5” (inch) inset shallow base taking into consideration site specific bearing load, leveling and thermal bonding.
- Page 12 Connect each conductor of light fly lead to corresponding joint connector as per table • Tighten each cable gland to ensure sealing Note: Do not cut or modify the fly lead attached to the AV-HLI2 light fixture Mechanical Installation 5” Configuration: The procedure for installing an inset light fixture to a 5”...
- Page 13 0.75mm² up to 4mm² wiring. If an intrusion of water in the bases or pits cannot be avoided, the joints should be placed in such way that no immersion in water or other fluids can take place. Latest products and information available at www.avlite.com...
-
Page 14: Maintenance And Servicing
Monthly check of the torque of the light head to its mounting. 9.0 Replacement Parts If replacement parts are required, please call a local Avlite distributor and reference the Product or Configuration Code called out in the “Product Configuration and Options” section... -
Page 15: Troubleshooting
Dim line and re-measure • If measured voltage on the Dim line still does not match expected value, inspect the dim line wiring • Otherwise replace the light fixture Notes Latest products and information available at www.avlite.com... - Page 16 Avlite Solution Verticals available Airfield Heliport Obstruction We believe technology improves navigation avlite.com info@avlite.com Avlite Systems Avlite USA LLC Avlite Asia Pte Ltd Australia Singapore +61 (0)3 5977 6128 +1 (603) 737 1311 +65 6908 2917...
