ROC-IT LEG EXTENSION
TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE
EXERCISE FLOOR. FAILURE TO DO SO MAY RESULT IN SERIOUS
Note: Both Serial Number and Model Number are Required when Ordering Parts
RECORD SERIAL NUMBER HERE
MACHINE CODE
C04
RS-1401-A
**WARNING!**
INJURY OR DEATH.
Customer Service
(800) 548-5438
(858) 578-7676
Fax
(858) 578-9558

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROC-IT RS-1401-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hoist Fitness ROC-IT RS-1401-A

Summary of Contents for Hoist Fitness ROC-IT RS-1401-A

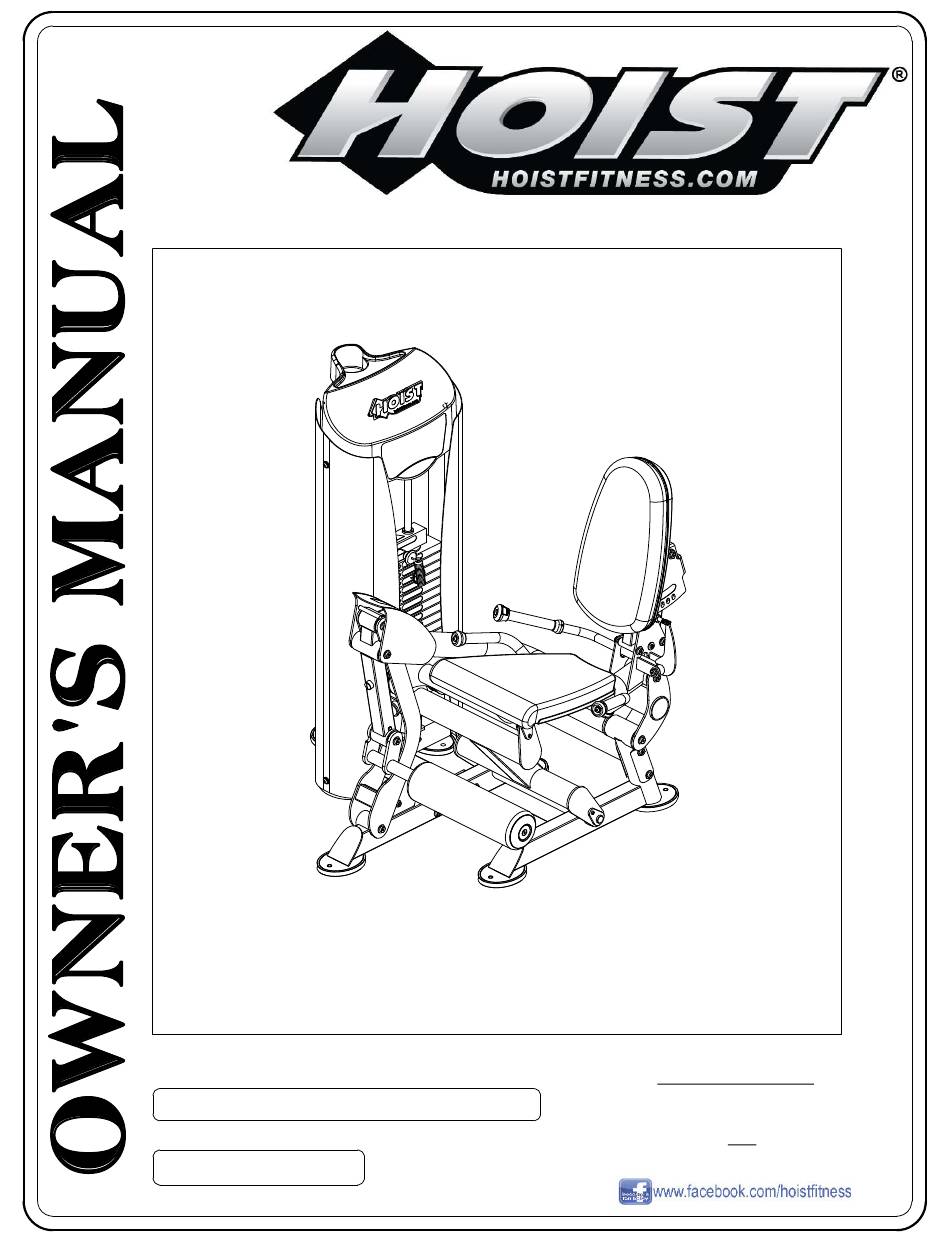

  • Page 1 RS-1401-A ROC-IT LEG EXTENSION **WARNING!** TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE EXERCISE FLOOR. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service RECORD SERIAL NUMBER HERE (800) 548-5438 (858) 578-7676...

  • Page 2: Table Of Contents

    OWNER'S MANUAL CONTENTS INSTRUCTIONS ..............FRAME ASSEMBLY .............. PRE-ASSEMBLY..............DECAL PLACEMENT............. DECAL REFERENCE............. PART LIST................ABBREVIATIONS..............BOLT SIZING CHART............WASHER SIZING CHART............MAINTENANCE SCHEDULE..........GENERAL MAINTENANCE INFORMATION......WEIGHT TRAINING TIPS............EXERCISE LOG..............LIMITED WARRANTY............PAGE 01 RS-1401-A ASSEMBLY...

  • Page 3: Instructions

    OWNER'S MANUAL INSTRUCTIONS Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists. Use only HOIST replacement parts when servicing.
  • Page 4 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 03 RS-1401-A ASSEMBLY...

  • Page 5: Frame Assembly

    OWNER'S MANUAL FRAME ASSEMBLY RS-1401-A ASSEMBLY PAGE 04...
  • Page 6 OWNER'S MANUAL FRAME ASSEMBLY *ASSEMBLE WEIGHT CAGE FIRST* NOTE: - WRENCH TIGHTEN HARDWARE (68). - HAND TIGHTEN ALL OTHER HARDWARE. - INSTALL CABLE AND PULLEYS AT THE SAME TIME. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. ENSURE THE USE OF WEIGHT STACK #2 144 5/8"...
  • Page 7 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - INSTALL CABLE AND PULLEYS AT THE SAME TIME. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RS-1401-A ASSEMBLY PAGE 06...
  • Page 8 OWNER'S MANUAL FRAME ASSEMBLY STEP 1 NOTE: - WRENCH TIGHTEN HARDWARE. - WRENCH TIGHTEN ALL PREVIOUSLY HAND TIGHTENED HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. STEP 2 PAGE 07 RS-1401-A ASSEMBLY...
  • Page 9 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RS-1401-A ASSEMBLY PAGE 08...
  • Page 10 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. CABLE PROFILE VIEW FROM WEIGHT STACK PAGE 09 RS-1401-A ASSEMBLY...
  • Page 11 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RS-1401-A ASSEMBLY PAGE 10...
  • Page 12 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 11 RS-1401-A ASSEMBLY...
  • Page 13 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE (62, 64 & 72) THEN LOOSEN NUT JUST ENOUGH FOR (7, 8 & 27) TO PIVOT FREELY. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RS-1401-A ASSEMBLY PAGE 12...
  • Page 14 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE (74) THEN LOOSEN NUT JUST ENOUGH FOR (6, 7 & 8) TO PIVOT FREELY. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 13 RS-1401-A ASSEMBLY...
  • Page 15 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RS-1401-A ASSEMBLY PAGE 14...
  • Page 16 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 15 RS-1401-A ASSEMBLY...
  • Page 17 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. RS-1401-A ASSEMBLY PAGE 16...
  • Page 18 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 17 RS-1401-A ASSEMBLY...
  • Page 19 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. STOP WHEN FINISHED WITH THIS STEP PLEASE SEE ROC-IT WEIGHT CAGE MANUAL FOR FINAL ASSEMBLY. *IMPORTANT* NOW THAT THE RS-1401-A IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR.

  • Page 20: Pre-Assembly

    OWNER'S MANUAL PRE-ASSEMBLY PAGE 19 RS-1401-A ASSEMBLY...

  • Page 21: Decal Placement

    OWNER'S MANUAL DECAL PLACEMENT NOTE: - ALL DECALS ARE CENTERED UNLESS OTHERWISE STATED. RS-1401-A ASSEMBLY PAGE 20...

  • Page 22: Decal Reference

    OWNER'S MANUAL DECAL REFERENCE 021-0013307 021-0003421 021-0003415 021-0003543 021-0003113 021-0003427 021-0003820 PAGE 21 RS-1401-A ASSEMBLY...
  • Page 23 OWNER'S MANUAL DECAL REFERENCE 021-0003934 SERIAL # DECAL 021-0003857 RS-1401-A ASSEMBLY PAGE 22...

  • Page 24: Part List

    OWNER'S MANUAL PART LIST NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 026-01X3812 MAIN FRAME ASSEMBLY 026-01X3813 ARM CAM ASSEMBLY 026-01X2487 CROSS MEMBER ASSEMBLY 026-01X3779 CONTROL LINK ASSEMBLY 026-01X2490 REAR LINK ASSEMBLY 026-01X6621 BACK SUPPORT ASSEMBLY 026-01X2500 BACK SUPPORT FRONT LINKAGE 026-01X2508...
  • Page 25 OWNER'S MANUAL PART LIST CONTINUED NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 021-0013307 PLACARD RS-1401 LEG EXTENSION 026-01M0128-1 PULL PIN CAP 026-01M0128-3 PULL-PIN PLUNGER 026-01M0199 QUICK RELEASE CABLE LOCK Ø 1/4" 026-01M0209 PULL-PIN TO CHAIN LINK 026-01M0238 FLATHEAD CAP Ø2.00"...
  • Page 26 OWNER'S MANUAL PART LIST CONTINUED NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 011-0116120 1/2"-13UNC X 4.25" LOW HEAD SHCS (Ni) 011-0116119 1/2"-13UNC X 4.00" LOW HEAD SHCS (Ni) 011-0116115 1/2"-13UNC X 3.00" LOW HEAD SHCS (Ni) 011-0116116 1/2"-13UNC X 3.25"...

  • Page 27: Abbreviations

    OWNER'S MANUAL ABBREVIATIONS BZ = Black Zinc Ni = Nickel Plated SS = Stainless Steel WZ = White Zinc HHB = Hex Head Bolt FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw Low Head SHCS = Low Head Socket Head Cap Screw SHSS = Socket Head Shoulder Screw...

  • Page 28: Bolt Sizing Chart

    OWNER'S MANUAL BOLT SIZING CHART 1/4" HHB 5/16" HHB 3/8" HHB 1/2" HHB RECOMMENDED RECOMMENDED RECOMMENDED RECOMMENDED TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: 6-8 ft-lbs 14-17 ft-lbs 24-30 ft-lbs 60-75 ft-lbs 3/8" BHCS 1/4" BHCS 5/16" BHCS 1/2" BHCS RECOMMENDED RECOMMENDED RECOMMENDED...

  • Page 29: Washer Sizing Chart

    OWNER'S MANUAL WASHER SIZING CHART 013-0102026 013-0102004 013-0002004 013-0402005 013-0102003 013-0002003 1/2" 1/4" 5/16" 3/8" 3/8" 1/2" FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER LARGE, USS, 34mm SMALL, SAE, 13mm LARGE, USS, 22mm SMALL, SAE, 21mm LARGE, USS, 25mm SMALL, SAE, 27mm 013-0402007...
  • Page 30 OWNER'S MANUAL WASHER SIZING CHART (CONTINUED) 026-01M0211 026-01M0760 026-01M0198 1/4" LONG 1/2" LONG HEAVY 1/2" LONG FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M211T 026-01M0532 026-01M0551 1/4" LONG HEAVY 11/16" LONG HEAVY 1" LONG HEAVY FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M0780 026-01M0788 026-01M0761...

  • Page 31: Maintenance Schedule

    OWNER'S MANUAL MAINTENANCE SCHEDULE COMMERCIAL / HOME ROUTINE LATEST DATE ENTRY LIGHT COMMERCIAL MAINTENANCE MAINTENANCE Inspect; Links, Pull Pins, Snap Locks, DAILY WEEKLY Swivels, Weight Stack Pins Clean; WEEKLY DAILY Upholstery Inspect; Cables or Belts and their WEEKLY DAILY tension Inspect;...

  • Page 32: General Maintenance Information

    OWNER'S MANUAL HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment. *If the spring sticks or has lost its rigidity, replace it immediately.

  • Page 33: Weight Training Tips

    OWNER'S MANUAL WEIGHT TRAINING TIPS Use this manual to guide you through the basic exercises you can perform on your RS-1401-A HOIST® Fitness System. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program.

  • Page 34: Exercise Log

    OWNER'S MANUAL PAGE 33 RS-1401-A ASSEMBLY...

  • Page 35: Limited Warranty

    Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
