TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE
EXERCISE FLOOR. FAILURE TO DO SO MAY RESULT IN SERIOUS
Note: Both Serial Number and Model Number are Required when Ordering Parts
RECORD SERIAL NUMBER HERE
MACHINE CODE
A00

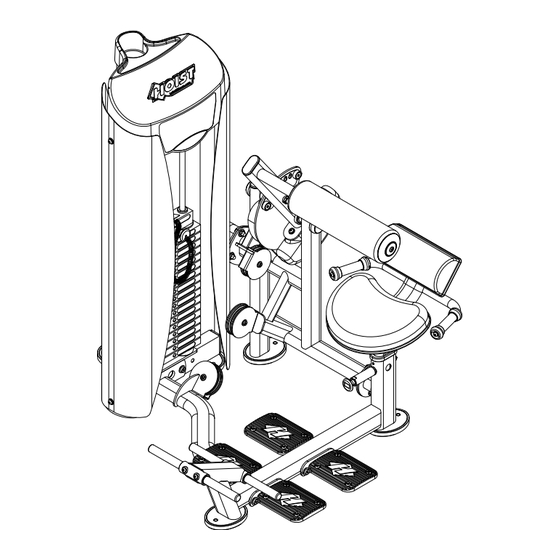

HD-3600
AB/LOW BACK
**WARNING!**
INJURY OR DEATH.
Customer Service
(800) 548-5438
(858) 578-7676
Fax
(858) 578-9558
Advertisement
Table of Contents
Related Manuals for Hoist Fitness HD-3600
Summary of Contents for Hoist Fitness HD-3600
- Page 1 HD-3600 AB/LOW BACK **WARNING!** TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE EXERCISE FLOOR. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service...
-
Page 2: Table Of Contents
OWNER'S MANUAL CONTENTS INSTRUCTIONS ..............FRAME ASSEMBLY .............. PRE-ASSEMBLY..............DECAL PLACEMENT............. DECAL REFERENCE............. PART LIST................ABBREVIATIONS..............BOLT SIZING CHART............WASHER SIZING CHART............MAINTENANCE SCHEDULE..........GENERAL MAINTENANCE INFORMATION......WEIGHT TRAINING TIPS............EXERCISE LOG..............LIMITED WARRANTY............PAGE 01 HD-3600 ASSEMBLY... -
Page 3: Instructions
Be sure to have your serial number and this manual when calling. When all parts have been accounted for, continue on. TOOLS REQUIRED Ratchet Wrench 1/2", 9/16" and 3/4" Sockets Adjustable Wrench Rubber Mallet Tape Measure Level Hex Key Wrench Set Two People HD-3600 ASSEMBLY PAGE 02... - Page 4 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 03 HD-3600 ASSEMBLY...
-
Page 5: Frame Assembly
OWNER'S MANUAL FRAME ASSEMBLY HD-3600 ASSEMBLY PAGE 04... - Page 6 OWNER'S MANUAL FRAME ASSEMBLY CABLE PROFILE VIEW 127 3/4" 3245 PAGE 05 HD-3600 ASSEMBLY...
- Page 7 *ASSEMBLE WEIGHT CAGE FIRST* NOTE: - WRENCH TIGHTEN HARDWARE (58). - HAND TIGHTEN HARDWARE. - INSTALL CABLE AND PULLEYS AT THE SAME TIME. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. ENSURE THE USE OF WEIGHT STACK #10 HD-3600 ASSEMBLY PAGE 06...
- Page 8 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 07 HD-3600 ASSEMBLY...
- Page 9 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. HD-3600 ASSEMBLY PAGE 08...
- Page 10 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 09 HD-3600 ASSEMBLY...
- Page 11 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. HD-3600 ASSEMBLY PAGE 10...
- Page 12 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 11 HD-3600 ASSEMBLY...
- Page 13 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. HD-3600 ASSEMBLY PAGE 12...
- Page 14 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - INSTALL CABLE AND PULLEYS AT THE SAME TIME. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. CABLE PROFILE VIEW PAGE 13 HD-3600 ASSEMBLY...
- Page 15 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. IMPORTANT: ENSURE CABLE RESTS BETWEEN PULLEY (22) AND ROM ASSEMBLY (11) STEP 2 HD-3600 ASSEMBLY PAGE 14...
- Page 16 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 15 HD-3600 ASSEMBLY...
- Page 17 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. HD-3600 ASSEMBLY PAGE 16...
- Page 18 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 17 HD-3600 ASSEMBLY...
- Page 19 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. HD-3600 ASSEMBLY PAGE 18...
- Page 20 - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. *IMPORTANT* NOW THAT THE HD-3600 IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. IF NOT, IT WILL BE NECESSARY TO LOOSEN SOME FRAME HARDWARE TO RE-ALIGN THE FRAME AND RETIGHTEN BOLTS.
-
Page 21: Pre-Assembly
OWNER'S MANUAL PRE-ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. HD-3600 ASSEMBLY PAGE 20... -
Page 22: Decal Placement
OWNER'S MANUAL DECAL PLACEMENT NOTE: - ALL DECALS ARE CENTERED UNLESS OTHERWISE STATED. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 21 HD-3600 ASSEMBLY... -
Page 23: Decal Reference
OWNER'S MANUAL DECAL REFERENCE 021-00003888 021-00003916 SERIAL # DECAL 021-0003911 021-0003230 HD-3600 ASSEMBLY PAGE 22... - Page 24 OWNER'S MANUAL DECAL REFERENCE 021-00003899 021-00003915 021-00003093 021-00003341 PAGE 23 HD-3600 ASSEMBLY...
-
Page 25: Part List
OWNER'S MANUAL PART LIST NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 010-01C0429 HD-3600 CABLE 022-01PD2103-A SEAT PAD ASSEMBLY 022-01PD2119 PAD, LONG ROLLER 022-01PD2326-A LOW BACK PAD ASSEMBLY 026-01X0186 PULL-PIN ASSEMBLY 026-01X2849 RACHET PULL-PIN ASSEMBLY... - Page 26 3/8"-16UNC X .75" BHCS (Ni) 011-0701020 3/8"-16UNC X 1.00" BHCS (Ni) 011-0701021 3/8"-16UNC X 1.25" BHCS (Ni) 011-0701049 1/2"-13UNC X 1.50" BHCS (Ni) 011-0702026 1/2"-13UNC X 1.50" FHS (Ni) 011-0116145 3/8"-16UNC X 1.75" LOW HEAD SHCS (Ni) PAGE 25 HD-3600 ASSEMBLY...
- Page 27 1/2"-13 UNC THIN NYLOCK NUT (Ni) 021-0003230 DECAL HOIST 1.625" X 6.0613" SERIAL # DECAL DECAL HOIST SERIAL # 1.63" X 2.63" 021-0003916 HD-3600 ROM Decal 026-01X6627 SEAT MOUNT ADJUSTER TUBE 021-0003911 DECAL ADJUST 1-7 VERTICAL GREY BKGRND 021-0003899 HD-3100, 3600, 3800 WEIGHT STACK DECALS...
- Page 28 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 27 HD-3600 ASSEMBLY...
-
Page 29: Abbreviations
HHB = Hex Head Bolt FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw Low Head SHCS = Low Head Socket Head Cap Screw SHSS = Socket Head Shoulder Screw HD-3600 ASSEMBLY PAGE 28... -
Page 30: Bolt Sizing Chart
OWNER'S MANUAL BOLT SIZING CHART HEX HEAD BOLT 1/4" HHB RECOMMENDED TORQUE RANGE: 6-8 ft-lbs 5/16" HHB RECOMMENDED TORQUE RANGE: 14-17 ft-lbs 3/8" HHB RECOMMENDED TORQUE RANGE: 24-30 ft-lbs 1/2" HHB RECOMMENDED TORQUE RANGE: 60-75 ft-lbs PAGE 29 HD-3600 ASSEMBLY... - Page 31 OWNER'S MANUAL BOLT SIZING CHART FLAT HEAD CAP SCREW 1/4" FHCS RECOMMENDED TORQUE RANGE: 5-7 ft-lbs 3/8" FHCS RECOMMENDED TORQUE RANGE: 19-26 ft-lbs 1/2" FHCS RECOMMENDED TORQUE RANGE: 47-65 ft-lbs HD-3600 ASSEMBLY PAGE 30...
- Page 32 OWNER'S MANUAL BOLT SIZING CHART BUTTON HEAD CAP SCREW 1/4" BHCS RECOMMENDED TORQUE RANGE: 5-7 ft-lbs 5/16" BHCS RECOMMENDED TORQUE RANGE: 11-15 ft-lbs 3/8" BHCS RECOMMENDED TORQUE RANGE: 19-26 ft-lbs 1/2" BHCS RECOMMENDED TORQUE RANGE: 47-65 ft-lbs PAGE 31 HD-3600 ASSEMBLY...
- Page 33 OWNER'S MANUAL BOLT SIZING CHART SOCKET HEAD CAP SCREW 1/4" SHCS RECOMMENDED TORQUE RANGE: 11-14 ft-lbs 5/16" SHCS RECOMMENDED TORQUE RANGE: 23-29 ft-lbs 3/8" SHCS RECOMMENDED TORQUE RANGE: 39-49 ft-lbs HD-3600 ASSEMBLY PAGE 32...
- Page 34 1/4" LOW HEAD SHCS RECOMMENDED TORQUE RANGE: 4-6 ft-lbs 5/16" LOW HEAD SHCS RECOMMENDED TORQUE RANGE: 9-12 ft-lbs 3/8" LOW HEAD SHCS RECOMMENDED TORQUE RANGE: 18-23 ft-lbs 1/2" LOW HEAD SHCS RECOMMENDED TORQUE RANGE: 40-50 ft-lbs PAGE 33 HD-3600 ASSEMBLY...
- Page 35 OWNER'S MANUAL BOLT SIZING CHART SOCKET HEAD SHOULDER SCREW 1/4" SHSS RECOMMENDED TORQUE RANGE: 3-4 ft-lbs 5/16" SHSS RECOMMENDED TORQUE RANGE: 8-10 ft-lbs 3/8" SHSS RECOMMENDED TORQUE RANGE: 17-22 ft-lbs HD-3600 ASSEMBLY PAGE 34...
-
Page 36: Washer Sizing Chart
CURVED WASHER LOCK WASHER LOCK WASHER LOCK WASHER SPACER 026-01M0238 016-0009003 013-0003002 2" ALUMINUM 1" SHIM WASHER 3/8" FENDER WASHER FLATHEAD CAP 013-0003004 026-01PL151 1 1/16" PLASTIC 1 1/16" FENDER WASHER FENDER WASHER 014-0018002 1" LONG SPACER PAGE 35 HD-3600 ASSEMBLY... - Page 37 026-01M0762 026-01M0768 .44" LONG HEAVY 1 1/4" LONG HEAVY 1 1/2" LONG HEAVY FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M0239 026-01M0240 1 5/8" ALUMINUM 1 3/8" ALUMINUM FLATHEAD CAP FLATHEAD CAP 026-01M0600 .625" LONG FLANGED SPACER HD-3600 ASSEMBLY PAGE 36...
-
Page 38: Maintenance Schedule
Your equipment comes with a commercial maintenance decal. For personal, in home use, please follow the home maintenance schedule listed above. Never use ammonia, acid-based, or petroleum-based solvents on any portion of the machine as it may damage the finish. PAGE 37 HD-3600 ASSEMBLY... -
Page 39: General Maintenance Information
OWNER'S MANUAL HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment. *If the spring sticks or has lost its rigidity, replace it immediately. -
Page 40: Weight Training Tips
To be successful in your exercise program, it is important to develop an understanding of the basic principles of strength training. Now that you have your HD-3600 HOIST® Fitness System, it is only natural that you want to get started immediately. First, determine a set of realistic goals and objectives for yourself. -
Page 41: Exercise Log
OWNER'S MANUAL HD-3600 ASSEMBLY PAGE 40... -
Page 42: Limited Warranty
Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
