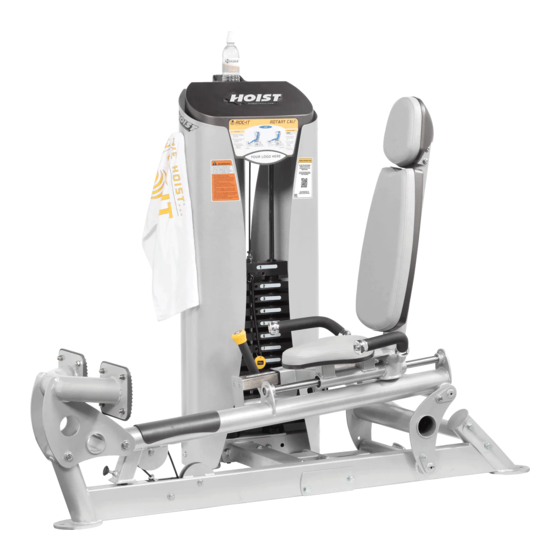

SEATED ROTARY CALF
TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE
EXERCISE FLOOR. FAILURE TO DO SO MAY RESULT IN SERIOUS
Note: Both Serial Number and Model Number are Required when Ordering Parts
RECORD SERIAL NUMBER HERE
MACHINE CODE
C05
RS-1415-A
**WARNING!**
INJURY OR DEATH.
Customer Service
(800) 548-5438
(858) 578-7676
Fax
(858) 578-9558
Advertisement
Table of Contents
Related Manuals for Hoist Fitness ROC-IT RS-1415-A
Summary of Contents for Hoist Fitness ROC-IT RS-1415-A
- Page 1 RS-1415-A SEATED ROTARY CALF **WARNING!** TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE EXERCISE FLOOR. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service RECORD SERIAL NUMBER HERE (800) 548-5438 (858) 578-7676...
-
Page 2: Table Of Contents
OWNER'S MANUAL CONTENTS INSTRUCTIONS ..............FRAME ASSEMBLY .............. PRE-ASSEMBLY..............DECAL PLACEMENT............. DECAL REFERENCE............. PART LIST................ABBREVIATIONS..............BOLT SIZING CHART............WASHER SIZING CHART............MAINTENANCE SCHEDULE..........GENERAL MAINTENANCE INFORMATION......WEIGHT TRAINING TIPS............EXERCISE LOG..............LIMITED WARRANTY............PAGE 01 RS-1415-A ASSEMBLY... -
Page 3: Instructions
OWNER'S MANUAL INSTRUCTIONS Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists. Use only HOIST replacement parts when servicing. - Page 4 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 03 RS-1415-A ASSEMBLY...
-
Page 5: Frame Assembly
OWNER'S MANUAL FRAME ASSEMBLY RS-1415-A ASSEMBLY PAGE 04... - Page 6 OWNER'S MANUAL FRAME ASSEMBLY *ASSEMBLE WEIGHT CAGE FIRST* NOTE: - INSTALL CABLE AND PULLEYS AT THE SAME TIME. - WRENCH TIGHTEN BOLT (73). - HAND TIGHTEN REMAINING HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. ENSURE THE USE OF WEIGHT STACK #2 150 5/8"...
- Page 7 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RS-1415-A ASSEMBLY PAGE 06...
- Page 8 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - WRENCH TIGHTEN ALL PREVIOUSLY HAND TIGHTENED HARDWARE. - INSTALL CABLE AND PULLEYS AT THE SAME TIME. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PROPERLY INSTALLED VIEW JAM NUT FINE TUNING: LOOSEN JAM NUT AND THREAD BOLT IN/OUT TO GIVE THE CABLE...
- Page 9 OWNER'S MANUAL FRAME ASSEMBLY STEP 1 - INSTALL (24) IN FRONT OF (10). - THEN ALIGN (9) WITH SHAFT BORES, AND CAREFULLY INSERT THE SHAFT (38) THROUGH (10) AND LINEAR BEARINGS, AND INSTALL REMAINING (24). STEP 2 - INSTALL ADJUSTER LEVER (14) INTO (9) THEN WRENCH TIGHTEN (82) JUST ENOUGH FOR (14) TO PIVOT FREELY.
- Page 10 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 09 RS-1415-A ASSEMBLY...
- Page 11 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RS-1415-A ASSEMBLY PAGE 10...
- Page 12 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. STOP WHEN FINISHED WITH THIS STEP PLEASE SEE ROC-IT WEIGHT CAGE MANUAL FOR FINAL ASSEMBLY. *IMPORTANT* NOW THAT THE RS-1415-A IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR.
-
Page 13: Pre-Assembly
OWNER'S MANUAL PRE-ASSEMBLY RS-1415-A ASSEMBLY PAGE 12... -
Page 14: Decal Placement
OWNER'S MANUAL DECAL PLACEMENT NOTE: - ALL DECALS ARE CENTERED UNLESS OTHERWISE STATED. PAGE 13 RS-1415-A ASSEMBLY... -
Page 15: Decal Reference
OWNER'S MANUAL DECAL REFERENCE 021-0003780 021-0003934 021-0003551 021-0003426 SERIAL # DECAL 021-0003322 021-0003427 021-0003093 021-0003862 RS-1415-A ASSEMBLY PAGE 14... -
Page 16: Part List
OWNER'S MANUAL PART LIST NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 010-01C0640 CABLE ASSEMBLY: RS-1415 150 5/8" LG. 022-01PD2114-A-M BACK PAD ASSEMBLY 022-01PD2099-A SEAT PAD ASSEMBLY 026-01X2685 CROSSBAR ASSEMBLY 026-01X5664 CROSS MEMBER ASSEMBLY 026-01X3247 SHAFT ASSEMBLY 026-01X3551... - Page 17 OWNER'S MANUAL PART LIST CONTINUED NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 026-01F0427 BACKING PLATE 026-01F0267 FLANGE 026-01G0213 GUIDE ROD 27.09" LG. 026-01M0128-1 PULL PIN CAP 026-01M0128-3 PULL-PIN PLUNGER 026-01M0209 PULL-PIN TO CHAIN LINK 026-01M0760 HEAVY FLANGED SPACER: Ø.67 O.D.
- Page 18 OWNER'S MANUAL PART LIST CONTINUED NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 011-0116142 3/8"-16UNC X 1.00" LOW HEAD SHCS (Ni) 011-0116145 3/8"-16UNC X 1.75" LOW HEAD SHCS (Ni) 011-0116148 3/8"-16UNC X 2.50" LOW HEAD SHCS (Ni) 011-0116149 3/8"-16UNC X 2.75"...
-
Page 19: Abbreviations
OWNER'S MANUAL ABBREVIATIONS BZ = Black Zinc Ni = Nickel Plated SS = Stainless Steel WZ = White Zinc HHB = Hex Head Bolt FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw Low Head SHCS = Low Head Socket Head Cap Screw SHSS = Socket Head Shoulder Screw... -
Page 20: Bolt Sizing Chart
OWNER'S MANUAL BOLT SIZING CHART 1/4" HHB 5/16" HHB 3/8" HHB 1/2" HHB RECOMMENDED RECOMMENDED RECOMMENDED RECOMMENDED TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: 6-8 ft-lbs 14-17 ft-lbs 24-30 ft-lbs 60-75 ft-lbs 3/8" BHCS 1/4" BHCS 5/16" BHCS 1/2" BHCS RECOMMENDED RECOMMENDED RECOMMENDED... -
Page 21: Washer Sizing Chart
OWNER'S MANUAL WASHER SIZING CHART 013-0102026 013-0102004 013-0002004 013-0402005 013-0102003 013-0002003 1/2" 1/4" 5/16" 3/8" 3/8" 1/2" FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER LARGE, USS, 34mm SMALL, SAE, 13mm LARGE, USS, 22mm SMALL, SAE, 21mm LARGE, USS, 25mm SMALL, SAE, 27mm 013-0402007... - Page 22 OWNER'S MANUAL WASHER SIZING CHART (CONTINUED) 026-01M0211 026-01M0760 026-01M0198 1/4" LONG 1/2" LONG HEAVY 1/2" LONG FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M211T 026-01M0532 026-01M0551 1/4" LONG HEAVY 11/16" LONG HEAVY 1" LONG HEAVY FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M0780 026-01M0788 026-01M0761...
-
Page 23: Maintenance Schedule
OWNER'S MANUAL MAINTENANCE SCHEDULE COMMERCIAL / HOME ROUTINE LATEST DATE ENTRY LIGHT COMMERCIAL MAINTENANCE MAINTENANCE Inspect; Links, Pull Pins, Snap Locks, DAILY WEEKLY Swivels, Weight Stack Pins Clean; WEEKLY DAILY Upholstery Inspect; Cables or Belts and their WEEKLY DAILY tension Inspect;... -
Page 24: General Maintenance Information
OWNER'S MANUAL HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment. *If the spring sticks or has lost its rigidity, replace it immediately. -
Page 25: Weight Training Tips
OWNER'S MANUAL WEIGHT TRAINING TIPS Use this manual to guide you through the basic exercises you can perform on your RS-1415-A HOIST® Fitness System. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program. -
Page 26: Exercise Log
OWNER'S MANUAL PAGE 25 RS-1415-A ASSEMBLY... -
Page 27: Limited Warranty
Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
