RS-1501

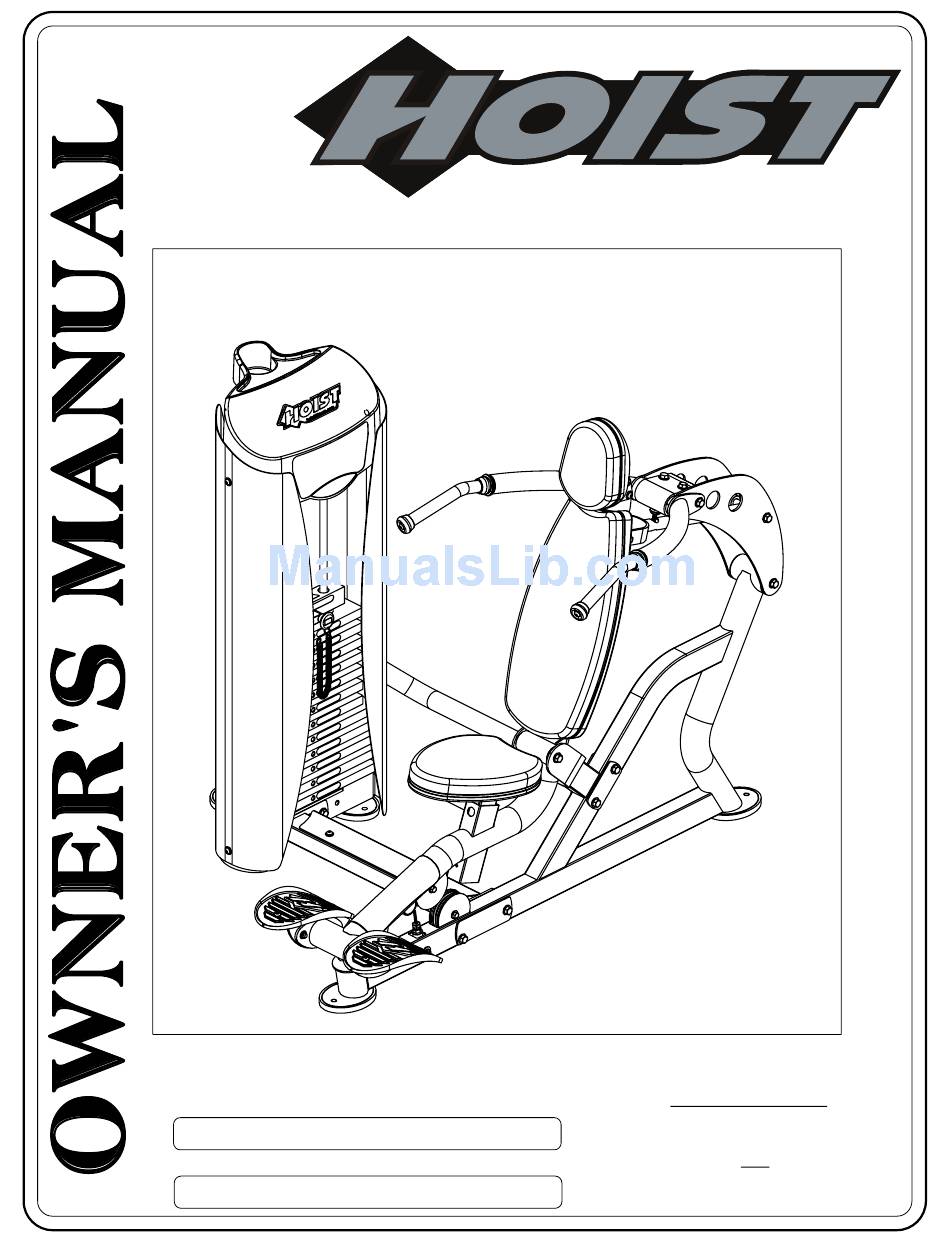

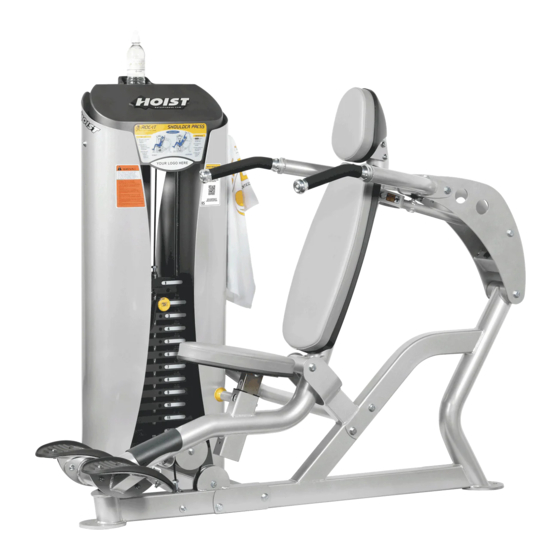

SHOULDER PRESS
Note: Both Serial Number and Model Number are Required when Ordering Parts
Customer Service
RECORD SERIAL NUMBER HERE
(800) 548-5438
(858) 578-7676
Fax
CATALOG NUMBER
(858) 578-9558
0406 - 015
