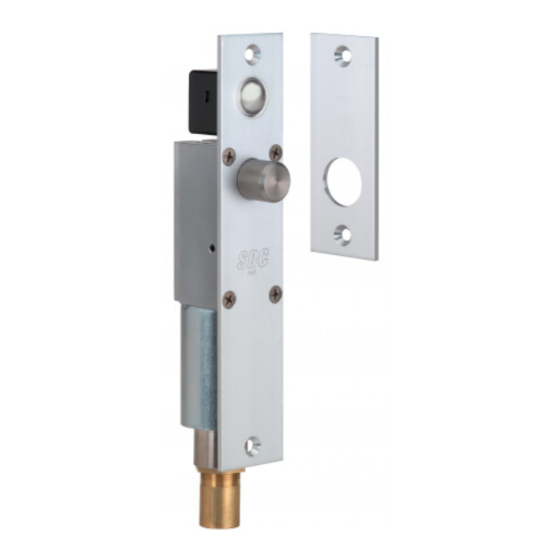

SDC PD2090A Installation Instructions

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

INSTALLATION

1. Review the installations shown in figures A
through D. Center line of panic device deter-
mines location of release.
2. The locking bolt will function as long as it
enters the top latch bolt at some point. If it is
not possible to line up on the panic device
center line, a larger notch may have to be cut
in the lock stile of the door to clear the lock
latch bolt.
3. Remove bottom rod assembly.
4. A metal filler block must be placed in the top
rail at the point of automatic relock switch.
This block must be flush with the top of the
door (required for the automatic relock
switch). Because of variables, this filler block
is not supplied by SDC. Notch inside top rail
at relock switch.
5. After reinforcement tabs have been installed,
attach power leads as shown in wire diagram.
6. Insert lock into mortise and attach with
machine screws provided.

SPECIFICATION

Faceplate: 10" x 1-1/2" x 1/8"
I.D. Requirements: 10" x 1-1/2" x 1-1/2"
Solenoid: 24 VAC and 24 VDC available
(Continuous Duty 2 Stage) Pull-in Coil – 57.6 watt / 2.4 amp at 24VDC
Holding Coil – 8.4 watt / .35 amp at 24VDC
Bolt: 1/2" diameter x 1/2" throw
B: Bolt position indicates bolt locked or unlocked
5 A. @ 30VDC
D: Door position indicates door open or closed
5 A. @ 30VDC
P:INST INSTRUCTIONS\BOLT LOCKS\INST-PD2090A
INSTALLATION INSTRUCTIONS
PANIC DEVICE TOP LATCH RELEASE BOLT LOCK
READ THOROUGHLY BEFORE INSTALLING
CAUTION: This device for center hung doors only
REV C 10-21
PD2090A
(POWER TO UNLOCK)
Auto Relock Switch
Adjustable for Wide Door Gap
Fig. 1

TROUBLESHOOTING

Problem
Top latch will not stand up.
Bolt will not retract.
Bolt projects too soon.
Bolt projects when door is
open.
Page 1

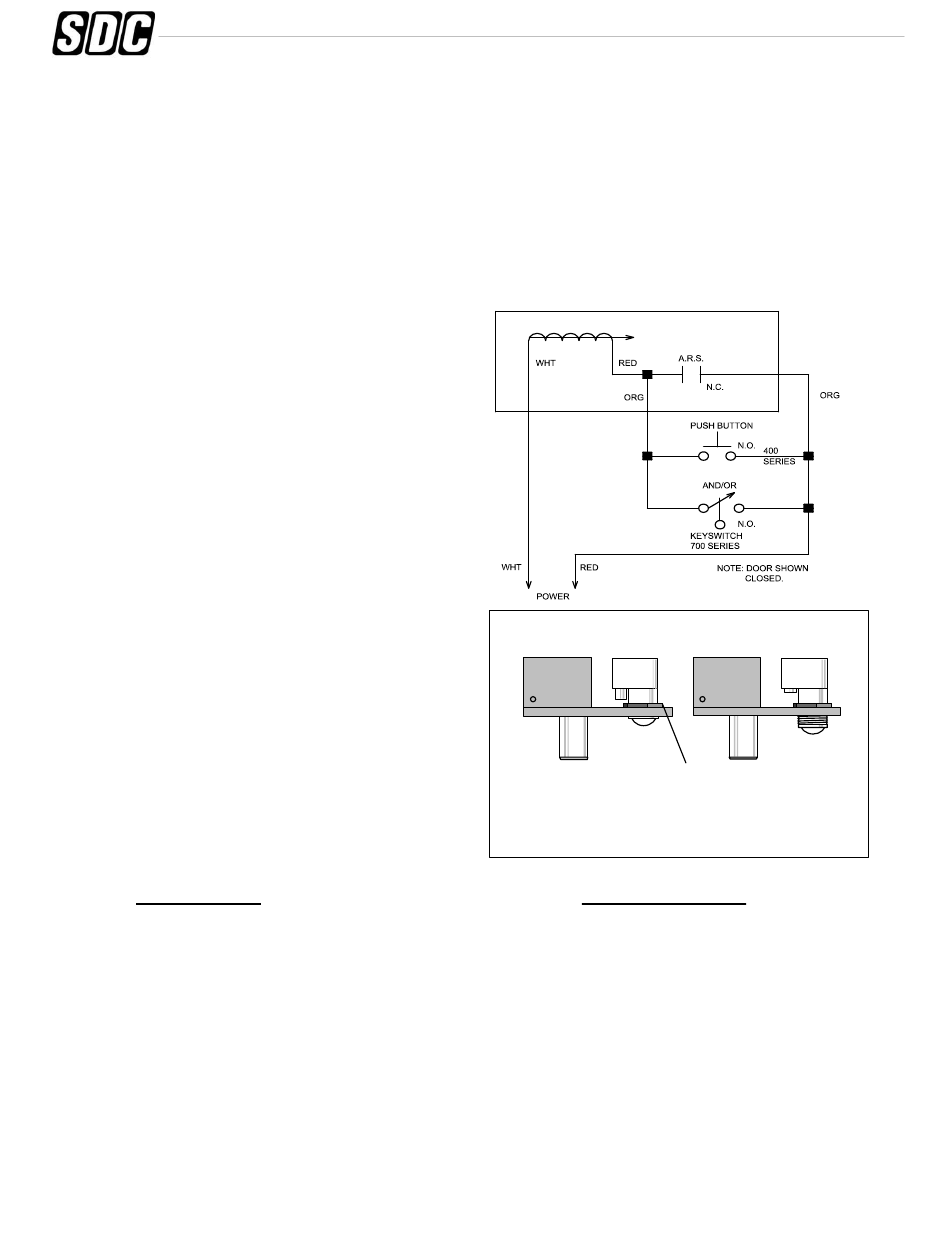

FAIL-SECURE
Fig. 2
Loosen nut.
Turn assembly
clockwise for wide
door gap.
Tighten nut.
Solution
Adjust top latch.
Check voltage at lock. Check rating of
transformer. Check for cracks in switch
on side of lock body.
Adjust auto relock switch
ARS has been bypassed. Check wiring.
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
