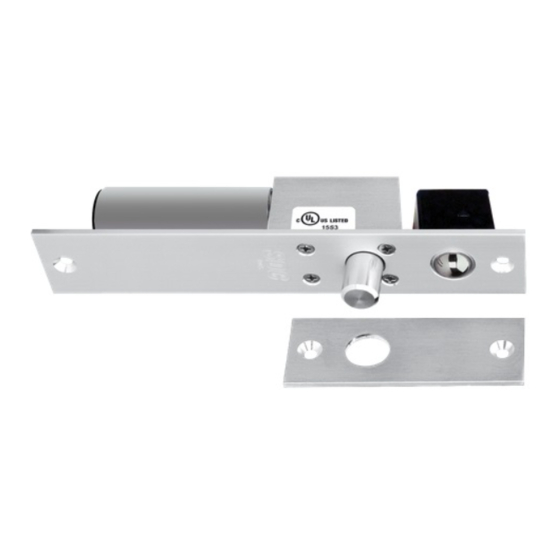

SDC PBD2090A Installation Instructions

3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION

1. Review the installation shown in figures A
through D. Center line of panic device deter-
mines location of release.
2. The locking bolt will function as long as it
enters the top latch bolt at some point. If it is
not possible to line up on the panic device
center line, a larger notch may have to be cut
in the lock stile of the door to clear the lock
latch bolt.
3. Remove bottom rod assembly.
4. A metal filler block must be placed in the top
rail at the point of automatic relock switch.
This block must be flush with the top of the
door (required for the automatic relock switch).
Because of variables, this filler block is not
supplied by SDC. Notch inside top rail at
relock switch.
5. After reinforcement tabs have been installed,

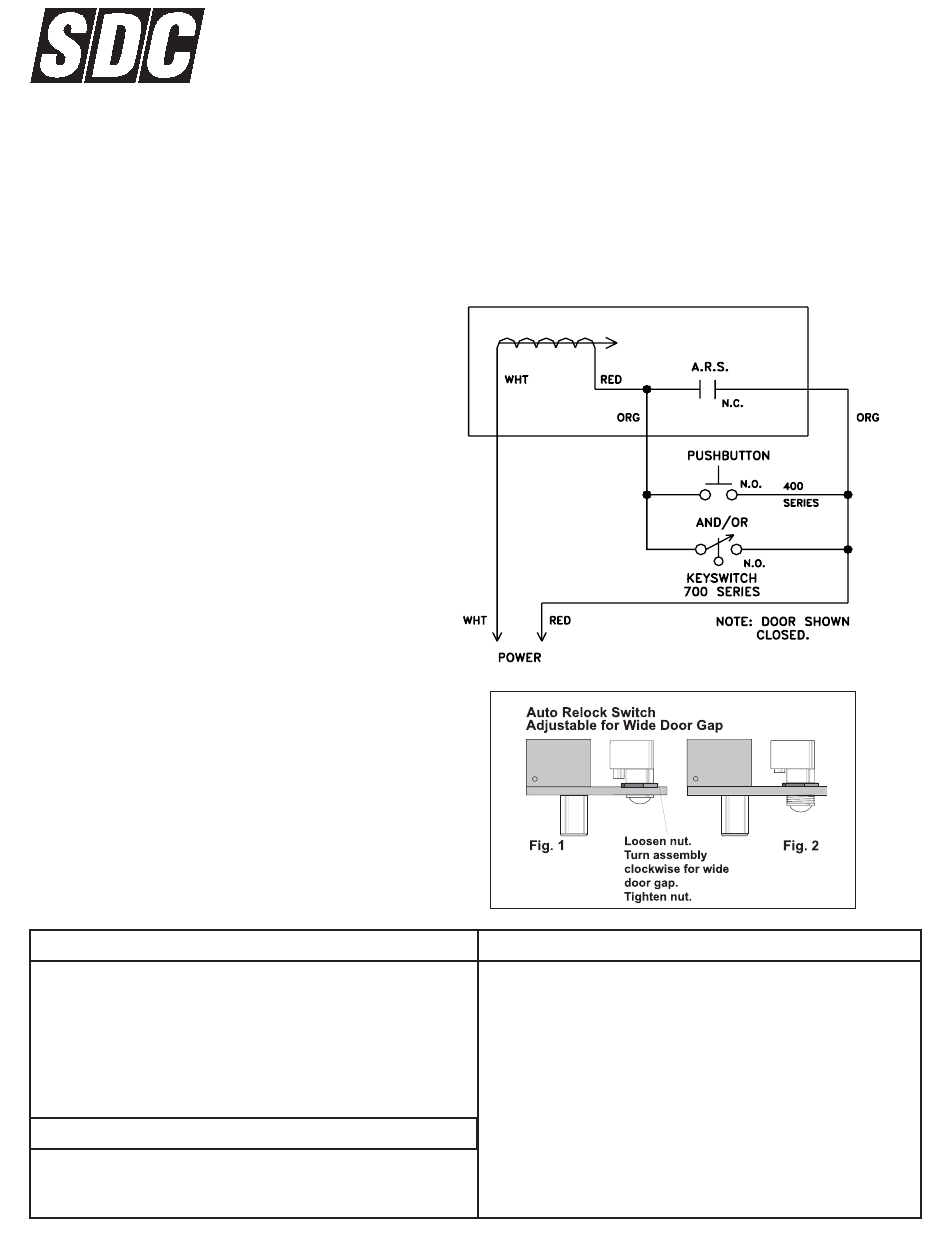

attach power leads as shown in wire diagram.
6. Insert lock into mortise and attach with
machine screws provided.

SPECIFICATIONS

Faceplate: 10" x 1-1/2" x 1/8"
I.D. Requirements: 10" x 1-1/2" x 1-1/2"
Solenoid: Continuous Duty 2 Stage
24 VAC and 24 VDC available
Pull-in Coil - 90 watt/3.8amp at 24VDC
Holding Coil - 12 watt/.5 amp at 24VDC
Bolt: Beveled stainless steel 1/2" diameter x 1/2" throw

BOLT POSITION SENSOR

No. 6 SPDT Indicates bolt locked or unlocked 5 amp
M:\INS\INST-PBD2090A REV A
SECURITY DOOR CONTROLS
INSTALLATION INSTRUCTIONS
MODEL PBD2090A
READ THOROUGHLY BEFORE INSTALLING.
CAUTION: This device for center hung doors only.
0702 Page 1
FAIL SECURE
(POWER UNLOCK)

TROUBLESHOOTING

Problem
Top latch will not
stand up.
Bolt will not retract.
Bolt projects too soon.
Bolt projects when
door is open.
Solution
Adjust top latch.
Check voltage at lock. Check
current rating of transformer.
Check for cracks in switch on
the side of lock body.
Adjust auto relock switch.
ARS has been bypassed.
Check wiring.
