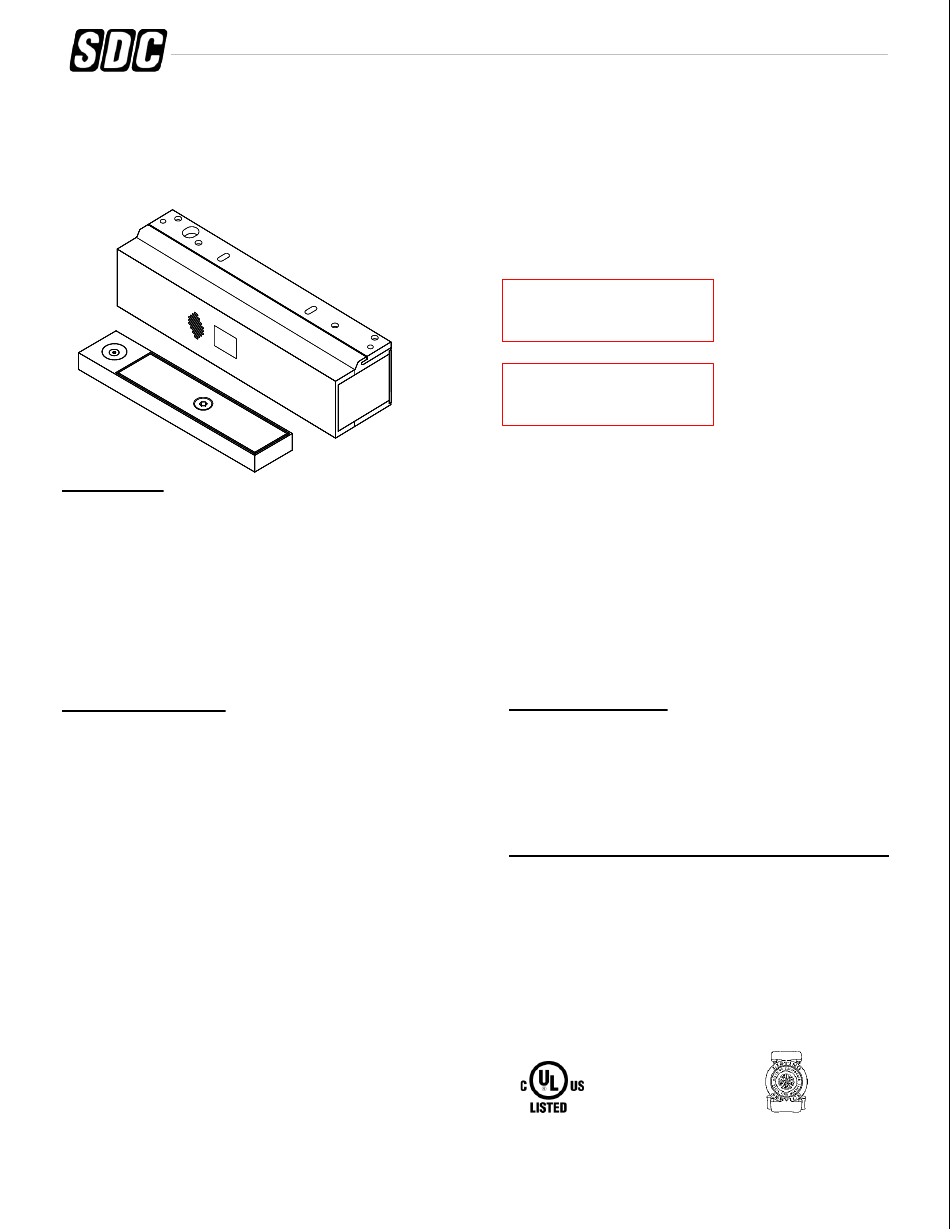

SDC EXIT CHECK 1511S Installation Instructions Manual

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
Application
When unauthorized egress is initiated, the Exit Check
An integral digital countdown display and voice commands inform the person intending to exit of the seconds remaining
to unlock. Meanwhile, the person exiting must wait allowing personnel or security respond. The door unlocks after the
15 or 30 second delay period has elapsed, permitting egress. A signal from the fire/life safety system will release the
lock immediately for uninhibited egress in an emergency.
®
Exit Check applications include:
•
Restricting the egress of patients for their own safety.
•
Restricting the egress of commercial center patrons for security application needs.
•
Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs
Standard Features
1500 lbs. Holding Force
15 or 30 Second Exit Delay when activated.
1 or 2 Second Nuisance Delay
75dB Alarm Tone with Digital Display & Selectable Voice
Instruction
Choice of Activation Trigger:
- Door Movement
- Exit Device w/ REX Switch
- Touch Sense Bar w/REX Switch
Auto Power-Up – Occurs when power is restored and/or
the fire panel is restored. (When Allowed by Code)
Manual Power-Up – This is a UBC & California Building
Code Compliant Feature – Only after power restoration
and fire panel reset may the lock be reset manually at the
opening. Lock can be reset with the built-in reset key
switch or, a key switch or keypad adjacent to the door.
Vandal resistant Proximity Sensor Trigger
Auto Sensing 12/24VDC input power
Connection for Tandem Option (Pairs of Doors)
P:\INST INSTRUCTIONS\DELAYED EGRESS\INST-1511ST
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
1511S / 1511T
®

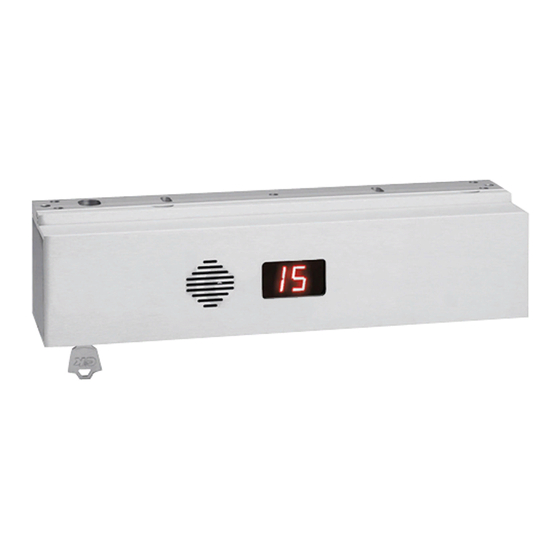

EXIT CHECK DELAYED EGRESS EMLOCK
®
delays egress through the door for a period of 15 or 30 seconds.
REV G9 12-21
®
PUSH UNTIL ALARM PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS. OPENED IN 15 SECONDS.
KEEP PUSHING. THIS DOOR
WILL OPEN IN 15 SECONDS.
ALARM WILL SOUND.
Optional Features
D = DPS Door Position Switch
B = BAS Bond Alert Sensor
A = ATS Anti Tamper Switch
E = Energy Saver Option (1200 lb. Holding Force)
Building & Fire Life Safety Code Compliant
IBC International Building Code
IFC International Fire Code
NFPA 101 Life Safety Code
NFPA 1, UFC, Uniform Fire Code
UBC Uniform Building Code
CBC California Building Code
SBC Standard Building Code
BOCA National Building Code compliant
Chicago Building Code compliant
Only the 1511S and the 1511T Only the 1511S and the 1511T
have been UL listed as Special have been UL listed as Special
Locking Arrangements to UL Locking Arrangements to UL
Standard 294, and NFPA 101. Standard 294, and NFPA 101.
GWXT, GWXT7 - Auxiliary Locks - UL,cUL Listed GWXT, GWXT7 - Auxiliary Locks - UL,cUL Listed
FWAX - Special Locking Arrangements - UL Listed FWAX - Special Locking Arrangements - UL Listed
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
Page 1 our website or email engineer@sdcsecurity.com
California Building
Code Compliant
California State California State
Fire Marshal Listed Fire Marshal Listed
CSFM #3774-0324:103 CSFM #3774-0324:103
