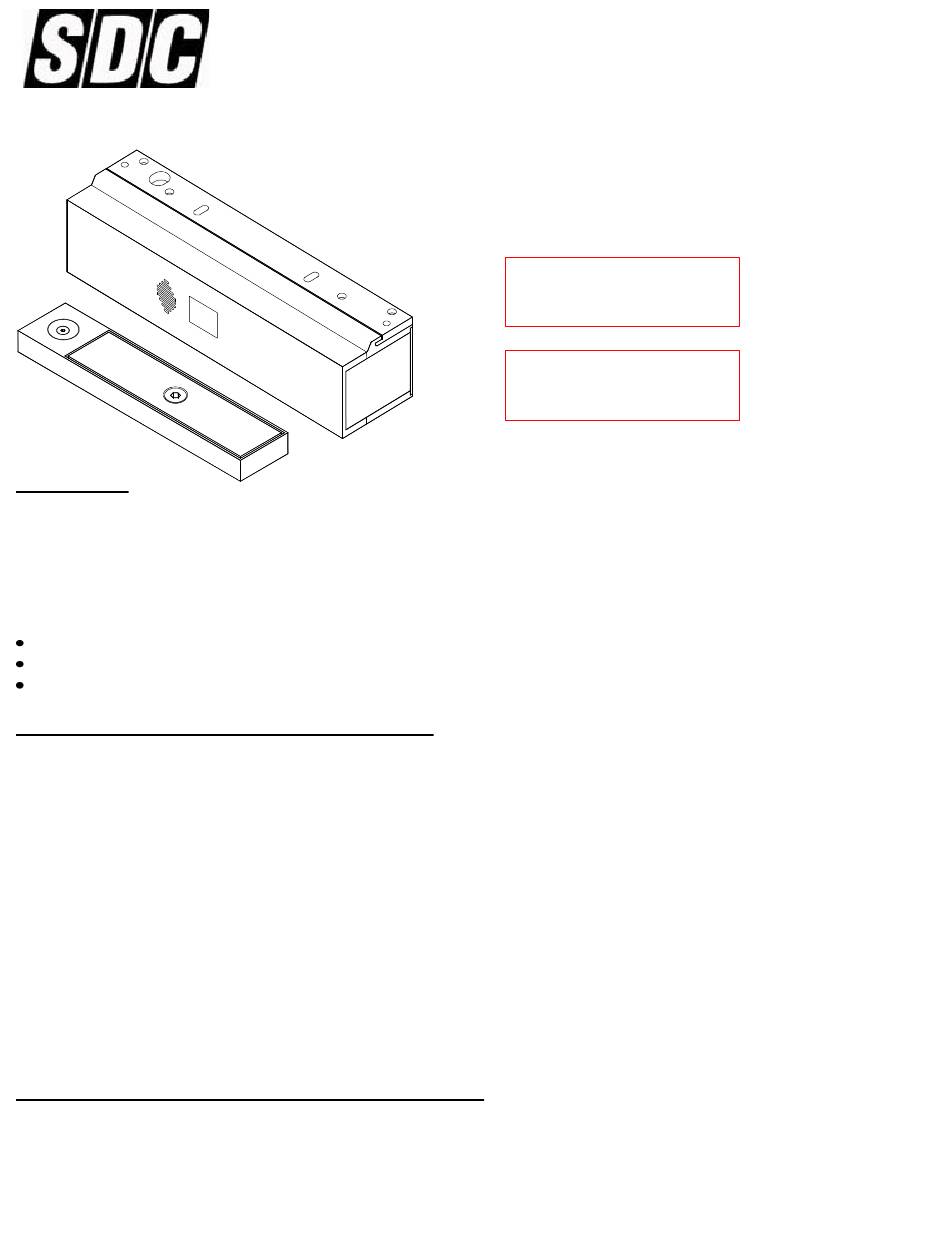

SDC EXIT CHECK 1511S Nstallation Instructions

3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
Application
When unauthorized egress is initiated, the Exit Check
Meanwhile, the person exiting must wait while personnel or security respond. An integral digital countdown display and
voice commands inform the person intending to exit of the seconds remaining to unlock. The door unlocks after 15 or
30 seconds have elapsed, permitting egress. A signal from the fire/life safety system will release the lock for uninhibited
egress in an emergency.
®
Exit Check applications include:
Restricting the egress of patients for their own safety.
Restricting the egress of commercial center patrons for security application needs.
Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs
1511S Operational Description (NFPA-101)
The 1511S operation complies with the following building and fire codes: NFPA 101; NFPA 1-UFC; UBC; IBC; IFC; SBC;
California Building Code. Listings: UL Listed: Special Locking Arrangements and Auxiliary Locks; California State Fire
Marshal (CSFM) Listed.

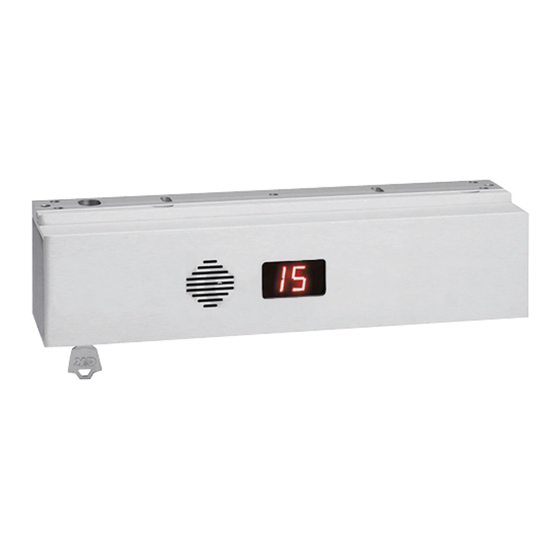

The door is normally closed & secured and/or latched. The model 1511S Exit Check secures the door in the locked
condition, and the display shows the preset delay time.
Activation of the 1511S Exit Check is made by releasing the door latch and applying up to 15 lbs. of pressure to the door,
giving a pre-activation warning tone. (A 1 or 2 second nuisance delay will prevent false activation of the alarm).
When the nuisance delay time has been exceeded, the Exit Check begins the irreversible door release cycle. At this
time the display continues to count down, the verbal warning continues and an alarm output is provided to alert
personnel of an unauthorized exit.
The integral digital countdown display and voice commands inform the person intending to exit of the seconds remaining
to unlock. The Exit Check will release the door after the 15 or 30 second delay cycle has expired, allowing free egress. A
steady warning tone with the voice command "Exit Now" will sound until the Exit Check is reset by authorized personnel.
1511S Operational Description (BOCA/Chicago)
The 1511S operation complies with BOCA National Building Code and the Chicago Building Code: UL Listed, Special
Locking Arrangements and Auxiliary Locks.
The releasing operation of the 1511S is the same as described above, with the exception that the door relocks
automatically 30 seconds after closure (reset switch not required). Each time the door is open before 30 seconds has
elapsed the relock timer resets and relocks the door in 30 seconds.
P:\INSTALLATION INST\Delayed Egress\INST-1511ST\INST-1511ST.vsd
SECURITY DOOR CONTROLS
INSTALLATION INSTRUCTIONS
®
EXIT CHECK
Rev E
DELAYED EGRESS EMLOCK
1511S / 1511T
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS.
KEEP PUSHING. THIS DOOR
WILL OPEN IN 15 SECONDS.
ALARM WILL SOUND.
®
delays egress through the door for 15 or 30 seconds.
09-08 Page 1
®
California Building
Code Compliant
