Security Door Controls
3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
PROGRAMMING INSTRUCTIONS

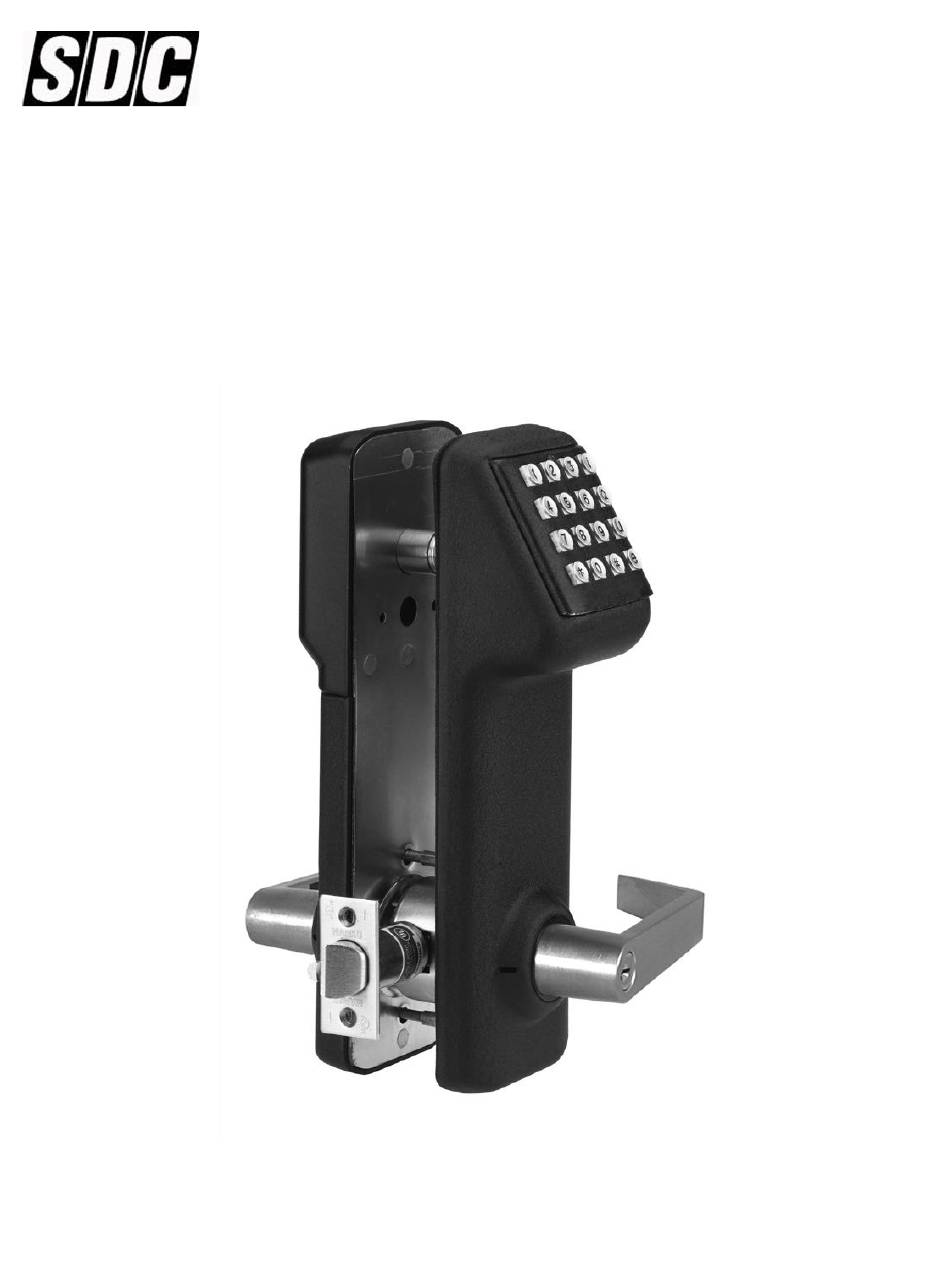

E72K-A CIVIC SERIES
160 User Electronic Digital Door Lock
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
P:\INSTALLATION INST\ELECTRIFIED LOCKSETS/INST-E72K-A/INST-E72K-A.vsd
REV -
07-08
Page 1
our website or email engineer@sdcsecurity.com
Advertisement
Table of Contents
Related Manuals for SDC E72K-A CIVIC SERIES
Summary of Contents for SDC E72K-A CIVIC SERIES
- Page 1 3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com PROGRAMMING INSTRUCTIONS E72K-A CIVIC SERIES 160 User Electronic Digital Door Lock Any suggestions or comments to this instruction or product are welcome. Please contact us through P:\INSTALLATION INST\ELECTRIFIED LOCKSETS/INST-E72K-A/INST-E72K-A.vsd...
- Page 2 IMPORTANT KEYS: TERMINATOR KEY ( ) Acts like the “Enter” key on a computer, and is used to confirm entries on the keypad. PROGRAMMING KEY (#) After a valid Master Code is entered, this key is depressed to enter the programming mode. NOTE: At the end of any programming series, replace the last with a # to return to function number input.
- Page 3 PIN ONLY ENTRY The PIN only mode will shorten the code required to open the lock. ENABLE (PIN TO OPEN LOCK) Enter MASTER CODE DISABLE (USER ID & PIN TO OPEN LOCK) Enter MASTER CODE CHANGE USER PIN This function gives the users the ability to change their PIN (user must know their User ID & PIN to perform this function). Enter MASTER CODE (New PIN) (Verify PIN)
- Page 4 MANUAL PASSAGE MODE This function puts the lock in an unlocked state, granting free egress (no code required) to all Users until the lock is returned to the locked state. Returns to locked state at midnight and requires that the time be set (see “Set Time” below). ENABLE Enter MASTER CODE DISABLE...
- Page 5 PRIVACY MODE/SECRETARY MODE An E72K-A with the Privacy Mode option (Secretary Mode is default) will have a button installed on the inside housing. When the button is pressed it will block out keypad entries (except User Codes from groups 01-03). When the inside lever is pressed the request to exit switch will reset the keypad back to normal operating mode.
- Page 6 BATTERY INFORMATION THE E72K-A IS SHIPPED WITH 4 “AA” ALKALINE BATTERIES: The life span has been tested in two different ways. The first test was performed to see how many operations could be performed repeatedly before a failure. The test averaged 150 thousand operations. The second test was performed over time for normal operations.
- Page 7 Group Group User User Name Number Name Number Code Number Number Code P:\INSTALLATION INST\ELECTRIFIED LOCKSETS/INST-E72K-A/INST-E72K-A.vsd REV - 07-08 Page 7...
Need help?
Do you have a question about the E72K-A CIVIC SERIES and is the answer not in the manual?
Questions and answers

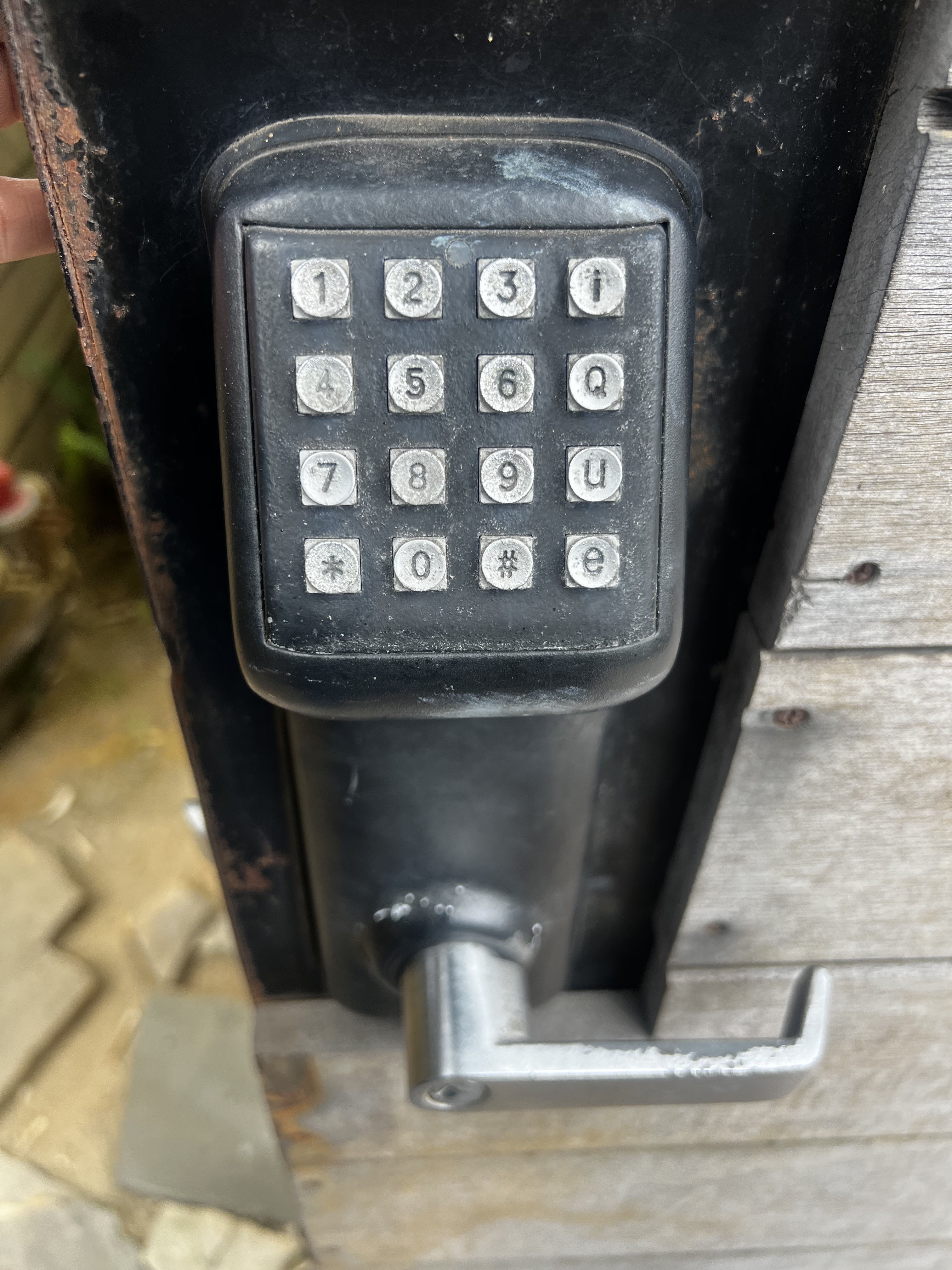

Can i get a step by step video link or instructions on how to change the code on my SDC E72K-A CIVIC Series lock? I do not know the master code and I'm extremely confused how to do this. I need to change the code for a property I manage and this needs to be done this week. A instructional video or simple clear instructions are best. Thank you!
