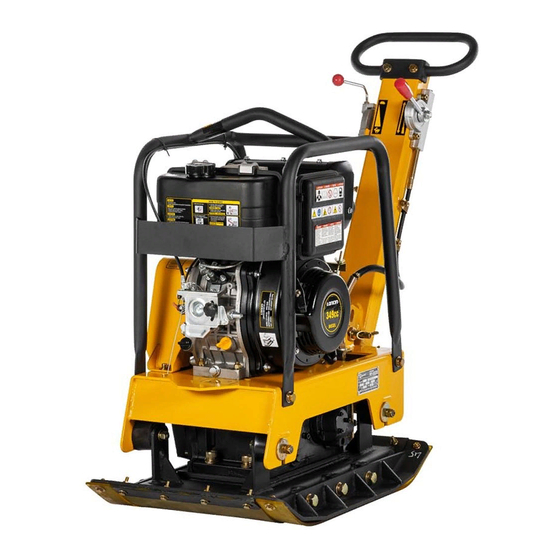

Lumag RPi31DE Operator's Manual
Compactor wacker plate
Hide thumbs
Also See for RPi31DE:
- Operator's manual (24 pages) ,
- Original operating instructions (36 pages)
Subscribe to Our Youtube Channel
Related Manuals for Lumag RPi31DE
Summary of Contents for Lumag RPi31DE
- Page 1 Distribution Limited Compactor Wacker Plate Operator’s Manual RPi31DE FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING THIS MACHINE...
- Page 3 For the warranty to be valid the Warranty Registration Form must be completed and returned to Lumag Distribution Limited within 14 days of the purchase, together with a copy of the purchase invoice. We will use your email to confirm that we have received the completed Warranty Registration Form and contact you about any errors or omissions on the form.
- Page 5 Lubricate X (2) Parts & Cables 1 – First service only, 2 = Should be carried out by your Lumag Dealer, 3 = May need to be done more often in dusty areas & 4 = Replace paper element only...
- Page 7 CONTENTS Introduction Applications Structure Functions and controls Accessories For safety operation Hazards and risks Operation Care and preventive maintenance Service 9 10 Specifications Spare parts and service Replacement and parts list 12 15 INTRODUCTION Thank you for your selection of our equipment. We have taken care in the design, manufacture and testing of this product.
- Page 8 recommended to use. Tamping Rammer, Vibro Compactor and Vibration Roller which compacting force is rather effective.Please use this compactor for compacting surface on soil, sediment, sand , beaching and asphalt. It is not recommended for use this machine for the other applications. STRUCTURE The upper part is made up of Power Source, Handle ,Belt Cover and Guard Hook which are fixed by Engine base.
- Page 9 Safety: This section outlines basic safety procedures that apply to the operation,maintenance and adjustment of the plate compactor. This unit is designed as a powerful, productive machine that should be operated with respect and caution. Misuse or carelessness can result in serious injury or property damage. Or both. Safety precautions must be observed at all times.
- Page 10 HAZARDS AND RISKS NEVER allow any person to operate the machine without adequate instruction . ENSURE all operators read,understand and follow the operating instructions SERIOUS INJURY could result from improper or careless use of this machine Plate compactors are heavy units and should be positioned by two people of appropriate strength. Using the lifting handles provided on the machine, along with correct lifting techniques.
- Page 11 ENSURE that petrol is only stored in an approved storage container. DO NOT refuel the motor while it is in operation or hot. DO NOT refuel the motor in the vicinity of sparks, a naked flame or a person smoking. DO NOT over fill the fuel tank and avoid spilling petrol when refueling.
- Page 12 Where possible the site should tbe graded and leveled before commencing compaction. Correct moistrure content in soil is vital to proper compaction.Water acts as a lubricant to help slide soil particles together. Too little moisture means inadequate compaction; too much moisture leaves water-filled voids that weaken the soil s load bearing abiliy.
- Page 13 and check the oil level. Make sure the compactor is level when checking. The oil level should be up to the oil plug. Every month or every 200 hours of operation, replace the oil. ! IMPORTIONA Use the motor oil SAE When changing the oil, the old oil can be drained by tipping the unit.
- Page 14 . Close the choke lever. If the engine is warm or the ambient temperature is high, open the choke lever half-way, or keep it Fully open. If the engine is cold or the ambient temperature is low, close the choke lever fully. Fig-6 3-5.
- Page 15 damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase can fall below a safe limit, the Oil Alert System will automatically stop the engine (the engine switch will remain in the ON position). ! NOTICE If the engine stops and will not restart, check the engine oil level.
- Page 16 Moving parts: Shutdown engine before performing service or maintenance. Contact with moving parts cause serious injury. High temperature: Allow machine and engine to cool before performing service or maintenance. Contact with hot components can cause serious burn. 7-1. Daily Service A.
- Page 17 several times by hand so that the cylinder interior is covered with oil. C. Clean the outer surface of the machine with an oil moistened cloth. Cover the unit and store in a humidity-free area. CARE AND PREVENTIVE MAINTENANCE Check the oil level in the motor crankcase daily. Check the vibrator oil level weekly. Inspect the rubber anti vibration mounts for wear or deterioration.
- Page 18 •Check for leakage of fuel or oil.� •Check for loose screws including tightness. See Table 3 below (tightening torque), for retightening: TABLE 3. TIGHTENING TORQUE ( in.kg/cm ) Diameter Material 10mm 12mm 14mm 16mm 18mm 20mm 1100 1400 2000 6-8T 1300 2000 2700...
- Page 20 •Major components list ��������� ��������� ������������ ��������� �� � ������� ��������������������� �� �� � ������� ���������������� �� �� � ������� ���������������� �� �� � ������� ���������������� �� �� � ������� ������� �� �� � ������� ������� �� �� � ������� ��������...
- Page 22 •Major components list ITEM NO. PART NO. DESCRIPTION QUANTITY 30001 Belt cover (blow) 30002 Screw M8*25 30003 Washer, lock M8 30004 Washer, Plat 8.5*32*2.5 30005 Pulley, driven 30006 Bearing cover / pulley 30007 Packing 30008 Oil seal 28*50*10 30009 Case cover 30010 Stop dowel 8*35 30011...
- Page 24 Unit 10, Hatchmoor Industrial Estate, Hatherleigh, Okehampton, Devon EX20 3LP www.lumag-gb.co.uk 01837 811741 Lumag Distribution Limited Company Number: 09267547 VAT Number: GB154566788 Hatherleigh Plant and Tool Hire is a trading name of Lumag Distribution LTD...
