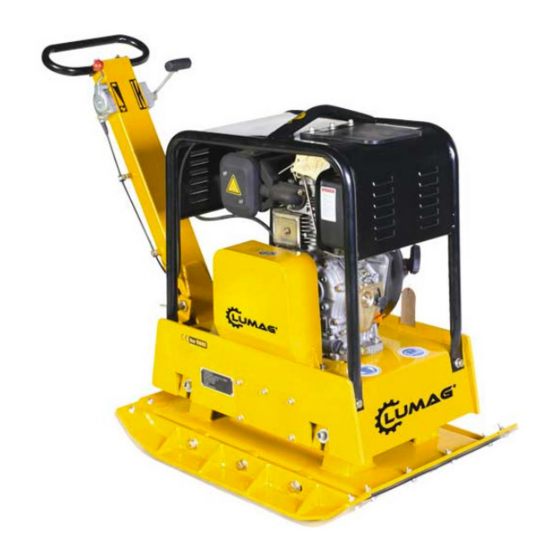

- Page 1 Distribution Limited Compactor Wacker Plate Operator’s Manual RP300 FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING THIS MACHINE...
-
Page 3: Warranty Registration Form
For the warranty to be valid the Warranty Registration Form must be completed and returned to Lumag Distribution Limited within 14 days of the purchase, together with a copy of the purchase invoice. We will use your email to confirm that we have received the completed Warranty Registration Form and contact you about any errors or omissions on the form. - Page 5 Lubricate X (2) Parts & Cables 1 – First service only, 2 = Should be carried out by your Lumag Dealer, 3 = May need to be done more often in dusty areas & 4 = Replace paper element only...
- Page 20 •Major components list ITEM NO. PART NO. DESCRIPTION 330001 Hexagonal bolt M8*25 � � 330002 Washer, lock M8 � � 330003 Washer, plat M8 � � 330004 Clutch assembly � � � 330005 � V-belt 330006 Hexagonal bolt M8*20 � �...
- Page 22 •Major components list ITEM NO. PART NO. DESCRIPTION 330501 Belt Cover(blow) 330501A Oil seal 20*30*6 330502 Screw M8*16 330503 Washer, lock M8 330504 Washer, plat 8.5*32*2.5 330505 Pulley, driven 330506 Bearing cover/pulley 330507 Packing 330508 Oil seal 28*50*10 330509 Case cover 330510 Stop dowel 8*40 330510A...
- Page 23 330540 Groove 330541 Washer, copper 5*16*2.5 330542 Washer, lock M5 330543 Socket head bolt M5*10 330544 Rotator 330545 Lever 330546 O-ring 30*4 330547 Holder 330548 Washer, lock M10 330549 Socket head bolt M10*20 330550 Spring 330551 Bearing 16008 330552 Plug, oil M12*1.25*12...
