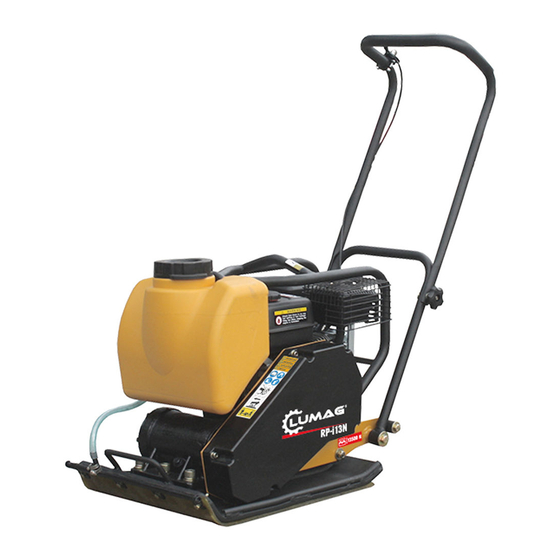

- Page 1 Distribution Limited Compactor Wacker Plate Operator’s Manual RPi13N FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING THIS MACHINE...
- Page 3 For the warranty to be valid the Warranty Registration Form must be completed and returned to Lumag Distribution Limited within 14 days of the purchase, together with a copy of the purchase invoice. We will use your email to confirm that we have received the completed Warranty Registration Form and contact you about any errors or omissions on the form.
- Page 5 Lubricate X (2) Parts & Cables 1 – First service only, 2 = Should be carried out by your Lumag Dealer, 3 = May need to be done more often in dusty areas & 4 = Replace paper element only...
-
Page 9: Table Of Contents
CONTENTS Introduction ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥1 Applications ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥1 Functions and controls ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥1 Accessories‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥1 Hazards and risks‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥1-3 Operation‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥3-6 Care and preventive maintenance ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥6-7 Specification ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥8-9 Transportation‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥9 Trouble shooting ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥9-10 Replacement parts list ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥11-13 INTRODUCTION Thanks for your selection of this equipment. We have taken care in the design, manufacture and testing of the product. - Page 10 Using the lifting handles provided on the machine, along with correct lifting techniques. ! MECHANICAL HAZARDS DO NOT operate the machine unless all protective guards are in place. KEEP handles and feet clear of rotating and moving parts as they will cause injury if contacted. ENSURE that the motor operation switch is in the OFF position and the spark plug ignition lead is disconnected before removing the guards or making adjustments.
-
Page 11: Operation
Slip/Trip/Fall is a major cause of serious injury or death. Beware of uneven or slippery work surfaces. Exercise care when working in the vicinity of unprotected holes or excavations. OPERATION Pre-start-up Inspection The following pre-start-up inspection must be performed before the start of each work session or after every four hours of use, whichever is first. -
Page 12: Care And Preventive Maintenance
engine on full throttle, as the compactor will vibrate as soon as the engine starts. 5. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the recoil starter until engine resistance is felt, then let starter return. 6. - Page 13 CAUTION: Inspection and other services should always be carried out on hard and level ground with the engine shut down. Inspection and Maintenance Service Tables. To make sure your plate compactor is always in good working condition before using, ca rry out the maintenance inspection in accordance with Table 1 through 3.
- Page 14 6-8T 1300 2000 2700 3800 1200 2000 2900 4200 5600 100(6mm) 300-350(8mm) 650-700(10mm) *In case counter-part is of aluminum (Threads in use with this machine are all right handed) Material and quality of material is marked on each bolt, and screw. Changing Vibrator Oil When changing the vibrator oil, remove the drain plug located at the bottom-right of the vibrator, and simply tip the compactor to drain the oil.
-
Page 15: Specification
Check the clutch simultaneously with V-belt checking. With belt removed, check outer drum of the clutch for seizure and “V” groove for wear or damage with your eyes. Clean the “V” groove as necessary. Wear of lining or shoe should be checked with running check. If the shoe is worn, power transmission becomes deficient and slipring will result. -
Page 16: Trouble Shooting
transportation. TROUBLE SHOOTINGN SYMPTOM POSSIBLE CAUSES SOLUTION Engine speed too low? Set engine speed to correct RPM Clutch slips? Check or replace clutch. Travel speed too low, V-belt slips? Adjust or replace V-belt. and vibration is weak. Excessive oil in vibration? Drain excess oil and fill to proper level Malfunction in vibrator housing? Check eccentric, gears and counter... - Page 17 Head gasket and/or spark plug Replace head and spark plug gasket. gasket damaged? Fuel not available in fuel tank? Fill with correct type of fuel. Fuel cock does not open properly? Apply lubricant to loosen fuel cock level, No fuel present replace if necessary.
- Page 19 CNP15 PARTS LIST 1 ITEM NO. PART NO. DESCRIPTION 153001 BASE PLATE 154000 VIBRATOR ASSEMBLY 153002 SHOCK ABSORBER 017010 NUT M10-GB170 093010 SPRING WASHER 10-GB93 095010 WASHER 095016 WASHER16-GB93 093016 SPRING WASHER 16-GB93 057016 BOLT M16*40-GB5783-86 153003 ENGINE MOUNTING PLATE 057010-30 BOLT M10*30-GB5783 093010...
- Page 20 156003 COLLAR 156002 RUBBER 156005 RUBBER MOUNT 096012 WASHER 12-GB96 057012 BOLT M12*65-GB5780 093012 SPRING WASHER 12-GB93 155000 GUARD HOOK 057010-25 BOLT M10*25-GB5783 093010 SPRING WASHER 10-GB93 THROTTLE CONTROL LEVER（OPTIONAL） A2004001 THROTTLE CONTROL WIRE（OPTIONAL） 156006-1 2001002-2 FIX STRIP（OPTIONAL） WASHER 10-GB97（OPTIONAL） 0097017 0093010 SPRING WASHER 10-GB93（OPTIONAL）...
- Page 22 CNP15 PARTS LIST 2 ITEM NO. PART NO. DESCRIPTION 154009 VIBRATING CASE 154002 PLUG SCREW 154001 PACKING PIECE 154007 ECCENTRIC ROTATOR 027011 BEARING 6211-GB276 CASE COVER（R） 154008 CASE COVER（L） 154006 154005 PROTECTIVE COVER 098053 OIL SEAL 35*8-GB9877 034100 O-RING 100-GB3452.1 057008-25 BOLT M8*25-GB5783 093008...
- Page 23 CNP15 PARTS LIST 3 ITEM NO. PART NO. DESCRIPTION 157001 WATER TANK 157007 COCK 157004 SPRING PIPE PIPE HOLDER（L） 157003 PIPE HOLDER（R） 157005 057008-30 BOLT M8*30-GB5783 095008 WASHER 8-GB95 157002 CAP WATER TANK 057010-30 BOLT M10*30-GB5783 095010 WASHER 10-GB95 017101 NYLON NUT M10-GB170...
- Page 24 Unit 10, Hatchmoor Industrial Estate, Hatherleigh, Okehampton, Devon EX20 3LP www.lumag-gb.co.uk 01837 811741 Lumag Distribution Limited Company Number: 09267547 VAT Number: GB154566788 Hatherleigh Plant and Tool Hire is a trading name of Lumag Distribution LTD...
