Lumag EB400PRO Operator's Manual

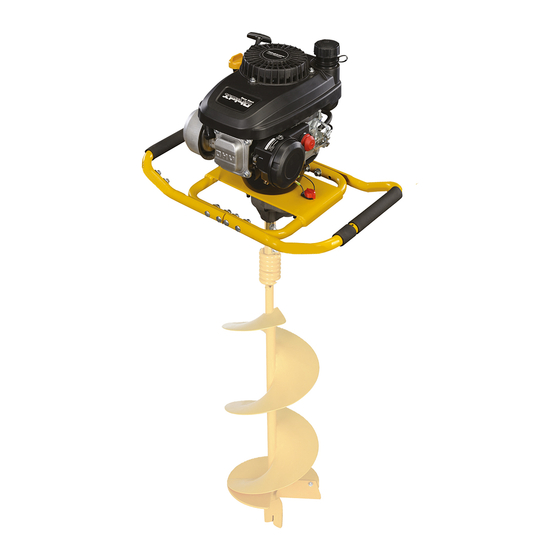

Petrol 2 man post hole borer
Hide thumbs Also See for EB400PRO:

Advertisement

Quick Links

Download this manual
Distribution Limited
Petrol 2 Man Post Hole Borer
Operator's Manual
EB400PRO
FOR YOUR SAFETY
FOR YOUR SAFETY
FOR YOUR SAFETY
READ AND UNDERSTAND THE ENTIRE MANUAL
READ AND UNDERSTAND THE ENTIRE MANUAL
Ensure you read and understand how to operate
BEFORE OPERATING THIS MACHINE
the machine safely. Check your machines oil
BEFORE OPERATING THIS MACHINE
levels before every use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the EB400PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumag EB400PRO

Summary of Contents for Lumag EB400PRO

  • Page 1 Distribution Limited Petrol 2 Man Post Hole Borer Operator’s Manual EB400PRO FOR YOUR SAFETY FOR YOUR SAFETY FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL READ AND UNDERSTAND THE ENTIRE MANUAL Ensure you read and understand how to operate BEFORE OPERATING THIS MACHINE the machine safely.
  • Page 3 Lubricate X (2) Parts & Cables 1 – First service only, 2 = Should be carried out by your Lumag Dealer, 3 = May need to be done more often in dusty areas & 4 = Replace paper element only...
  • Page 6 OVERVIEW OVERVIEW FOREWORD INFORMATION MANUAL INTENDED USE TECHNICAL DESCRIPTION RUN TIME LIMITATION ENVIRONMENT SAFETY INSTRUCTIONS General safety Personal protective equipment Safe Handling of Fuels / Refueling 7.4. Service security behavior in case of emergency Residual hazards and protective measures SYMBOLS DELIVERY 10.
  • Page 7 FOREWORD FOREWORD WATCH OUT! Read and follow the safety information and instructions before use. Familiarize yourself with this manual with the machine, its proper use and the safety instructions. Keep this safe place so that you are readily available information. Pass the machine to another person, please hand over the complete manual from with.
  • Page 8 INFORMATION ON THE OPERATING INSTRUCTIONS INTENDED USE reservations Information on specifications, dimensions and illustrations of the machine as well as changes of safety standards are subject to further development and are therefore not in any case for the supply binding. Printing and typographical errors.

  • Page 9: Technical Description

    TECHNICAL DESCRIPTION For use on rocky, hard and strong the rooted soil, the machine has limited abilities. ■ The machine must not be used in public facilities, parks, sports grounds or on streets and in agriculture and forestry. ■ The machine must where electrical lines, gas lines, water pipe or telephone lines are laid underground not in rain, on ice, on very hard, stony ground or in areas used.
  • Page 10 RUN TIME LIMITATION ENVIRONMENT RUN TIME LIMITATION In residential and small housing estates or on the grounds of hospitals and Nursing homes must on Sundays and public holidays all day and on weekdays from 20.00 to 7:00 Drilling rigs are not operated. Please also refer to the regional regulations for noise control.

  • Page 11: Safety Instructions

    SAFETY INSTRUCTIONS NOTE Failure to observe this instruction is a risk of damage to the engine or other property. In addition, the manual contains other important passages that by the word ATTENTION Marked are. General safety To ensure correct operation the user has to read this manual to familiarize yourself with the handling of the machine.
  • Page 12 SAFETY INSTRUCTIONS extend. Note, however, that the personal predisposition to poor circulation and / or large gripping forces reduce the period of use while working. Other persons, especially children away from work area. The machine does not operate in damp or wet environment or exposing it to rain The machine in highly flammable vegetation and where fire or explosion hazard do not use.
  • Page 13 SAFETY INSTRUCTIONS Hazard. Always follow the warnings and parallel to the additional safety instructions given in this manual. Failure to do so could result in serious injury or death. not refuel the engine indoors, garages or enclosed spaces, start or run. The exhaust gas of the engine contains poisonous carbon monoxide.
  • Page 14 SAFETY INSTRUCTIONS Service security Improper maintenance or failure to comply or failure to correct a problem can be a source of danger during operation. Only operate regularly and properly maintained machine. Just so you can assume that you operate your machine safe, economical and trouble-free.
  • Page 15 Maintenance and repair work must be carried out as far as they are described in this manual. All other work must be carried out by a specialist workshop or LUMAG service workshop. Use only original spare parts and accessories. Through the use of other spare parts and other accessories can be expected with an increased risk of accidents.
  • Page 16 SAFETY INSTRUCTIONS Neglecting ergonomic principles Careless use of personal protective equipment (PPE) Negligent use or omission of personal protective equipment can result in serious injury. → Wear prescribed protective equipment. Human behavior, misconduct → Always be fully focused when working. residual risk - Can never be ruled out.
  • Page 17 SYMBOLS other dangers Escaping objects or liquids When boring people and animals can be injured by being thrown out of stones, wood pieces and the like.. → Make sure that no persons or animals are in the danger area and wear appropriate protective clothing and eye and ear protection.
  • Page 18 SYMBOLS Wearing safety gloves. Warning of hot surfaces. Burns! Do not touch hot engine parts. They remain hot for a short time even after switching off the machine. Warning of rotating parts. Warning! Risk by flying objects with the engine running. Keep uninvolved persons and domestic animals away from rotating machine parts.
  • Page 19 DELIVERY DELIVERY Check the contents of the box / shipping box after unpacking ■ completeness ■ any transport damages Share with complaints immediately to the dealer or manufacturer. Later complaints will not be accepted. Drive unit (drill attachment optional) Bow handle (2 pieces) connecting shaft torsion spring The original operating instructions...

  • Page 20: Controls And Functions

    CONTROLS AND FUNCTIONS CONTROLS AND FUNCTIONS drive unit The drive unit consists of gasoline engine, clutch, fuel system, ignition system, reversing and maintenance-free special gear. recoil the engine is started by pulling of the cable. Fuel pump (primer) To start relief after prolonged shutdown of the machine. The pump operate until the fuel flows visible through the transparent return line.
  • Page 21 CONTROLS AND FUNCTIONS Motor switch (ignition switch) The engine switch enables and disables the ignition system. set the switch to "ON" position to start the engine. set the switch to "OFF" position to turn off the engine. choke The choke lever opens and closes the choke valve in the carburetor. "OFF" becom enriched air-fuel mixture for cold starting of the engine.

  • Page 22: Transport / Storage

    TRANSPORT / STORAGE TRANSPORT Before transporting or storing indoors the motor of the machine Allow to cool to avoid burns or fire. Changing your location on a short distance during the work, the engine is off. After using • Turn the machine off, it set the engine switch to the OFF position. •...
  • Page 23 ASSEMBLY ASSEMBLY Secure the drive unit on a stable surface and perform the following steps for the assembly or for testing. 13.1 Mounting bracket handle, throttle and connecting shaft Bow handle on the frame of the drive unit - as shown in the figure - assemble. 1.
  • Page 24 ASSEMBLY 1. Plug the connecting shaft to the input shaft and the other end between the torsion spring. 2. Now secure the connecting shaft to the drive shaft and the torsion springs with screws, washers and nuts. 13.2 Assembly drill (accessory) Drill attachment to the shaft of the drive unit - as shown in the figure - assemble.

  • Page 25: Getting Started

    GETTING STARTED GETTING STARTED WATCH OUT! Carefully read the safety information (see "Safety"). 14.1 Special security for Earth drilling Do not work alone, for emergencies must be someone nearby. Make sure that the working area of the machine no children or other people. Watch out for animals.
  • Page 26 GETTING STARTED Do not stand or put the overheated machine in dry grass or on any inflammable objects - fire hazard! Before doing any work on the machine it is essential engine and pull the plug cap and wear protective gloves. The auger may be started only after complete assembly and inspection.
  • Page 27 GETTING STARTED Secure holes always off, or else risk of injury! Run with the auger holes in the ground only through. Other applications are not permitted. 14.3 Fuels / Refueling You may only carry out the work described in this chapter, after you have read the safety and understood.
  • Page 28 GETTING STARTED 1 Dipstick 2 MAX oil level 3 MIN oil level 4 Oil drain plug motor oil Dipstick Engine Oil Capacity: about 0.55 liters Do not overfill! When oil SAE 30 is used below 10 ° C, there is a severe start and possible damage to the engine bore by insufficient lubrication.
  • Page 29 GETTING STARTED Refuel in a well-ventilated area with the engine stopped. If the engine has just been running, allow it to cool first. Never refuel the engine inside a building where gasoline fumes may reach flames or sparks. Gasoline is extremely flammable and explosive. You may suffer burns or other serious injuries when handling fuel.
  • Page 30 GETTING STARTED 14.4 start the motor at least 3m away from the tank space! provide machine firmly on the ground: • Left foot on the bow handle • Left hand on the bow handle • Drill bit must not open touch the fuel tap the ground.
  • Page 31 Motor switch (ignition switch) set to "OFF" position. If the engine does not stop, choke close to the engine shut down. Check the engine switches from the LUMAG service workshop or an authorized workshop or repaired before the machine is used again.
  • Page 32 GETTING STARTED 14.6 business Check before starting the engine: • the fuel level - the tank should be at least half full • the state of the fuel lines • external screw tightness • the place of use WATCH OUT! eighth during startup that the drill can rotate freely. Hold the handles of the machine up to chest height, otherwise you could lose control of the machine and be seriously injured.
  • Page 33 GETTING STARTED 14.7 Working with stem extension (accessory) The stem extension only mounted when the drill is about 2.3 in the borehole. To change the drill and assemble the shaft extension engine and remove the spark plug - risk of injury! 1.

  • Page 34: Maintenance

    MAINTENA MAINTENANCE Wait machine regularly. only perform maintenance and repairs, which are described in the operating instructions. be installed by an authorized workshop all other work. DANGER When working on the machine – Switch off the engine – Wait for standstill of the drilling tool Remove spark plugs and remove the spark plug –...
  • Page 35 MAINTENANCE NOTE In an event. Redelivery of a machine for repair, please note that this must be sent for security of oil and gasoline free to the service center. 15.2 air filter Frequent cleaning of the air filter to prevent carburetor malfunction. The air filter about every 10 - Clean 20 hours.
  • Page 36 MAINTENA Version with foam filter insert: can clean the filter element in warm, soapy water, thoroughly rinse and dry. Dip the filter element in clean engine oil and squeeze out excess oil well. If too much oil remains in use, the engine will smoke on startup. 5.
  • Page 37 MAINTENANCE Replacing the spark plug • every 100 hours or 1 x per year • in case of damage of the insulator • in heavy electrode gap • at very dirty or oily electrodes. Use the following spark plug: F6RTC or F7RTC or other equivalent spark plug. 15.4 spark protection If the engine has been running, the muffler is hot - risk of burns! The...
  • Page 38 MAINTENA 15.5 Draining supplies Change the engine oil while the engine is still warm. Warm oil drains quickly and completely. WATCH OUT! Environmental damage. Supplies and materials contaminated with operating parts may not enter the drinking water supply. Dispose of the supplies as hazardous, even if it is only small amounts.
  • Page 39 TROUBLE • Make sure that the ventilation slots for motor cooling are free - danger of overheating! • Keep the cooling fins on the cylinder free of dust and dirt. 16. TROUBLE DANGER When working on the machine – Switch off the engine –...
  • Page 40 TROUBLE disorder root cause remedy Engine starts and • Incorrect carburetor setting • Contact authorized service dies immediately (Idle speed) • Wrong fuel Motor does not reach • Use fresh fuel RON 91 or the speed limit and / or higher is an unusual amount of •...

  • Page 41: Technical Data / Accessories

    TECHNICAL DATA / ACCESSORIES TECHNICAL SPECIFICATIONS Model EB-400pro drive motor Type 4-stroke engine XP140A for unleaded gasoline Capacity Max. Power P1 / P2 2.94 / 2.4 Max. Engine speed 3600 Idle speed 1600 Max. Drill speed Ignition Electronic ignition - CDI Fuel tank capacity: 0.75 Engine oil...
  • Page 42 WARRANTY LUMAG guarantees impeccable quality and will, without prejudice to statutory liability, in the case of material or manufacturing defects warranty. Which guarantee LUMAG products is 24 months for industrial or professional use or use or for rental for private use only;...

  • Page 43: Ec Declaration Of Conformity

    EC DECLARATION OF CONFORMITY Under the provisions of the EC directives – Electromagnetic compatibility 2004/108 / EC – Machinery Directive 2006/42 / EC explains the company: LUMAG GmbH Robert-Bosch-Ring 3 D-84375 Kirchdorf Phone: 0049 / (0) 8571/92 556-0 Fax: 0049 / (0) 8571/92 556-19...
  • Page 44 PARTS OF THE TOOL PARTS OF THE TOOL...
  • Page 45 NOTE...
  • Page 47 Robert-Bosch-Ring 3 D-84375 Kirchdorf Phone: +49 (0) 85 71/92 556 - 0 Fax: +49 (0) 85 71/92 556 - 19 www.lumag-maschinen.de Status: 08/2015 - EB400PRO_v1...
