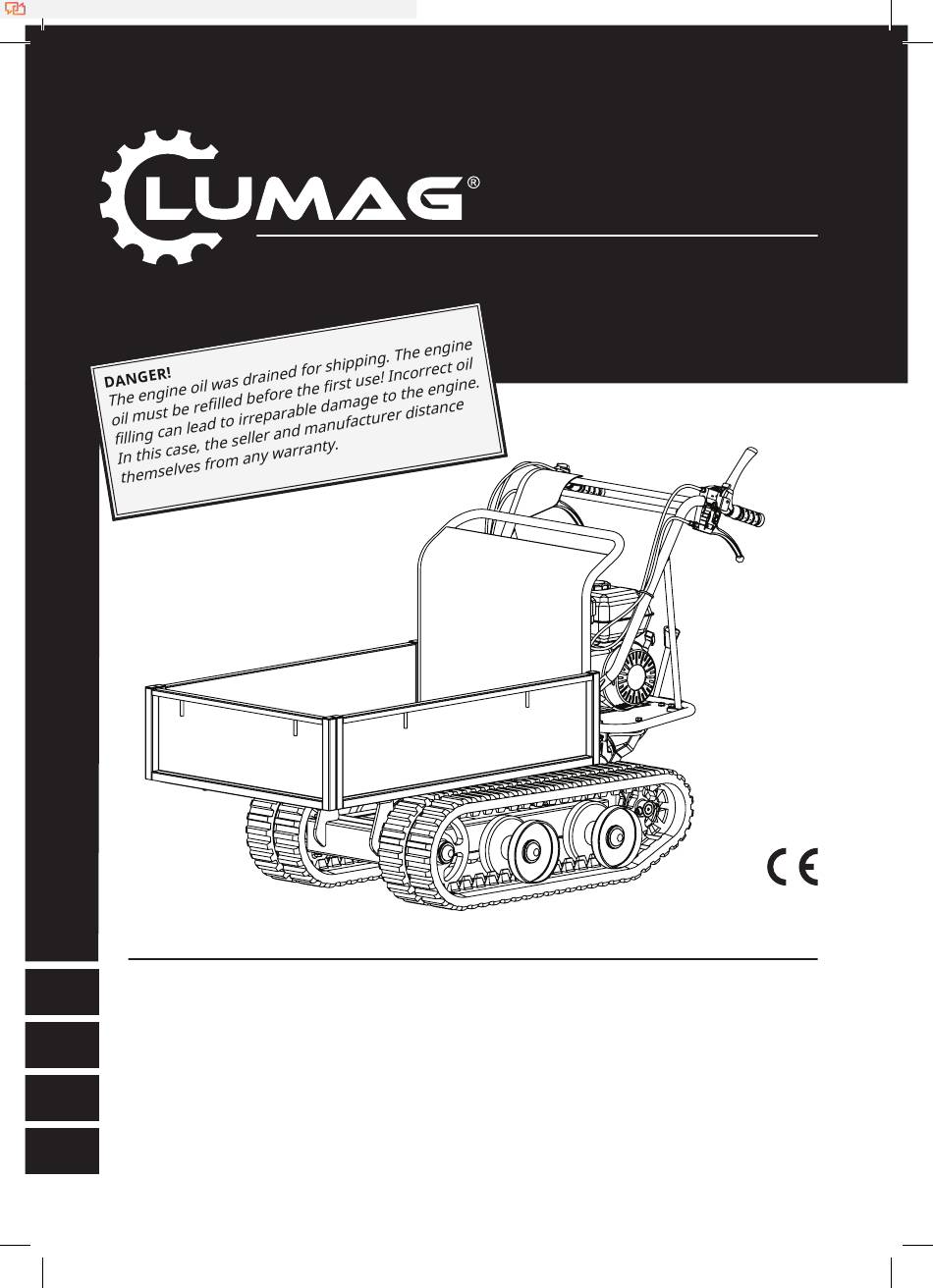

- Page 1 Translated from German to English - www.onlinedoctranslator.com MD-300 Art.No.: MD300 operating instructions mini crawler dumper MD-300 www.lumag-maschinen.de...
- Page 2 - improper use. The risk is borne solely by the user. Graphics, images, texts and layouts created by LUMAG GmbH are subject to copyright and the laws protecting intellectual property. Reproduction or use of such graphics, images, texts and layouts in other electronic or printed publications is not permitted without the express consent of LUMAG GmbH.
- Page 3 CONTENTS 1. Introduction 2. Intended use 3. Safety instructions 3.1 General safety rules 3.2 Work area 3.3 Personal safety 3.4 Fuel safety 3.5 Machine use and maintenance 3.6 Maintenance 3.7 Special safety rules 4. Warning and information symbols used 5th delivery 6.
- Page 4 Unlocking and tipping is done manually. The mini dumper is not approved for transporting people. Any use that does not comply with the above specifications is deemed to be improper. LUMAG GmbH will indemnify itself against the consequences of any claims resulting from non- compliance with these provisions.
- Page 5 SAFETY INSTRUCTIONS endanger people through improper use. The information concerning your personal safety is highlighted by a warning triangle; information concerning property damage alone is provided without a warning triangle. DANGER Failure to follow these instructions may result in serious danger to life or death. Failure to follow these instructions may result in death or serious injury.
- Page 6 SAFETY INSTRUCTIONS 3.2 Work area DANGER Internal combustion engines pose a particular danger during operation and when refueling. Always read and observe the warnings and the additional safety instructions listed further down in this manual. Failure to observe these instructions could result in serious or even fatal injuries.
- Page 7 SAFETY INSTRUCTIONS Make sure that all nuts, bolts, etc. are securely tightened. 4. Damaged protective devices and covers must be repaired or replaced as intended by an approved specialist workshop, unless otherwise stated in the operating instructions. 5. Moving parts must function properly and must not bind. All parts must be correctly fitted and meet all conditions to ensure the correct operation of the power tool.
- Page 8 SAFETY INSTRUCTIONS 2. Keep grounded, conductive objects, such as tools, away from exposed live parts and connections to avoid sparks and arcing. These events could ignite smoke or fumes. 3. Always stop the engine and allow it to cool before adding fuel. Never remove the fuel tank cap or add fuel when the engine is hot or running.
- Page 9 SAFETY INSTRUCTIONS 8. Use only attachments and accessories approved by the manufacturer. Failure to do so may result in injury. 9. Maintain the machine. Make sure that all moving and fixed parts are in the correct position, that there are no broken parts or other defects that could affect the smooth operation of the machine.
- Page 10 SAFETY INSTRUCTIONS would jeopardize the transfer. 3. Keep spectators, children and animals at least 22 meters away. If they approach, switch off the device immediately. 4. Do not climb onto the tipping container or transport anyone with it. 5. Never place the machine, especially when loaded, on unstable ground that could give way.
- Page 11 SYMBOLS USED 4. WARNING AND NOTE SYMBOLS USED A NOTICE The machine is delivered without engine oil. The first thing to do before using it for the first time is to fill it with engine oil. Failure to do so can lead to irreparable damage to the engine. DANGER Health and explosion hazards from combustion engines ■...
- Page 12 Risk of injury. Danger from rotating parts such as chain or drive belt. Keep hands and feet away. Protection and safety devices must not be removed or modified. NAMEPLATE MINI-TRACKED DUMPER MD-300 Model Equipped with model name, year of manufacture and serial number. Please Year of manufacture / Serial number Dimensions L/W/H (mm)
- Page 13 SCOPE OF DELIVERY 5. SCOPE OF DELIVERY The all-terrain mini dumper will be delivered to you partially assembled and in carefully packed packages. After removing all the parts from the package, you should have: Pre-assembled device unit handlebar assembly 16 238 tilt handle extendable side wall engine protection bar...
- Page 14 ASSEMBLY 6. ASSEMBLY Follow the instructions to assemble the machine in just a few minutes. Position the base plate into the mounting bracket. Align the holes with the mounting bracket. Insert the pin through the holes and 16 238 secure each side with a flat washer and a cotter pin Align the handlebar post holes with the mounting bracket, securing each hole with a...
- Page 15 ASSEMBLY Position the engine guard into the mounting bracket and align it with the mounting bracket holes. Secure the left side wall with two M8x30 screw heads, four washers and two nuts. A NOTICE Mount the tilt handle on the right side wall. Align the holes and secure with two M8x35 hex bolts, four washers and two nuts.
- Page 16 FUNCTIONS AND CONTROLS 7. FUNCTIONS AND CONTROLS engine switch throttle steering lever right clutch lever steering lever left tipping container gearshift tilt handle Chain gearbox engine switch The engine switch turns the ignition system on and off. The engine switch must be in the ON position for the engine to run. Turning the engine switch to the OFF position will turn the engine off.
- Page 17 FUNCTIONS AND CONTROLS OPERATION gearshift This lever controls the forward and backward movements of the machine. tilt handle The tilting handle controls the tilting of the tipping container. To raise the tipping container, the handle is pushed forward. To lower the container, the handle is pulled back to its original position.
- Page 18 OPERATION 8.2 Starting the engine A detailed description of engine operation and all related warnings and actions can be found in the separate engine manual supplied with the mini dumper. For cold starts, follow the procedure below: 1. Turn the choke lever on the engine to the full choke position. 2.
- Page 19 OPERATION / MAINTENANCE enters considerable inclines when driving over bumps, holes and steps. ■ When the clutch lever is released, the machine stops and brakes automatically. ■ If the machine is stopped on steep slopes, one of the chains must be secured with a wedge. A NOTICE The mini tracked dumper is not approved for use on public roads.
- Page 20 MAINTENANCE 9.1 Preventive maintenance Turn off the engine and release all control levers. The engine must be cold. Check the overall condition of the machine. Check for loose screws, misalignment or blockage of moving parts and other conditions that could affect safe operation. Remove all dirt and other substances from the chain and the machine.
- Page 21 MAINTENANCE 9.5 Tightening the chains With use, chains can become loose. Operating with loose chains can cause them to slip over the drive sprocket and cause them to jump out of its housing or stop working safely, potentially damaging the housing. To check that the chains are secure, proceed as follows: 1.
- Page 22 MAINTENANCE A NOTICE If the adjustment screw no longer allows further adjustment, the chains should be replaced. 5. Return the tipping container to its original position. 9.6 Replacing the chains Check the condition of the chains regularly. If a chain has broken or become fibrous, it should be replaced as soon as possible.
- Page 23 STORAGE / TRANSPORT 10. STORAGE DANGER Do not store the machine with fuel in an unventilated area where fuel vapors can come into contact with flames, sparks, pilot lights, or other sources of ignition. If the mini dumper is not used for more than 30 days, the following steps must be followed to store the device: 1.
- Page 24 TRANSPORT / ACCESSORIES ■ Always switch off the engine during transport! ■ Make sure that the loading area and side walls are secured. ■ Transport the device in a horizontal position to avoid fuel or oil leakage. ■ When transporting over long distances, the fuel tank must be completely emptied. ■...
- Page 25 TROUBLESHOOTING 13. TROUBLESHOOTING Caused remedy Disturbance Spark plug cable not Spark plug cable on the connected. Fasten the spark plug. Lack of fuel or old fuel. Fill with clean, fresh gasoline. Choke not in open For cold starting, move the throttle position.
- Page 26 TECHNICAL DATA 14. TECHNICAL DATA Model MD-300 drive motor 1 cylinder 4-stroke OHV engine 4.8 kW (at 3,600 rpm) engine power 196 cm³ displacement working speed gear 1 forward - 1.6 km/h gear 2 forward - 2.9 km/h gear 3 forward - 3.6 km/h...
- Page 27 LUMAG guarantees impeccable quality and, without prejudice to the statutory warranty, provides a guarantee in the event of material or manufacturing defects. The guarantee for LUMAG products is 24 months for exclusively private use, and 12 months for commercial or professional use or rental, from the date of delivery.
- Page 28 EC DECLARATION OF CONFORMITY 16. EC DECLARATION OF CONFORMITY In accordance with the provisions of the EC directives – Machinery Directive 2006/42/EC – Electromagnetic Compatibility 2004/108/EC the company explains: LUMAG GmbH Robert-Bosch-Ring 3 D-84375 Kirchdorf/Inn Phone: 0049 / (0)8571 / 92 556-0 Fax:...
- Page 29 COMPONENTS OF THE MACHINE 17. COMPONENTS OF THE MACHINE...
- Page 30 COMPONENTS OF THE MACHINE tipping container...
- Page 31 COMPONENTS OF THE MACHINE gearbox...
- Page 32 LUMAG GmbH Robert-Bosch-Ring 3 D-84375 Kirchdorf am Inn Telephone: +49 (0)85 71 / 92 556 - 0 Fax: + 49 (0)85 71 / 92 556 - 19...
