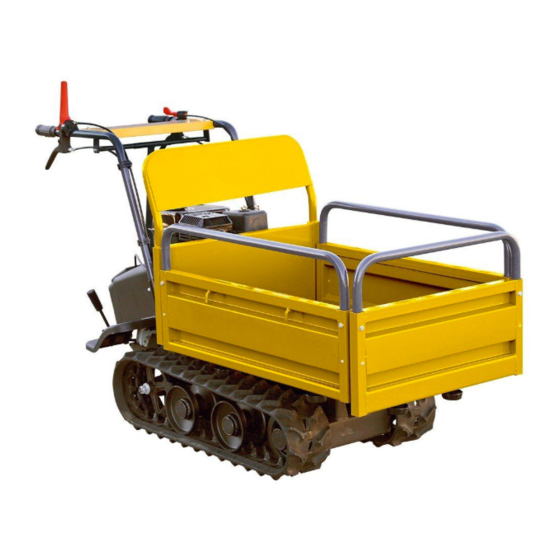

- Page 1 Distribution Limited Mini Dumper Operator’s Manual MD350/GX FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING THIS MACHINE...
- Page 3 For the warranty to be valid the Warranty Registration Form must be completed and returned to Lumag Distribution Limited within 14 days of the purchase, together with a copy of the purchase invoice. We will use your email to confirm that we have received the completed Warranty Registration Form and contact you about any errors or omissions on the form.
- Page 5 Clutch & Steering Handles Check Function 1 – First service only, 2 = Should be carried out by your Lumag Dealer, 3 = May need to be done more often in dusty areas & 4 = Replace paper element only...
- Page 9 MINI-TRANSPORTER MEC300S About the instructions Thanks for purchase from us. In order that you can operate our machine more safe, the instructions contains method for operating ,maintain and checking. Correctly operating method is on basis of reading and grasping. Warnings Forbid to operate, maintain and check the machine before read and mater the instructions Please safe-keep the instructions in order to operate, maintain and check the machine...
- Page 10 MINI-TRANSPORTER MEC300S About the warnings items in this instructions The instructions define warnings to below parts based on danger level(or accidents level) Please get understood for below warning items, and then operate the machine. item meaning dangers Very dangerous warning, without notice, may cause fatal accidents potential dangerous warning, without notice, may cause fatal warnings accidents...
-
Page 11: Table Of Contents
MINI-TRANSPORTER MEC300S CONTENTS 1. Safety instructions ................... 5 1.1 General Driving ................5 1.2 Driving on a Slope ................. 6 1.3 Loading and Driving with a Load ..........7 1.4 Parking ..................8 1.5 Servicing ..................9 2.About the nameplate information ............10 3. -
Page 12: Safety Instructions
MINI-TRANSPORTER MEC300S 1. Safety instructions This machine is intended for carrying grains, produce, dirt and similar materials. Carrying other objects may damage machine. Avoid carrying liquid concrete. That will damage machine. The stability of machine is affected by speed, rate of steering, terrain and load. Always pay close attention to these factors or loss of control or tipping over could occur, resulting in property damage, serious injury or death. -
Page 13: Driving On A Slope
MINI-TRANSPORTER MEC300S • Do not make sudden maneuvers. Sudden start, stop, or turn can make machine lose control and could cause a tip over. Be especially cautious when traveling on soft or wet ground. • On a slippery surface, travel slowly and exercise caution to reduce the chance of skidding or sliding out of control. -
Page 14: Loading And Driving With A Load
MINI-TRANSPORTER MEC300S slope. • Never drive on a slope that you are not comfortable with. Avoid a slope that is so rough, slippery, or loose that you feel like you could tip over. • When driving down a slope, stop and shift to one of the first three gears (auxiliary transmission in Low). -
Page 15: Parking
MINI-TRANSPORTER MEC300S • Place a load in loading deck so that the weight is evenly distributed. When carrying a load, strap it to loading deck to prevent it from shifting. Ensure that the load does not obstruct the operator's field of view. •... -
Page 16: Servicing
MINI-TRANSPORTER MEC300S 1.5 Servicing • Do not service machine when engine is running. If it is absolutely necessary to run engine while servicing, keep hands, feet, clothing and any part of the body away from any moving part, especially belts at the side of engine. -
Page 17: About The Nameplate Information
MINI-TRANSPORTER MEC300S About the nameplate information Please check the information of invoice, manufacturing No. on nameplate and engine brand and model No. Engine name and model No, please refer the instructions. nameplate position About the supplying period for spare parts The spare parts for the machine will not supply until the machine stop making for 7 years. -
Page 18: Every Spare Part Name And Function
MINI-TRANSPORTER MEC300S Every spare part name and function 1 walking clutch lever…………………control the machine to operate and stop 2 accelerating lever……………………to control the rotary speed for the engine 3 turning clutch lever………………………to control the machine for turning 4 gear lever………………………to control the speed while forward or reverse 5 sub-gear lever ………………………………to control the speed while walking 6 the fixed rod for bucket………………Fix the bucket, take out the rod when dumping, lift the bucket. -
Page 19: Driving And Operating
MINI-TRANSPORTER MEC300S 4. Driving and operating Warnings fuel-adding should be away from fire 4.1 Before driving preparations fuel-adding, should operate while the engine stops Fuel-adding, should not pour out the oil level, cautions for oil leak. clean 4.1.1 Check before working which pours out. -
Page 20: Ignition Method(Refer To Instructions)
MINI-TRANSPORTER MEC300S warnings Start the engine at ventilation area to avoid get poisoned 4.2 Ignition method(refer to instructions) start the engine after confirm safety background Make sure the clutch at the stop position before start the engine to avoid the cautions inter or dry and cold environment, please warm up before driving, if not ,will machine running to cause any accidents... -
Page 21: Driving Method
MINI-TRANSPORTER MEC300S Warnings o not close to the people around while driving make sure the safety affairs around, roads/slopes level before driving the machine n order to keep the speed. orbid sudden forward, sudden accelerating, sudden sharp turning, to avoid any kidding, turning over. -
Page 22: Speed Changing Method
MINI-TRANSPORTER MEC300S Warnings Warnings Forbid sudden parking, will easily cause machine turn over When changing the speed, should stop the machine Stop the machine in flat area without any potential dangers Changing the speed with right way, if not, will easily lead to stall off. 4.4 speed changing method Forbid to park in beveled level, if necessary, should fasten the wheels... -
Page 23: Maintain And Repair
MINI-TRANSPORTER MEC300S 5. Maintain and repair cautions Not in time maintenance is the main cause for accident. In order keep it in good state, please check and maintain the machine in time supply or change list period for recommended item supplying and capacity products... -
Page 24: Checking List
MINI-TRANSPORTER MEC300S 5.1checking list Aeriod ITEM 作业 月度 年度 Any obvious flawless ○ ○ ○ Whether the degree of relaxation and Belt ○ ○ ○ tension appropriate tension nut is deformation, corrosion ○ ○ ○ When walking, if there is a gear gear ○... -
Page 25: Walking Apparatus
MINI-TRANSPORTER MEC300S crawler The shaft body state is normal or not ○ ○ ○ Warnings driving Mounting bolt, nut is loose, fall off or not ○ ○ ○ wheel, the engine once maintain or repair tension Shaft surrounding leaks or not ○... -
Page 26: Track Check & Adjustment
MINI-TRANSPORTER MEC300S 5.3 Track check & adjustment Cautions t use the belt in the appropriate tension range, to avoid shedding, ten life etc.. Warnings Fixed the jack when adjusting to avoid falling down 5.3.1 checking Lift the machine to keep the same level with ground Confirm there’s... -
Page 27: Checking And Adjust For V Belt
MINI-TRANSPORTER MEC300S cautions pe belt slip, please adjust the belt tensioner pulley tension, otherwise 5.4 Checking and adjust for V belt ll shorten the service life 5.4.1 Checking Take out the plastic cover Check the V belt, please contact the sales if any damage Put on the plastic cover 5.4.2 Adjustment 【1】... -
Page 28: Checking And Adjusting For Brake Apparatus
MINI-TRANSPORTER MEC300S Warnings 5.5 Checking and adjusting for brake Do running adjustment if any problem for brake apparatus apparatus 5.5.1 Checking Take off the plastic cover Put the walking clutch rod to Stop the machine position Make sure the spring length A is between 185-190mm, adjust if there is any inappropriate. -
Page 29: Turning Clutch Adjustment
MINI-TRANSPORTER MEC300S Tighten nut 2 Put on plastic cover 5.6 Turning clutch adjustment Take the cargo container, and fix it with the supporting frame. Adjust the adjusting nut, and make turning clutch handle to have 1-5mm empty space. Put off the cargo container. Sheet 22 of 25 OPERATING AND MAINTENANCE INSTRUCTIONS... -
Page 30: Troubleshooting
Caution MINI-TRANSPORTER MEC300S When this machine has problem, please stop using it and do some proper treatment. Troubleshooting 6.1 Walking apparatus Put walking clutch rod to Walking position, and it still can not start the machine. 1.1 Check and see if the transmission gear shifting is at its appropriate position. 1.2 V type belt is too loose, and adjust V type belt 1.3 Brake is dead, and adjust brake to its best position. -
Page 31: Technical Data
MINI-TRANSPORTER MEC300S 7. Technical data Name and model 7B-320A Weight Rated loading capacity Length 1620 Width Height Dimensi Track length on ground Track distance from the center Cargo container bottom plate height Length Inner dimension Width Cargo Height container dumping method manual dumping angle degree... - Page 32 MINI-TRANSPORTER MEC300S Spark plug model F7（R）TC Forward 1 Km/h Forward 2 Km/h Forward 3 Km/h Forward 4 Km/h Walking Walking speed Forward 5 Km/h performa Forward 6 Km/h Backward 1 Km/h Backward 2 Km/h Minimum turning radius 1.15 Climbing ability degree Brake style Hub brake...
- Page 33 Distribution Limited PART DRAWINGS FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING THIS MACHINE...
- Page 34 MD350_MD350GX...
- Page 40 Unit 10, Hatchmoor Industrial Estate, Hatherleigh, Okehampton, Devon EX20 3LP www.lumag-gb.co.uk 01837 811741 Lumag Distribution Limited Company Number: 09267547 VAT Number: GB154566788 Hatherleigh Plant and Tool Hire is a trading name of Lumag Distribution LTD...
