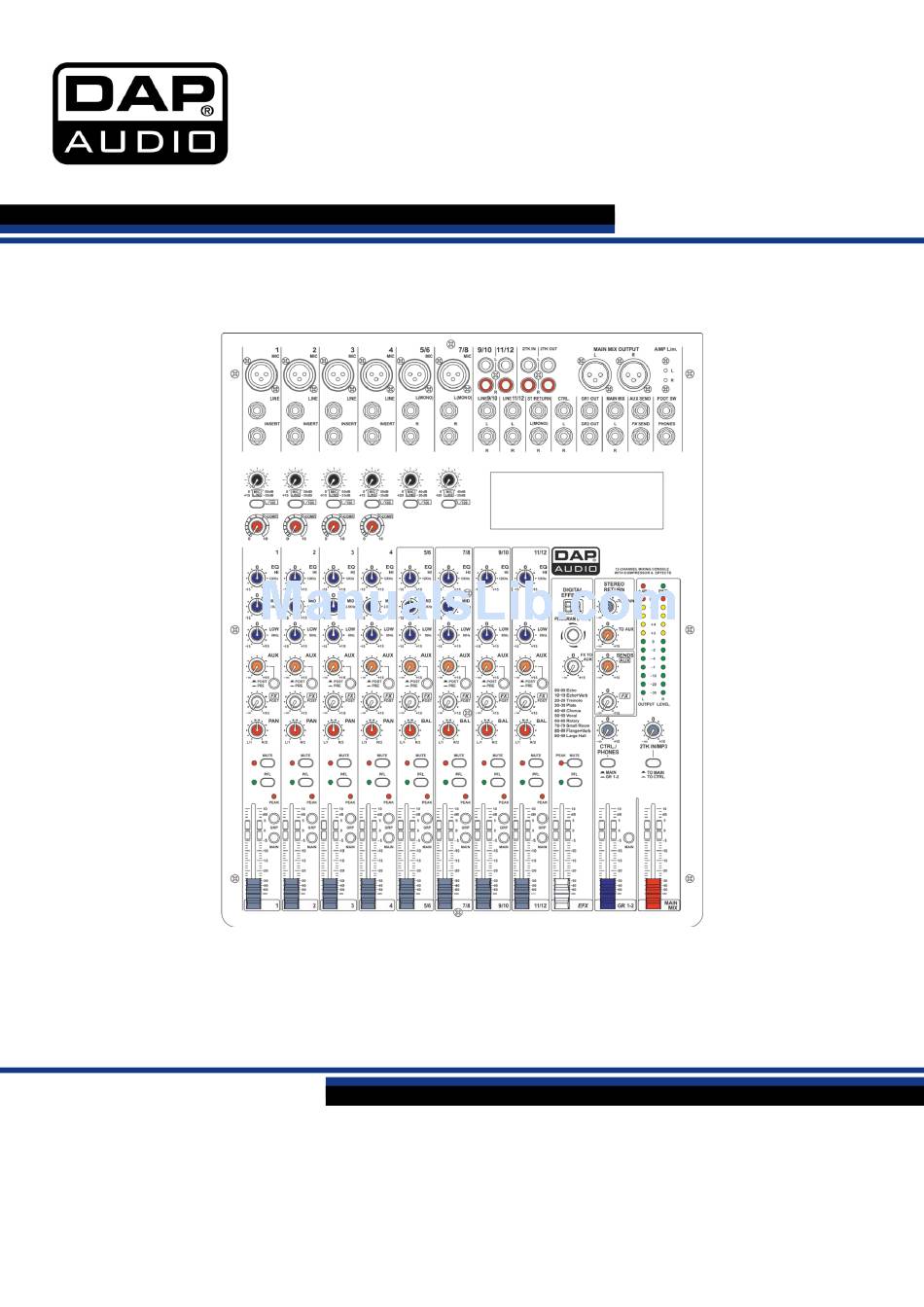

- Page 1 MANUAL ENGLISH GIG-1000CFX Ordercode: D2286 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Option Two - SMP-R (Ordercode: D2291).......................15 Option Three - Bluetooth Version 2.1 (Ordercode: D2292) .................16 Installation and connection ............................18 Connection Cables .................................19 Block Diagram .................................21 Preset List GIG-1000CFX ..............................22 Maintenance ..................................23 Replacing the Fuse ..............................23 Troubleshooting ................................23 Product Specifications ..............................24... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: GIG-1000CFX mixing console • 3-pin IEC power cable (1,5 m) •... -
Page 4: Operating Determinations
GIG-1000CFX Never let the power cord come into contact with other cables! Handle the power cord and all • connections with the mains with particular caution! Never remove warning or informative labels from the unit. • Never use anything to cover the ground contact. -
Page 5: Connection With The Mains
GIG-1000CFX It is possible to mount the GIG-1000CFX by means of the 19-inch mounting rack (Ordercode: D2296) 01) Remove the screws on the bottomside. 02) Firmly push the side covers sidewards to separate them from the GIG-1000CFX. 03) Secure the 19-inch mounting rack (D2296) in position with the 4 included screws. -
Page 6: Return Procedure
GIG-1000CFX Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device
• Overview Installation Remove all packing materials from the GIG-1000CFX. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 8: Names And Functions
GIG-1000CFX Names and Functions MIC INPUT JACKS (CHs 1 to 7/8) The balanced XLR input connects to microphones, DI boxes and multicores. LINE INPUT JACKS (CHs 1 to 4) This is a ¼" jack connector which connects to line-level signal sources (for example, keyboards, CD players and wireless microphone receivers). - Page 9 GIG-1000CFX EQUALIZER The high-frequency range is processed with a shelving filter above 12 kHz. You can boost or cut the bands up to 15 dB. When in center position (0 dB), the equalizer has a flat response. The HIGH MID control adjusts the mid frequency range. This is a peak filter which boosts and cuts the frequencies centered at 2,5 kHz.
- Page 10 GIG-1000CFX Each channel is equipped with a GRP switch, which allows you to feed multiple channels to a stereo mixdown. The volume level can be adjusted using the LEVEL fader. MAIN Each channel is equipped with a MAIN switch, pressing this button will send the signal to the MAIN MIX bus.
- Page 11 GIG-1000CFX This is the master FX control for adjusting the volume of all FX send signals at the input of the built-in effect processor. AUX SEND The Master AUX SEND control adjusts the signal volume level of the respective aux send connector.
- Page 12 GIG-1000CFX MAIN MIX OUTPUT The MAIN MIX outputs are balanced XLR connectors - 1/4" TRS sockets and provide the main mix signal. FOOT SWITCH This connector is used to connect an external foot switch. It has the same function as the FX MUTE switch.
- Page 13 GIG-1000CFX Ordercode: D2286...
-
Page 14: Modules
GIG-1000CFX Modules Option One - SMP-S (Ordercode: D2290) The file system should be FAT16 or FAT32. This player can only decode MP3. It has 7 rank subordinate folders at most. USB port: Allows the connection of any USB flash drive. - Page 15 GIG-1000CFX Operation Instruction for Media Player Module When no USB flash drive is inserted, the display will show Fig. 01 (see below). Insert a USB flash drive, the USB player starts searching and the display shows "Searching". At the end of the search, the display will show the menu as shown in Fig.
-
Page 16: Option Two - Smp-R (Ordercode: D2291)
GIG-1000CFX Option Two - SMP-R (Ordercode: D2291) The file system of USB memory for USB players is FAT16 and FAT32 and these players can only decode MP3. It has 7 rank subordinate folders at most. USB port: Allows the connection of any USB flash drive. -
Page 17: Option Three - Bluetooth Version 2.1 (Ordercode: D2292)
GIG-1000CFX Option Three - Bluetooth Version 2.1 (Ordercode: D2292) Can be paired with mobile phones, tablets or PC Bluetooth adapters to play stereo audio. DISPLAY These two LEDs are used to display different working states: 01) For the first time that the module is powered on, it is in stand-by state and the right LED flashes twice about 2 seconds. - Page 18 GIG-1000CFX IEC POWER CONNECTOR 100-240VAC + Fuse T6,3AL/250V Before connecting the unit to the mains, ensure that the voltage setting matches your local voltage. Blown fuses should only be replaced by fuses of the same type and rating. To disconnect the unit from the mains, pull out the main cord plug.
-
Page 19: Installation And Connection
GIG-1000CFX Installation and connection At this point you are in a position to successfully operate your GIG-1000CFX Mixing Console. However, we advise you to carefully read the following section to be a real master of your own mixer. Not paying enough attention to the input signal level, to the routing of the signal and the assignment of the signal will result in unwanted distortion, a corrupted signal or no sound at all. -
Page 20: Connection Cables
GIG-1000CFX Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. - Page 21 GIG-1000CFX Unbalanced Balanced Ordercode: D2286...
-
Page 22: Block Diagram
GIG-1000CFX Block Diagram Ordercode: D2286... -
Page 23: Preset List Gig-1000Cfx
GIG-1000CFX Preset List GIG-1000CFX Preset Description Parameter Reproduce the sound input on the output after 00~09 Echo Delay Time : 145~205ms a lapse of time or delay. Delay Time : 208~650ms 10~19 Echo + Verb Echo with Room effect. Decay time : 1.7~2.1s... -
Page 24: Maintenance
GIG-1000CFX Maintenance The DAP Audio GIG-1000CFX requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 25: Product Specifications
GIG-1000CFX Product Specifications MODEL: GIG-1000CFX mixing console Mono channels Microphone input: XLR balanced Frequency response: 10Hz to 55KHz,+/-3dB Distortion(THD+N): <0.03% at +0dB ,22Hz~22KHz A-weighted Gain range: 0dB to 50dB Max. Input: +15 dB LOW CUT: 100Hz SNR: <-100dBr A-weighted Phantom power:... - Page 26 GIG-1000CFX AUX range: OFF to +15dB Fader range: OFF to +10dB PHONES/CONTROL-ROOM range: OFF to +15dB <-80dB@20Hz~22KHz A-weighted 1 channel & MAIN level:0dB,the Hum & Noise: other :minimum <-80dB@0dB 20Hz~22KHz A-weighted MAIN level:0dB, the other Crosstalk: :minimum Power supply Main voltage:...
- Page 27 GIG-1000CFX Ordercode: D2286...
- Page 28 ©2015 DAP Audio...
