IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

Part List

A.
Top Unit
1 pc.
D.
Stretcher
1 pc.

Hardware List

Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
5180-16

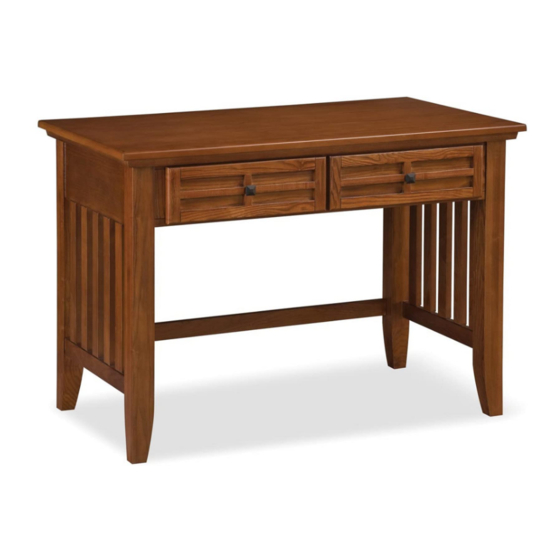

Student Desk
Spring Washer
Flat Washer
8 pcs. (+1 extra)
8 pcs. (+1 extra)
B.
Side Frame
1 pc.
M3x32
Wood Screw
2 pcs. (+1 extra)
888-680-7460, 877-831-0319
C.
Side Frame
1 pc.
M8x50
Bolt
8 pcs. (+1 extra)
